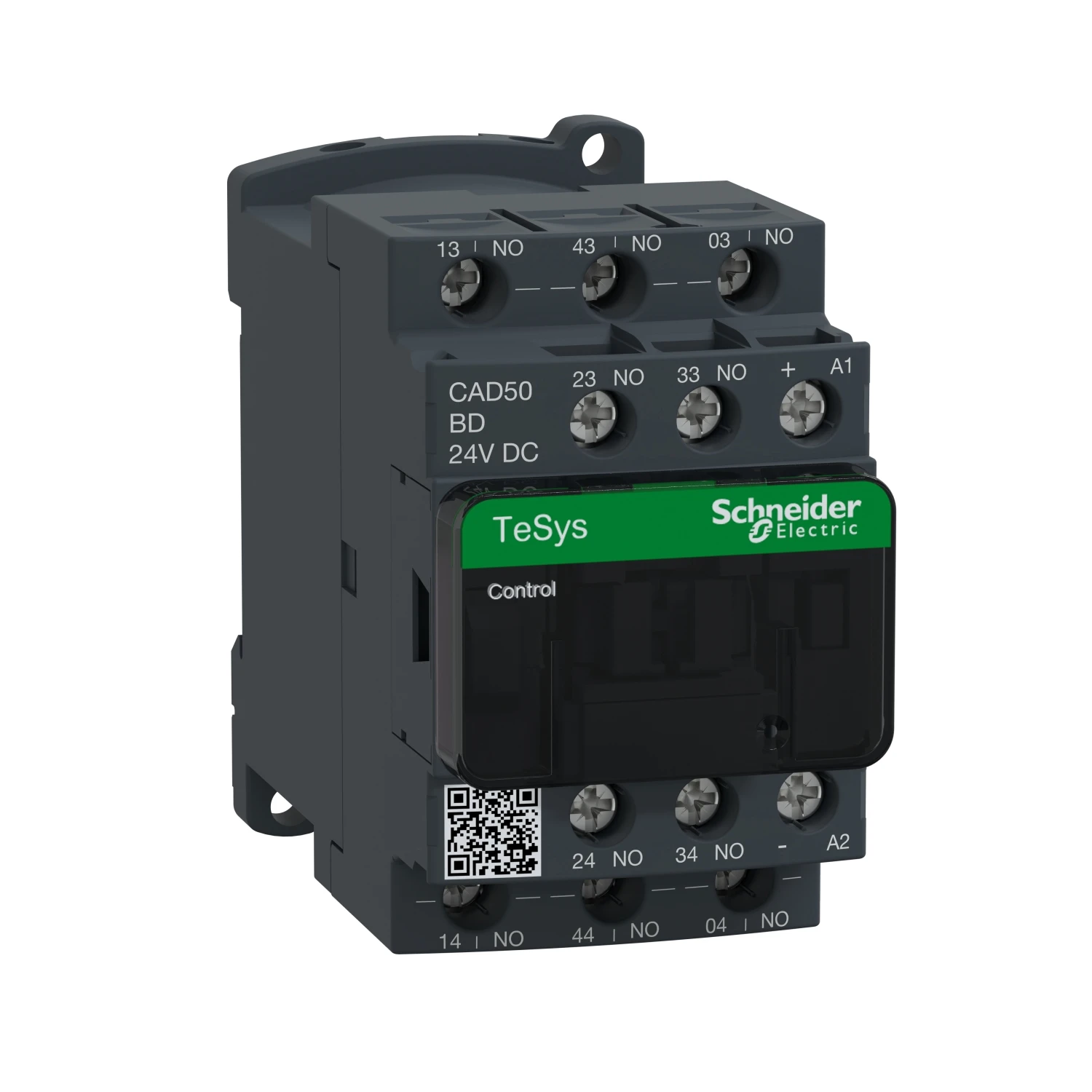

Schneider Electric TeSys D 24V DC Control Relay 5NO Standard Coil

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · · TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Screw clamp terminals: 1 to 4mm² · · It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Mechanical durability: 30 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · Tightening torque: 1.2Nm · · Ambient operating temperature: -40°C to 70°C · · IP2x Degree of protection (front face)
