Schneider Electric TeSys D 80A Contactor 3NO 240V AC Coil with Protective Cover
Schneider Electric TeSys D 80A Contactor 3NO 240V AC Coil with Protective Cover

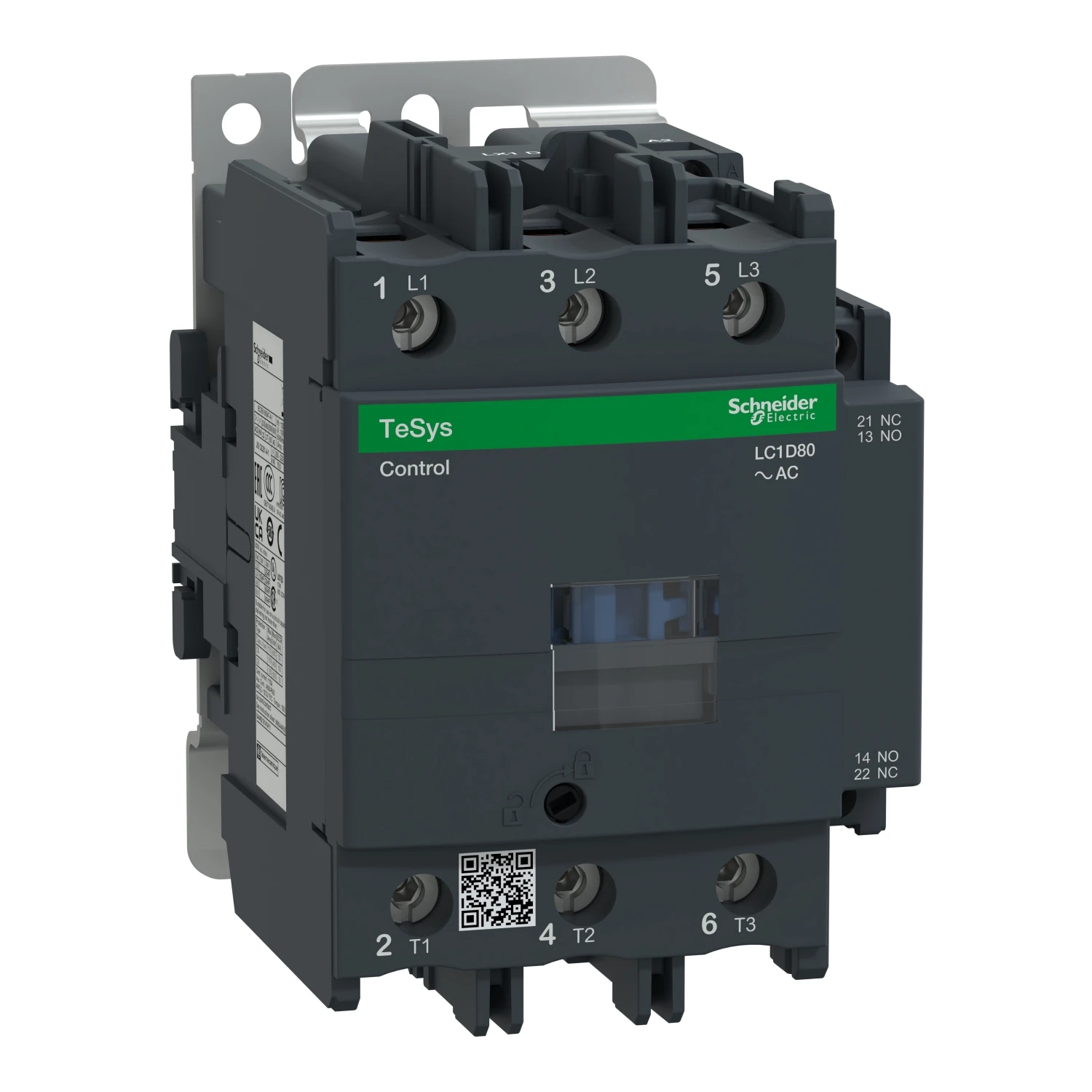

Schneider Electric TeSys D 80A Contactor 3NO 240V AC Coil with Protective Cover - Image 2

Schneider Electric TeSys D 80A Contactor 3NO 240V AC Coil with Protective Cover

£357.38 Incl. VAT

TeSys Deca contactor, 3P(3NO) for category AC-3/AC-3e applications up to 80A @440V. It provides with 240V 50 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 10 Mcycles mechanical durability and 1.5 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 85mm x 130mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,GOST,BV,RINA,DNV,LROS,GL) and Green Premium compliant (RoHs/Reach). · · · Mounting support: Plate/Rail · · Screw clamp terminals: 1 to 4mm² · · System voltage: <= 690V AC (25-400Hz) · · Conventional free air thermal current: 10 – 125A · · Motor power: 15 – 55kW · · Mechanical durability: 4 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Tightening torque: 1.2 – 9Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D80U5 Categories: , Brand: Product Code: 2500091125

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 37 kW Rated operation power NEMA – kW Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-4, 400 V 32 A Rated operation power at AC-4, 400 V 15 kW Rated operation current Ie at AC-3, 400 V 80 A Rated operation current Ie at AC-1, 400 V 125 A Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 50 Hz 240 – 240 V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC – – – V Modular version No · Technical Data Sheet – Click to Download
