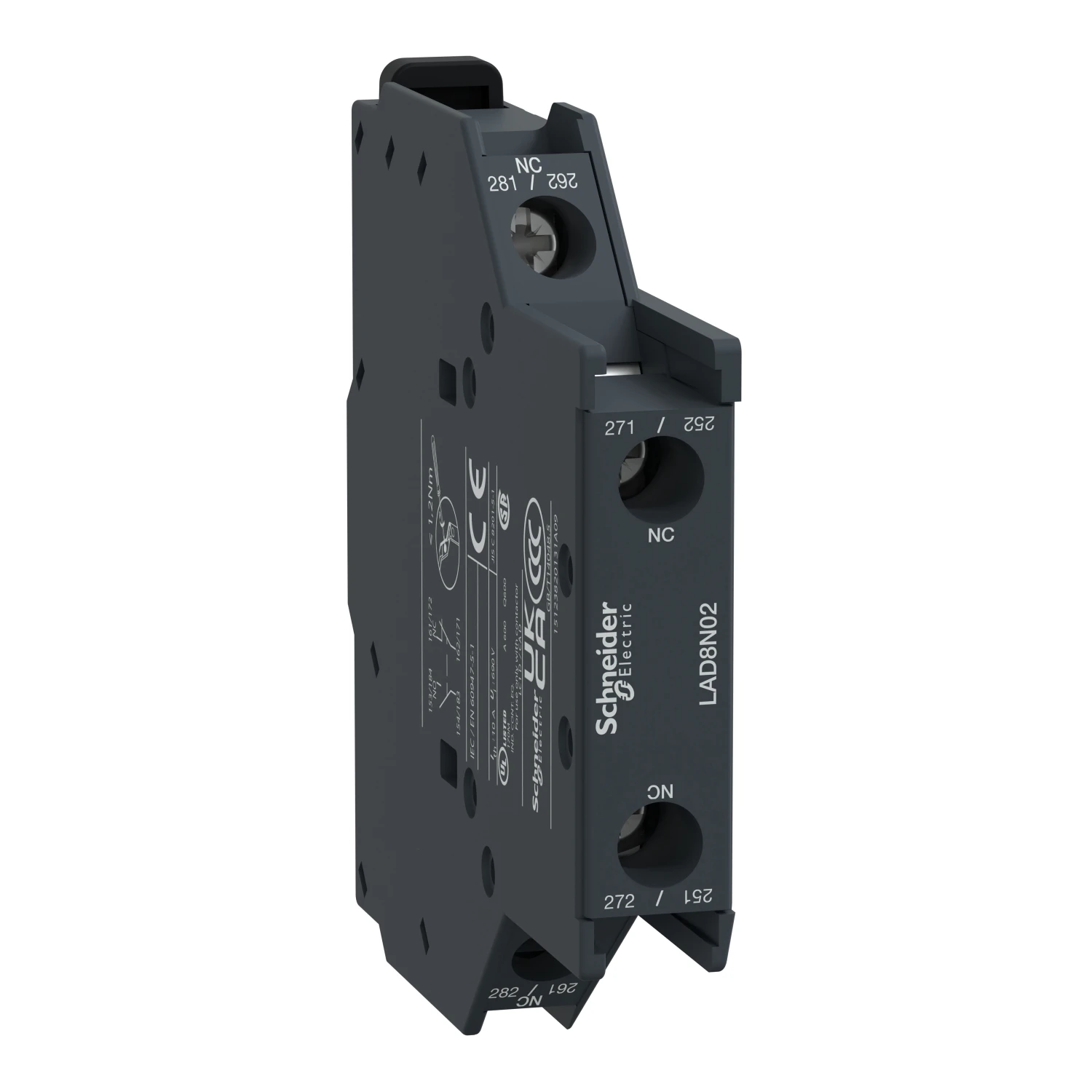

Schneider Electric Tesys D Auxiliary Contact Block 2 NC Screw Clamp Terminals

TeSys D, auxiliary contact block, 2 NC, screw clamp terminals. range of product: TeSys D, TeSys D control relay – range: TeSys – device short name: LA1 – product or component type: auxiliary contact block – pole contact composition: 2 NC – connections – terminals: screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – without cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – with cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – without cable end. · · · TeSys D instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. · · It provides 2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. · · Clip-on side mounting, it procures high reliability and durability. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
