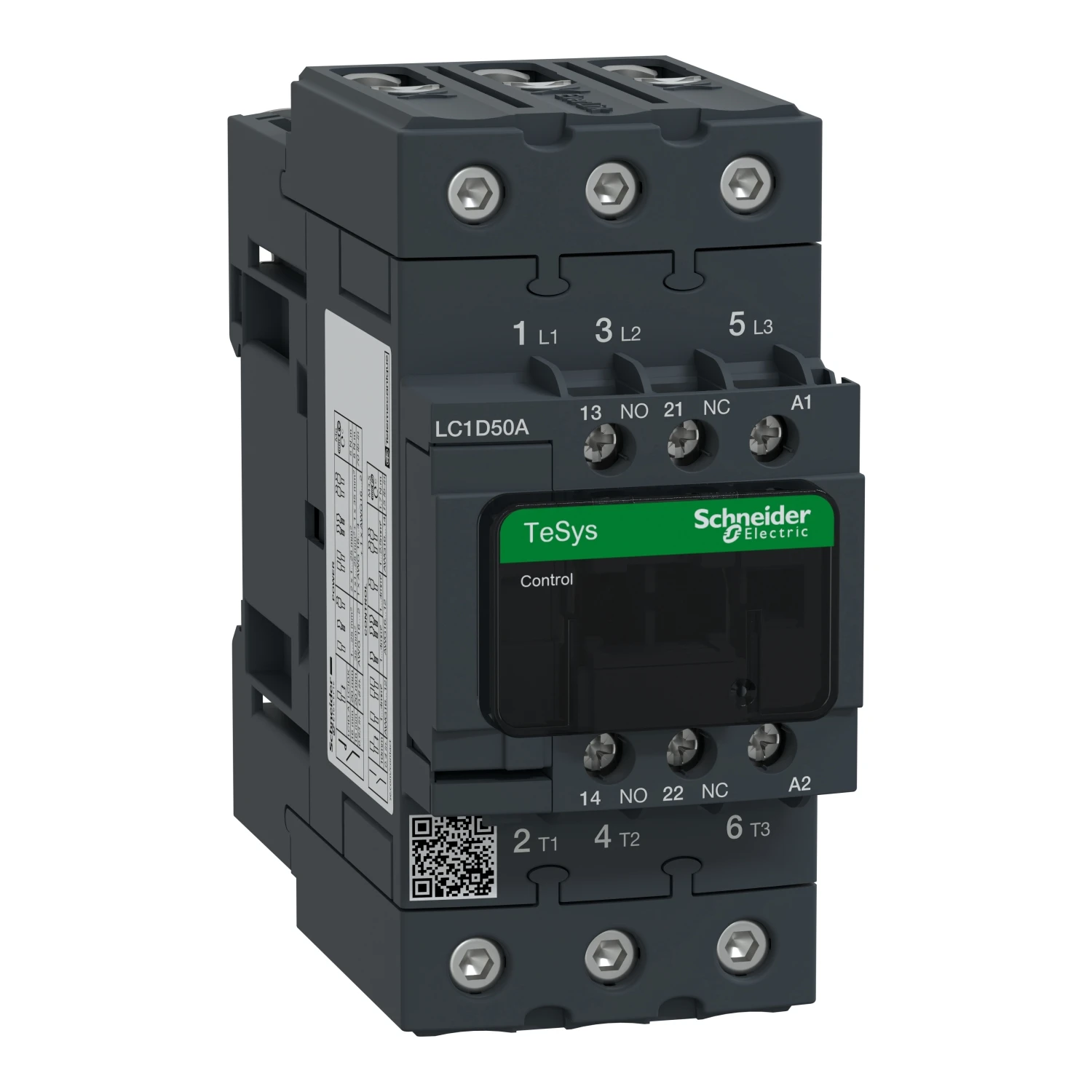

Schneider Electric TeSys D Contactor 3-Pole (3NO) AC-3 440V 50A 415V AC 50/60Hz Coil
£203.51 Incl. VAT
TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/440V AC-3/3e (22kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · Height: 122mm · · Number of Poles: 3 · · Range: TeSys D · · Width: 55mm · · AC3 Rating: 50A · · Coil voltage: 415V AC · · Weight: 855g · · AC1 Rating: 80A · · Depth: 120mm · · Normal State Configuration: 3NO (Main), 1NO + 1NC (Auxiliary)
Out of Stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 22.00 kW Number of main contacts as normally open contact 3.00 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V 25.00 A Rated operation power at AC-4, 400 V 11.00 kW Rated operation current Ie at AC-3, 400 V 50.00 A Rated operation current Ie at AC-1, 400 V 80.00 A Number of auxiliary contacts as normally closed contact 1.00 Number of auxiliary contacts as normally open contact 1.00 Rated control supply voltage at AC 50 Hz 415.00 – 415.00 V Rated control supply voltage at DC – – – V Modular version No Rated control supply voltage at AC 60 Hz 415.00 – 415.00 V · Technical Data Sheet – Click to Download
