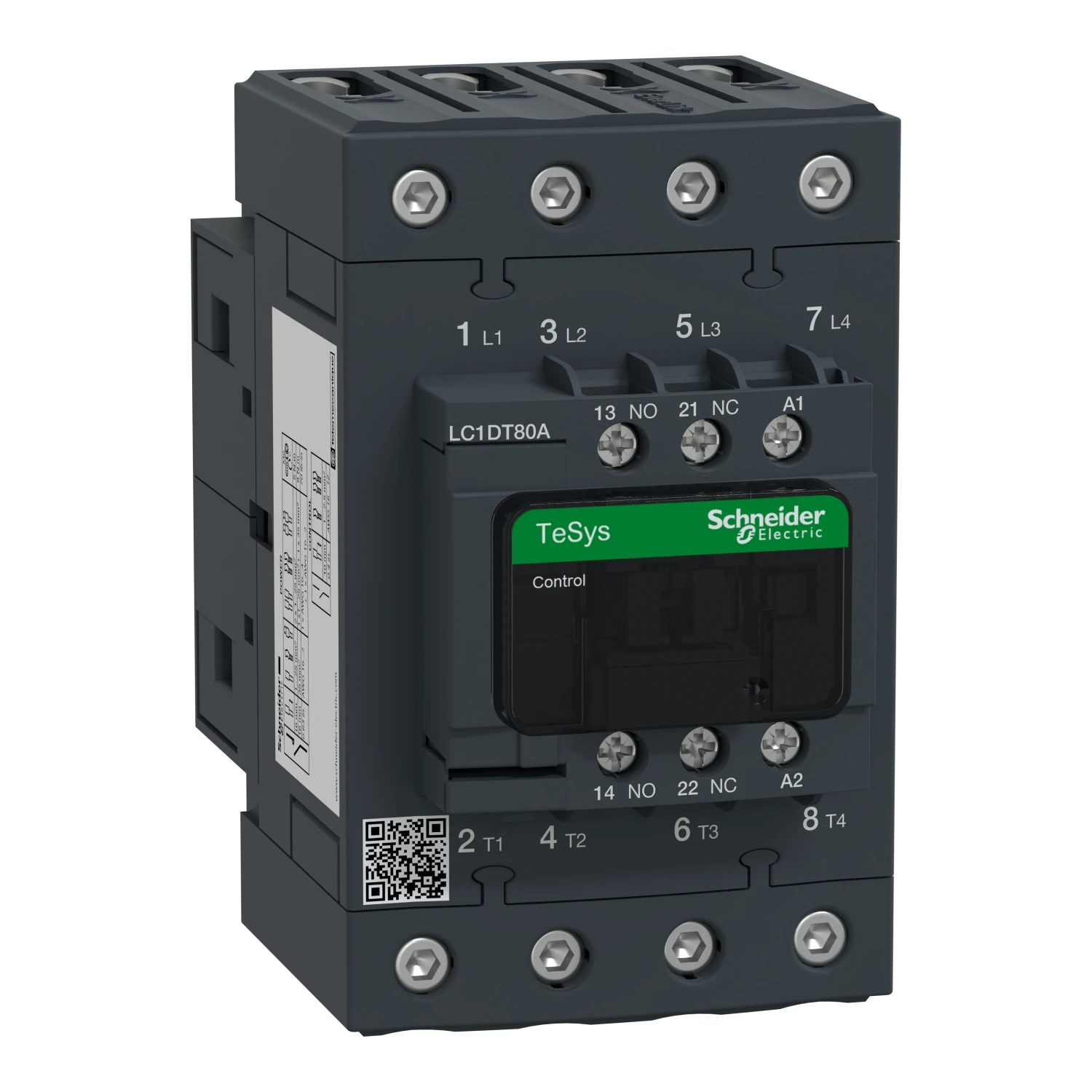

Schneider Electric TeSys D Contactor 4-Pole (4NO) AC-1 440V 80A 110V AC 50/60Hz Coil
Schneider Electric TeSys D Contactor 4-Pole (4NO) AC-1 440V 80A 110V AC 50/60Hz Coil
Schneider Electric TeSys D Contactor 4-Pole (4NO) AC-1 440V 80A 110V AC 50/60Hz Coil - Image 2

Schneider Electric TeSys D Contactor 4-Pole (4NO) AC-1 440V 80A 110V AC 50/60Hz Coil

£343.73 Incl. VAT

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 80A/690V AC-1. · · Number of Poles: 4P · · It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors and control by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (70mm width), DIN-rail mounting or screw fixing. · · Depth: 120mm · · Normal State Configuration: 4 No

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1DT80AF7 Categories: , , Brand: Product Code: 2500286017

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 4.00 Rated operation power at AC-3, 400 V – kW Number of normally closed contacts as main contact 0.00 Rated operation current Ie at AC-4, 400 V – A Rated operation current Ie at AC-1, 400 V 80.00 A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V – A Number of auxiliary contacts as normally closed contact 1.00 Number of auxiliary contacts as normally open contact 1.00 Rated operation power NEMA – kW Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 110.00 – 110.00 V Rated control supply voltage at AC 60 Hz 110.00 – 110.00 V Modular version No · Technical Data Sheet – Click to Download
