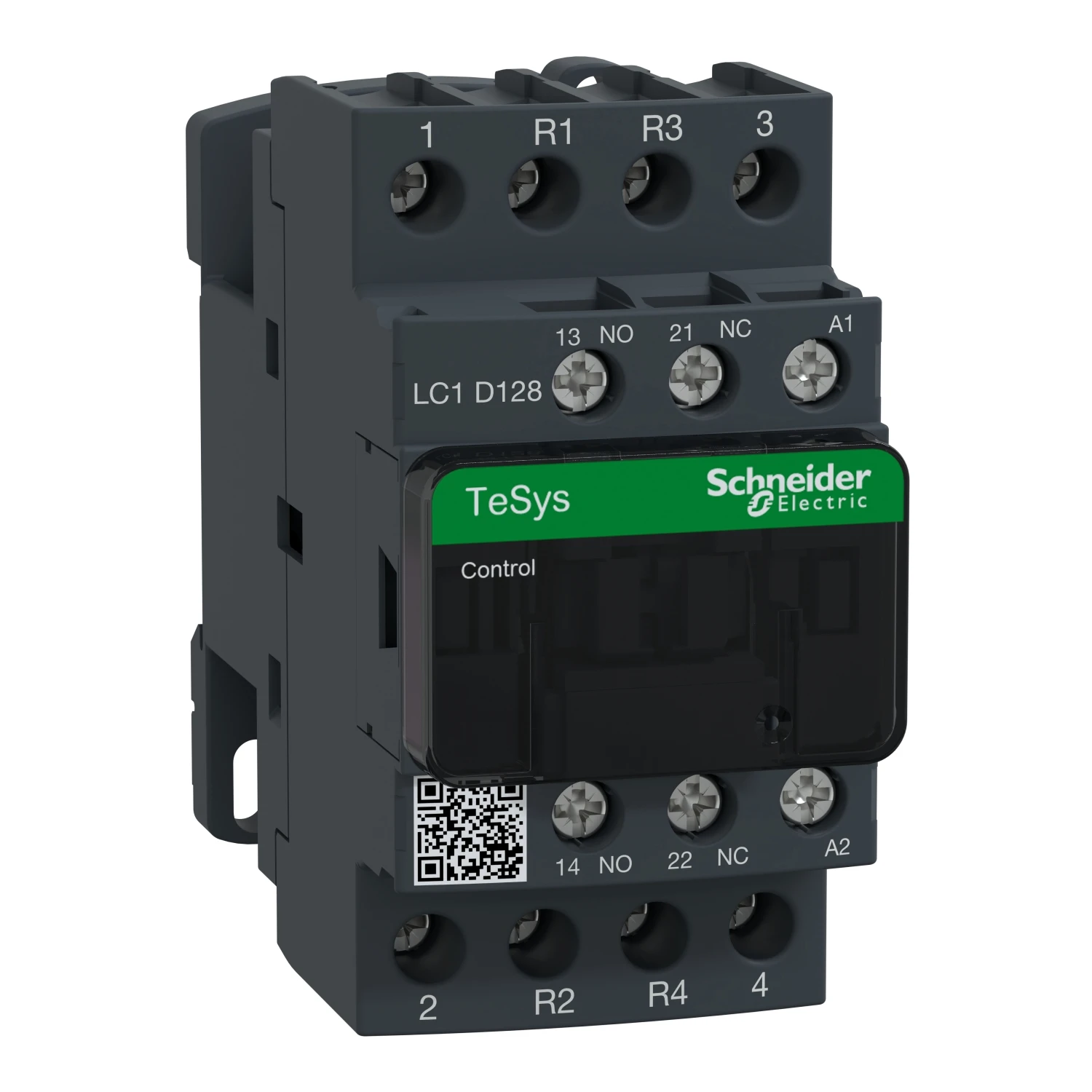

Schneider Electric Tesys D Contactor 4P (2 NO + 2 NC) AC-1 <= 440V 25A 48V AC Coil
Schneider Electric Tesys D Contactor 4P (2 NO + 2 NC) AC-1 <= 440V 25A 48V AC Coil
Schneider Electric Tesys D Contactor 4P (2 NO + 2 NC) AC-1 <= 440V 25A 48V AC Coil - Image 2

Schneider Electric Tesys D Contactor 4P (2 NO + 2 NC) AC-1 <= 440V 25A 48V AC Coil

£68.26 Incl. VAT

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. · · Number of Poles: 4P · · It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Depth: 92mm · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D128E7 Categories: , , , , , Brand: Product Code: 2500149071

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 2 Rated operation power at AC-3, 400 V – kW Number of main contacts as normally open contact 2 Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V – A Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 48 – 48 V Rated control supply voltage at AC 60 Hz 48 – 48 V Modular version No Rated operation current Ie at AC-1, 400 V 25 A Number of auxiliary contacts as normally closed contact 1 · Technical Data Sheet – Click to Download
