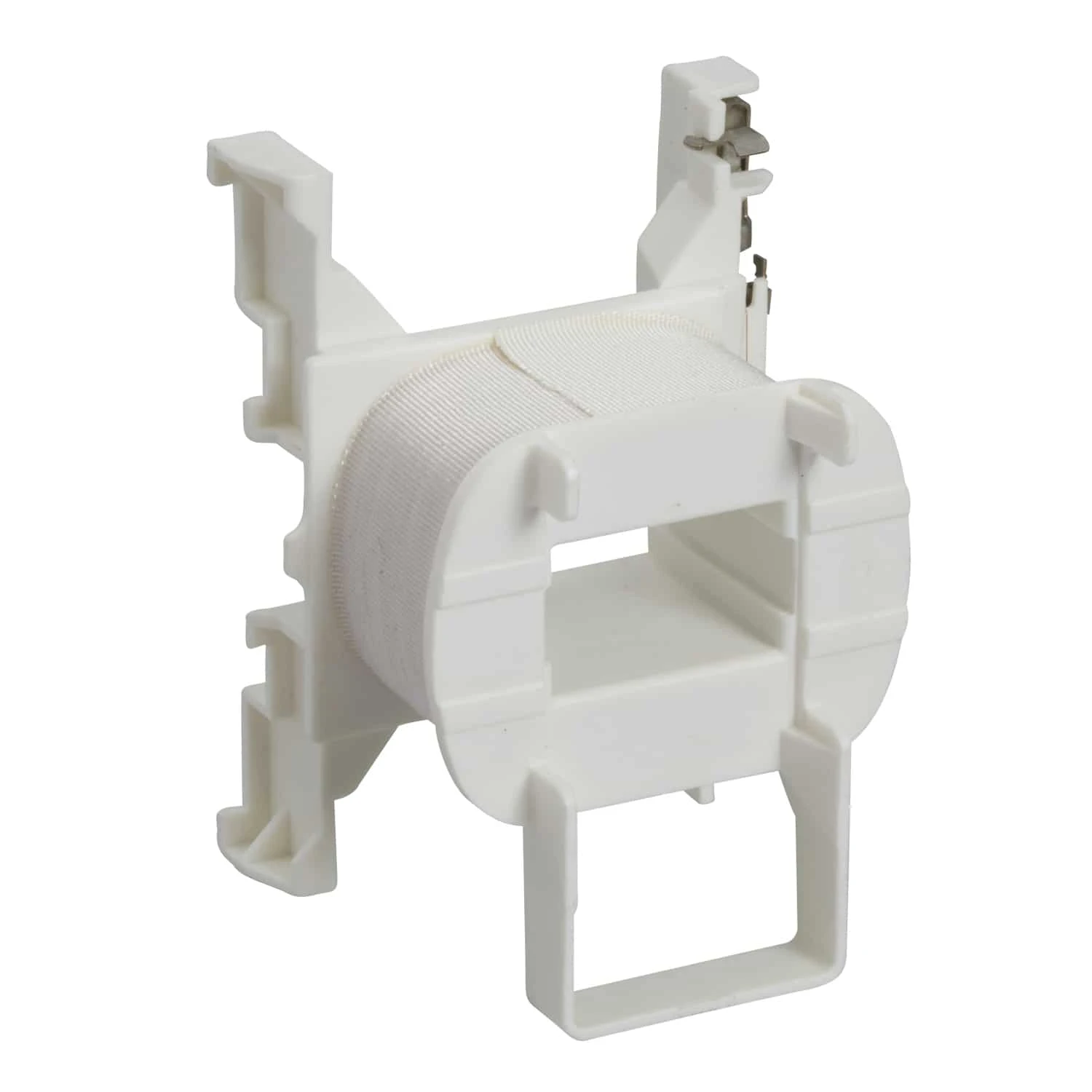

Schneider Electric Tesys D Contactor Coil Lxd1 48V AC 50/60Hz for 9-38A Contactor
£40.96 Incl. VAT
TeSys D, contactor coil, LXD1, 48 V AC 50/60 Hz for 9… 38A contactor. range: TeSys – product or component type: contactor coil – device short name: LXD1 – inductance of closed circuit: 0.87 H – product compatibility: CAD, LC1D09…D38, LC1DT20…DT40 – mechanical durability: 15 Mcycles. · · · TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors. · · To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. · · It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C
Out of Stock
Description
Technical Specifications Technical Specifications Coil for relay Rated control supply voltage at AC 50 Hz 48.00 – 48.00 V Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 48.00 – 48.00 V · Technical Data Sheet – Click to Download
