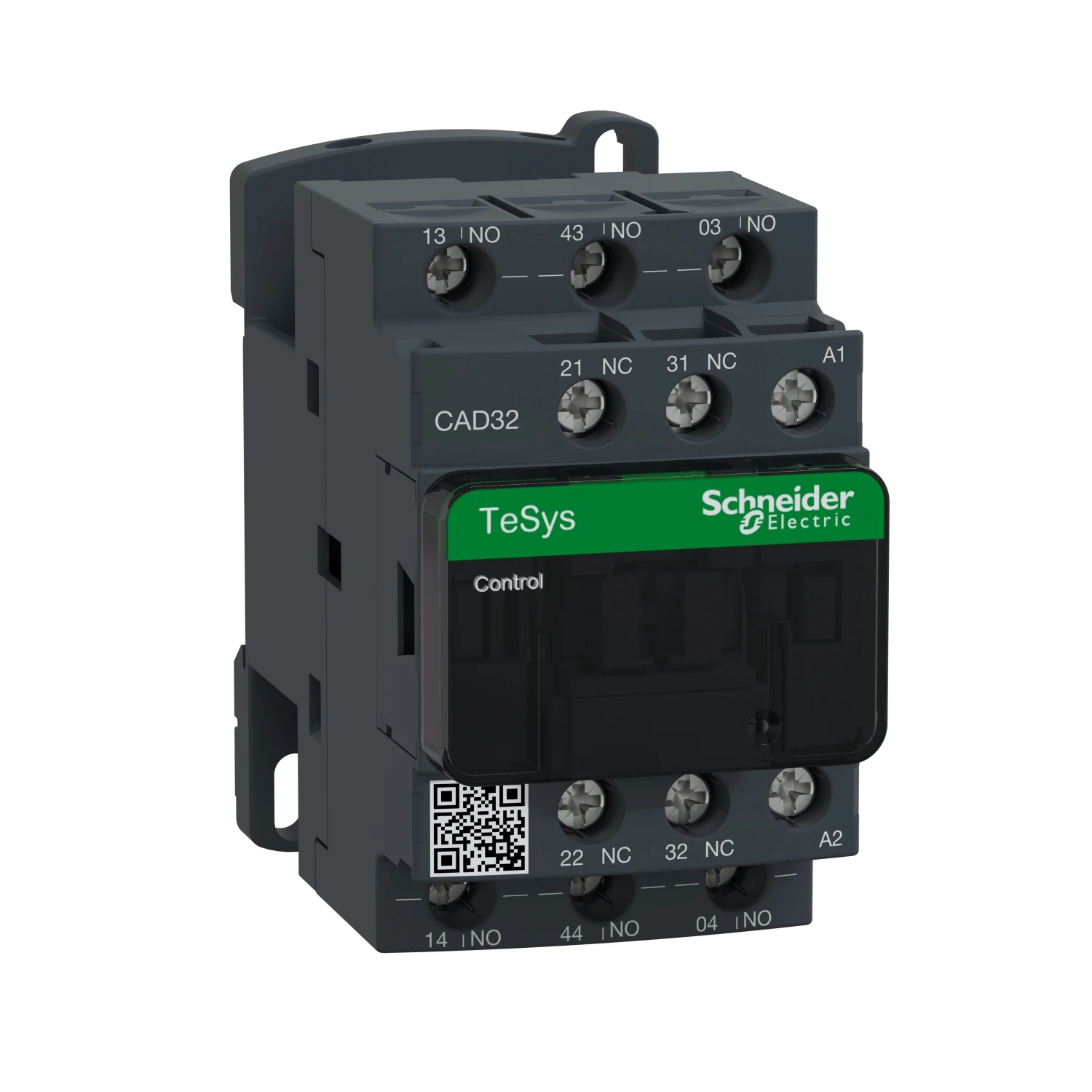

Schneider Electric Tesys D Control Relay 3 NO + 2 NC <= 690V 48V AC Standard Coil
Schneider Electric Tesys D Control Relay 3 NO + 2 NC <= 690V 48V AC Standard Coil
Schneider Electric Tesys D Control Relay 3 NO + 2 NC <= 690V 48V AC Standard Coil - Image 2

Schneider Electric Tesys D Control Relay 3 NO + 2 NC <= 690V 48V AC Standard Coil

£50.88 Incl. VAT

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · · TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Range: Tesys D Control Relay · · It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Normal State Configuration: 3 No + 2 Nc

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CAD32E7 Category: Brand: Product Code: 2500090074

Description

Technical Specifications  Technical Specifications Contactor relay Number of auxiliary contacts as normally closed contact 2.00 Number of auxiliary contacts as change-over contact 0.00 Number of auxiliary contacts as normally open contact 3.00 Rated operation current Ie, 400 V 10.00 A Number of auxiliary contacts as normally closed contact, delayed switching 0.00 Number of auxiliary contacts as normally open contact, leading 0.00 Rated control supply voltage at AC 50 Hz 48.00 – 48.00 V Rated control supply voltage at DC – – – V Interface No Rated control supply voltage at AC 60 Hz 48.00 – 48.00 V With LED indication No · Technical Data Sheet – Click to Download
