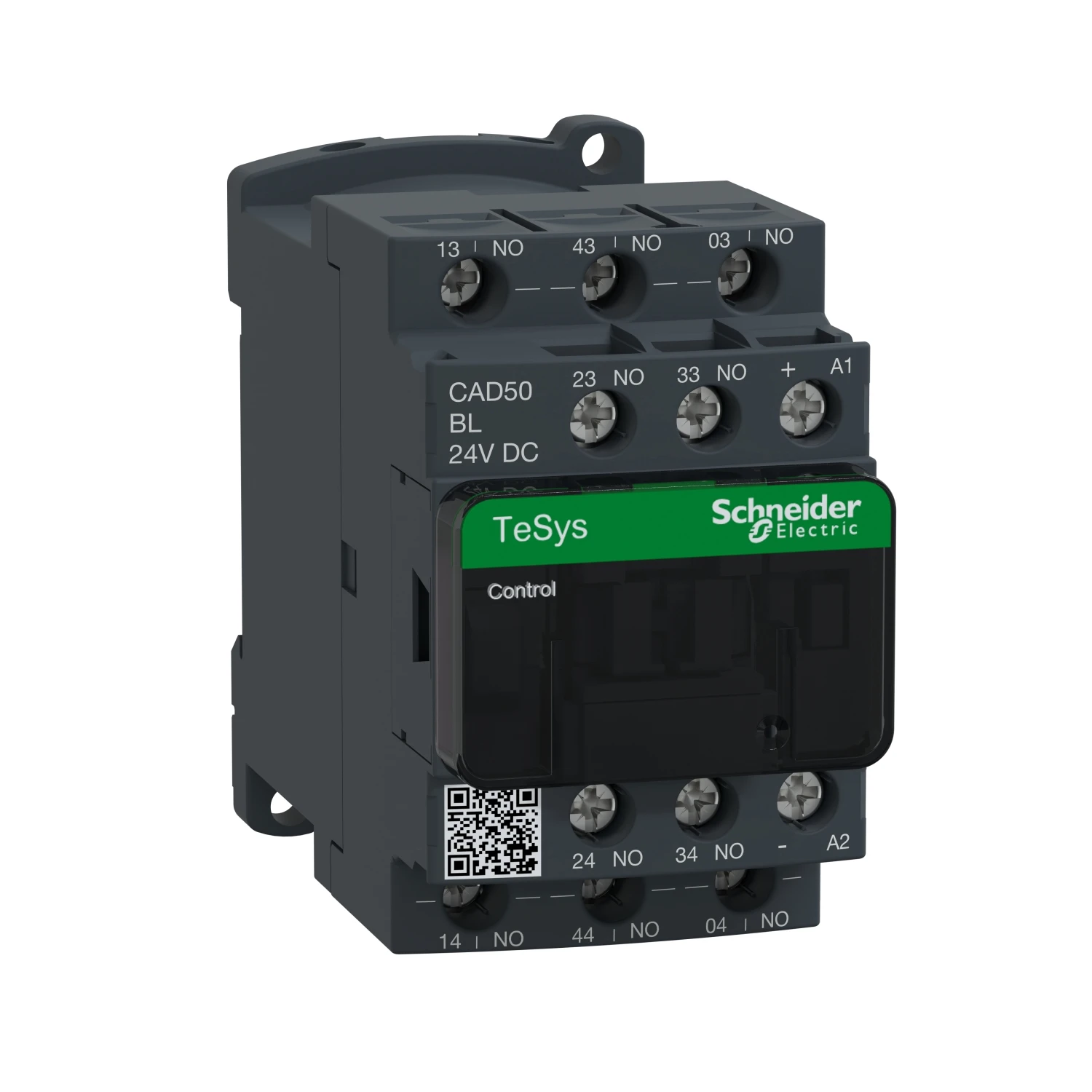

Schneider Electric Tesys D Control Relay 5 NO <= 690V 24V DC Low Consumption Coil
Schneider Electric Tesys D Control Relay 5 NO <= 690V 24V DC Low Consumption Coil
Schneider Electric Tesys D Control Relay 5 NO <= 690V 24V DC Low Consumption Coil - Image 2

Schneider Electric Tesys D Control Relay 5 NO <= 690V 24V DC Low Consumption Coil

£67.01 Incl. VAT

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). · · · TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Range: Tesys D Control Relay · · It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Normal State Configuration: 5 No · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CAD50BL Category: Brand: Product Code: 2500090518

Description

Technical Specifications  Technical Specifications Contactor relay Rated operation current Ie, 400 V 10 A Number of auxiliary contacts as normally closed contact, delayed switching 0 Number of auxiliary contacts as normally open contact, leading 0 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 5 Number of auxiliary contacts as normally closed contact 0 Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at AC 50 Hz – – – V With LED indication No Rated control supply voltage at DC 24 – 24 V Interface No · Technical Data Sheet – Click to Download
