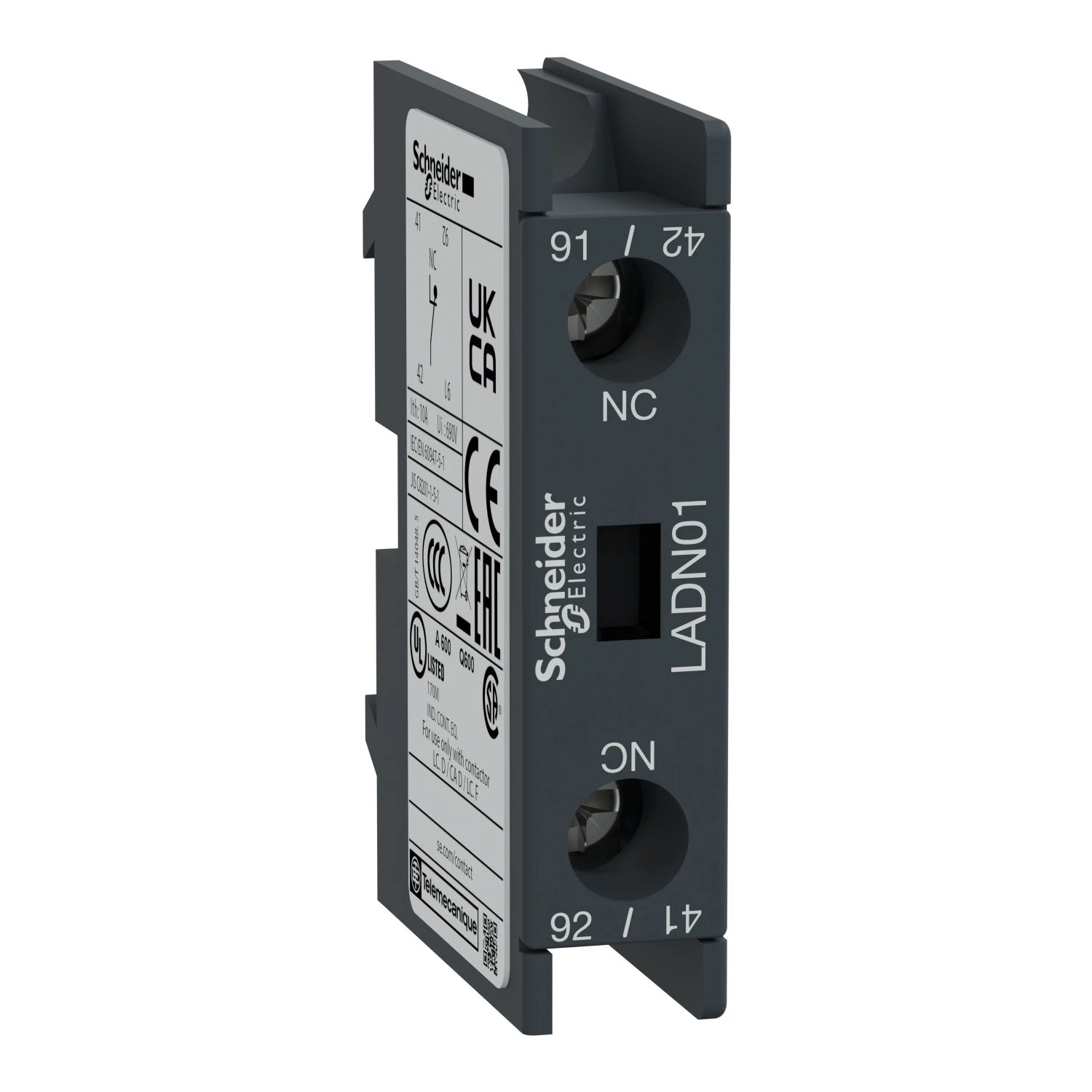

Schneider Electric TeSys D Instantaneous Auxiliary Contact Block 1NC Front Mounting
Schneider Electric TeSys D Instantaneous Auxiliary Contact Block 1NC Front Mounting
Schneider Electric TeSys D Instantaneous Auxiliary Contact Block 1NC Front Mounting - Image 2

Schneider Electric TeSys D Instantaneous Auxiliary Contact Block 1NC Front Mounting

£12.41 Incl. VAT

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. · · It provides 1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. · · Clip-on front mounting, it procures high reliability and durability. · · System voltage: <= 690V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 30 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LADN01 Categories: , Brand: Product Code: 2500088805

Description

Technical Specifications  Technical Specifications Auxiliary contact block Number of fault-signal switches 0.00 Number of contacts as change-over contact 0.00 Number of contacts as normally closed contact 1.00 Rated operation current Ie at AC-15, 230 V 10.00 A Number of contacts as normally open contact 0.00 · Technical Data Sheet – Click to Download
