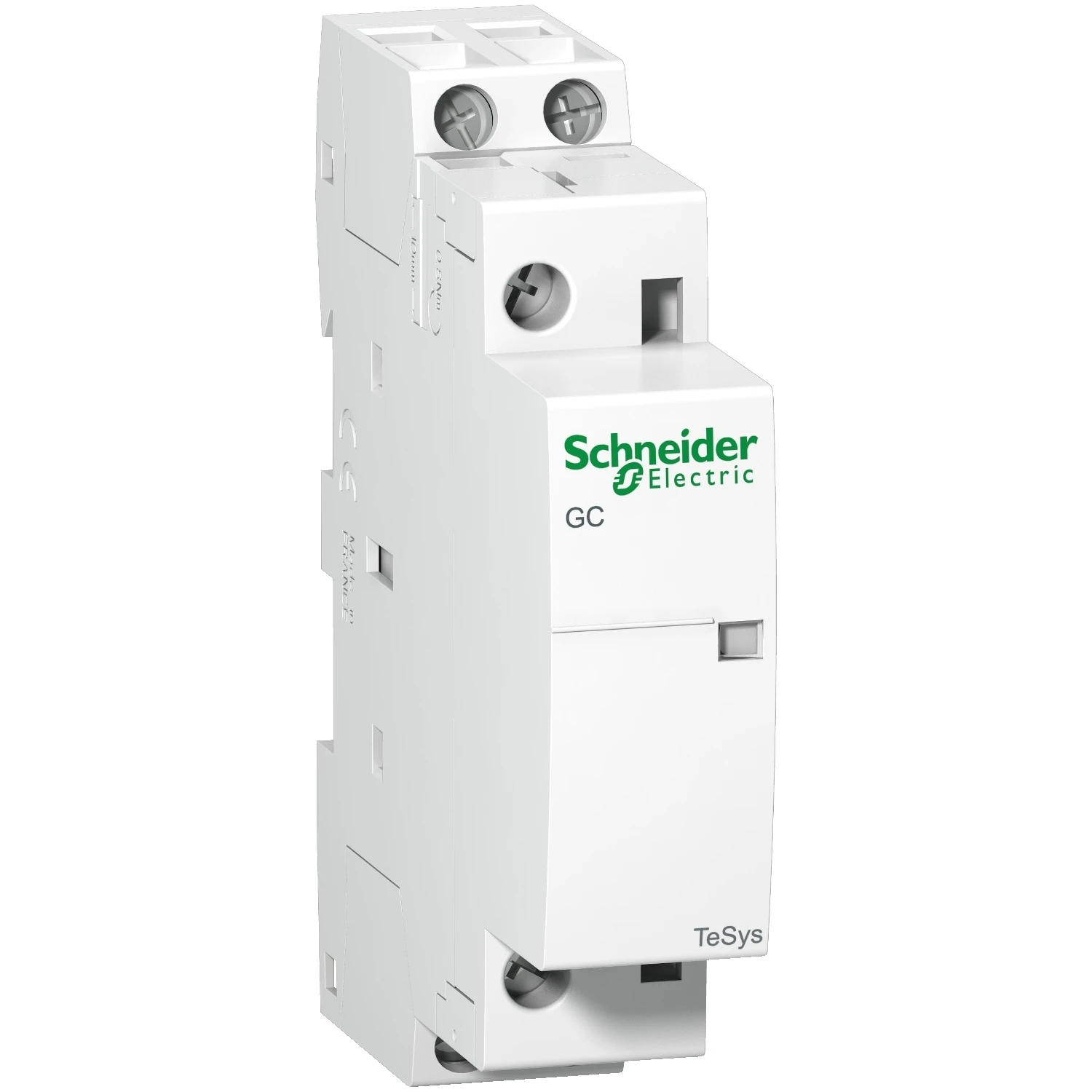

Schneider Electric Tesys GC Modular Contactor 16A 1 NO + 1 NC Coil 220-240V AC
£53.82 Incl. VAT
TeSys GC modular contactor, 2 poles (1NO+1NC), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 2 poles (1NO+1NC), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 12 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Depth: 60mm · · Normal State Configuration: 1 No + 1 Nc
Out of Stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Number of contacts as normally open contact 1.00 Number of contacts as normally closed contact 1.00 Max. load fluorescent lamp 650.00 VA Max. load fluorescent lamp (parallel compensated) 600.00 VA Max. load fluorescent lamp (Duo circuit) 800.00 VA Max. incandescent lamp load 1800.00 W Rated operation current 16.00 A Rated operating voltage 0.00 – 250.00 V Recess depth 62.50 mm Slider for hand switch No Rated excitation voltage 220.00 – 240.00 V Additional equipment possible Yes · Technical Data Sheet – Click to Download
