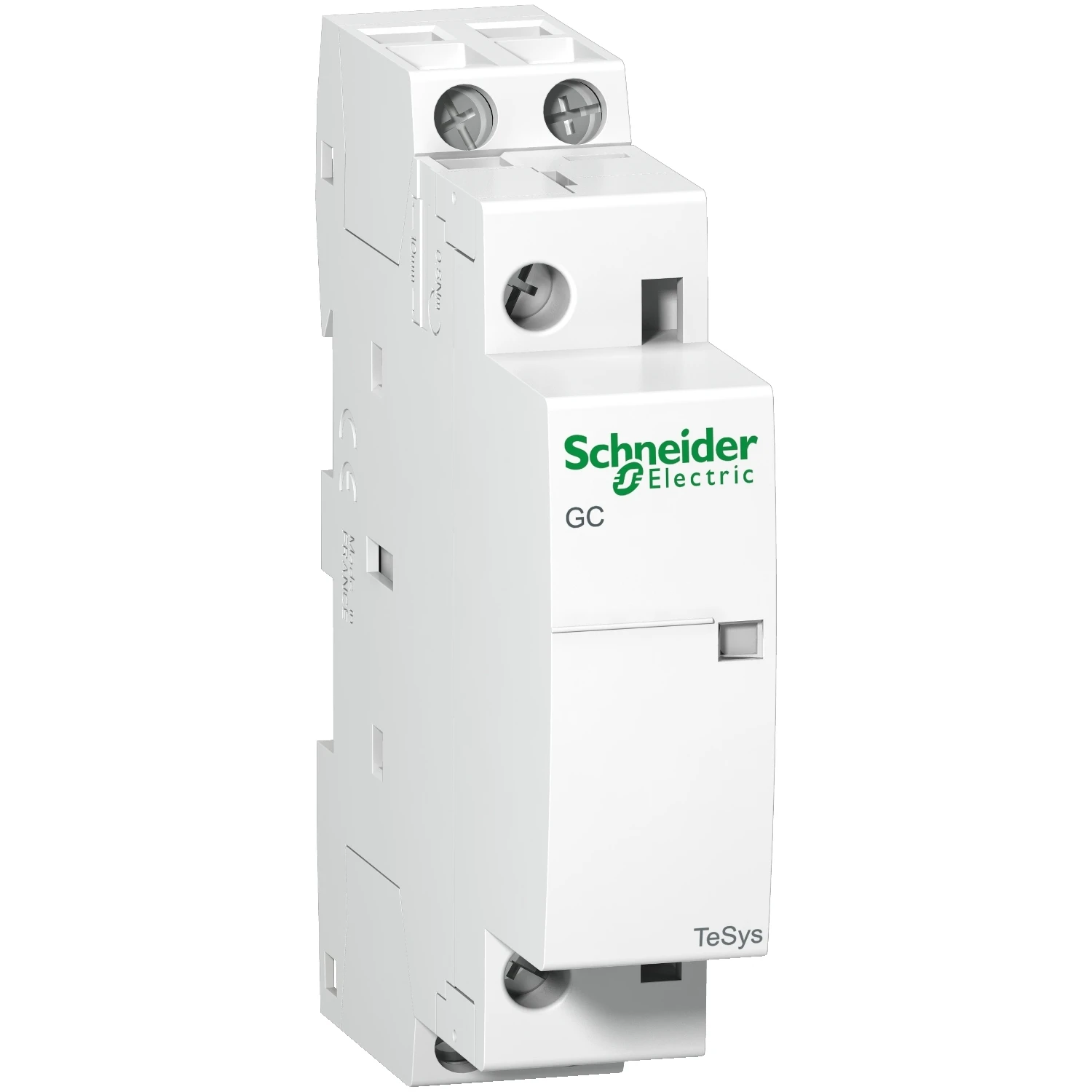

Schneider Electric TeSys GC, modular contactor, 16A, 2 NO, coil 110 V AC
Schneider Electric TeSys GC, modular contactor, 16A, 2 NO, coil 110 V AC
Schneider Electric TeSys GC, modular contactor, 16A, 2 NO, coil 110 V AC - Image 2

Schneider Electric TeSys GC, modular contactor, 16A, 2 NO, coil 110 V AC

£47.20 Incl. VAT

TeSys GC modular contactor, 2 poles (2NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage110V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GC1620F5 Categories: , , Brand: Product Code: 2500060320

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Degree of protection (IP rating) IP20 Voltage type (operating voltage) AC Number of contacts as normally closed contact 0 Voltage type (excitation voltage) AC Rated operation current 16 A Max. load fluorescent lamp (Duo circuit) 1200 VA Max. load fluorescent lamp (parallel compensated) 550 VA Number of contacts as normally open contact 2 Max. incandescent lamp load 2000 W Max. load fluorescent lamp 770 VA Recess depth 62.5 mm Width in number of modular spacings 18 Rated operating voltage 0 – 250 V Rated excitation voltage 110 – 110 V Slider for hand switch No With day/night function Yes Additional equipment possible Yes Hum-free Yes · Technical Data Sheet – Click to Download
