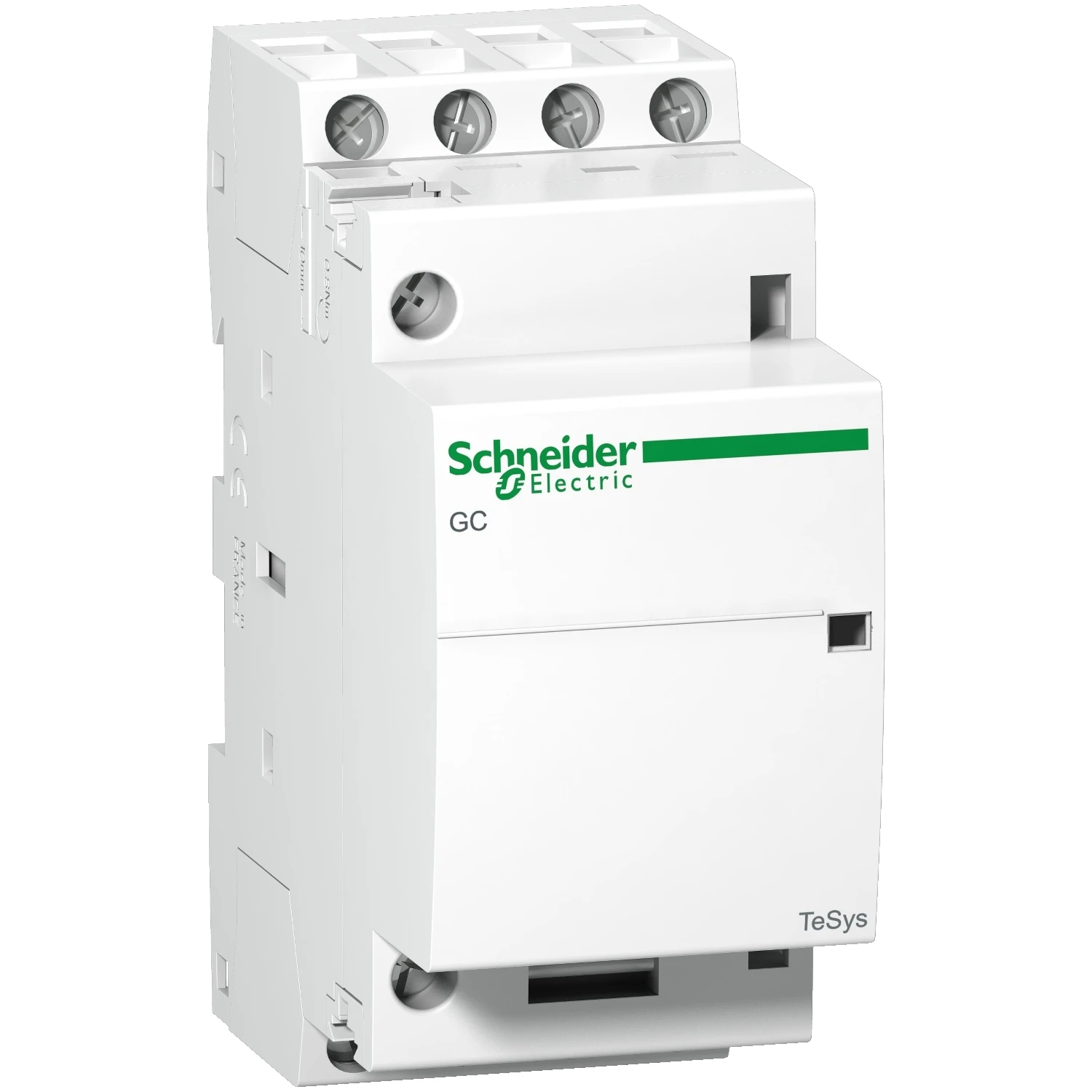

Schneider Electric TeSys GC, modular contactor, 16A, 4 NO, coil 220...240 V AC
Schneider Electric TeSys GC, modular contactor, 16A, 4 NO, coil 220...240 V AC
Schneider Electric TeSys GC, modular contactor, 16A, 4 NO, coil 220...240 V AC - Image 2

Schneider Electric TeSys GC, modular contactor, 16A, 4 NO, coil 220…240 V AC

£55.21 Incl. VAT

TeSys GC modular contactor, 4 poles (4NO), 16A/415V AC-7a (heating) and 5A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 4 poles (4NO), 16A/415V AC-7a (heating) and 5A/415V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 6 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GC1640M5 Categories: , , Brand: Product Code: 2500558416

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Max. load fluorescent lamp 650.00 VA Max. load fluorescent lamp (parallel compensated) 600.00 VA Max. incandescent lamp load 1800.00 W Number of contacts as normally open contact 4.00 Recess depth 62.50 mm Number of contacts as normally closed contact 0.00 Max. load fluorescent lamp (Duo circuit) 800.00 VA Rated operating voltage 0.00 – 415.00 V Rated operation current 16.00 A Additional equipment possible Yes Rated excitation voltage 220.00 – 240.00 V Slider for hand switch No · Technical Data Sheet – Click to Download
