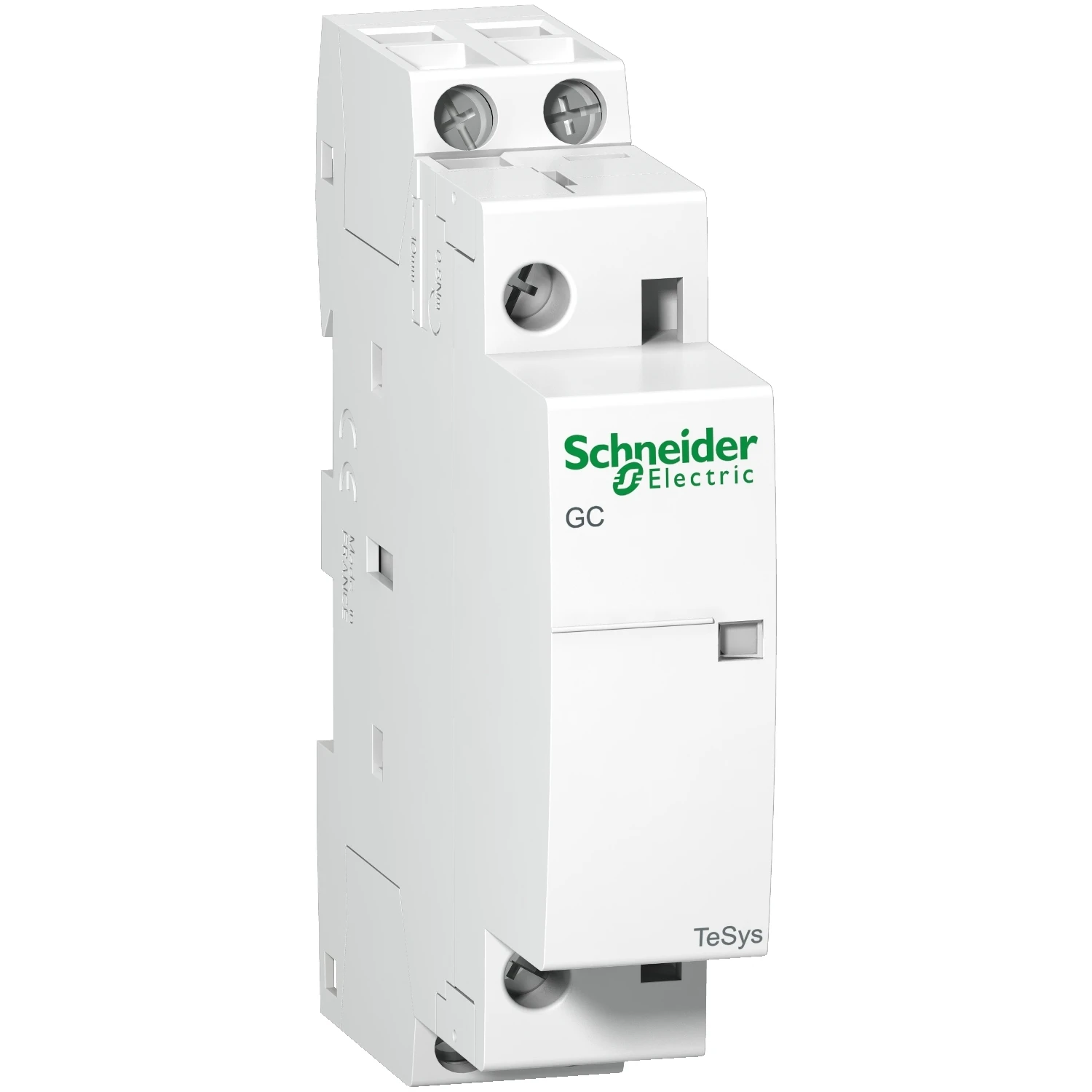

Schneider Electric TeSys GC, modular contactor, 25A, 1 NO+1 NC, coil 220…240 V AC
£55.21 Incl. VAT
TeSys GC modular contactor, 2 poles (1NO+1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 2 poles (1NO+1NC), 25A/250V AC-7a (heating) and 8.5A/250V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 12 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Max. load fluorescent lamp 1000.00 VA Recess depth 62.50 mm Number of contacts as normally open contact 1.00 Number of contacts as normally closed contact 1.00 Max. load fluorescent lamp (Duo circuit) 1200.00 VA Rated operation current 25.00 A Max. load fluorescent lamp (parallel compensated) 800.00 VA Max. incandescent lamp load 2800.00 W Rated operating voltage 0.00 – 250.00 V Slider for hand switch No Rated excitation voltage 220.00 – 240.00 V Additional equipment possible Yes · Technical Data Sheet – Click to Download
