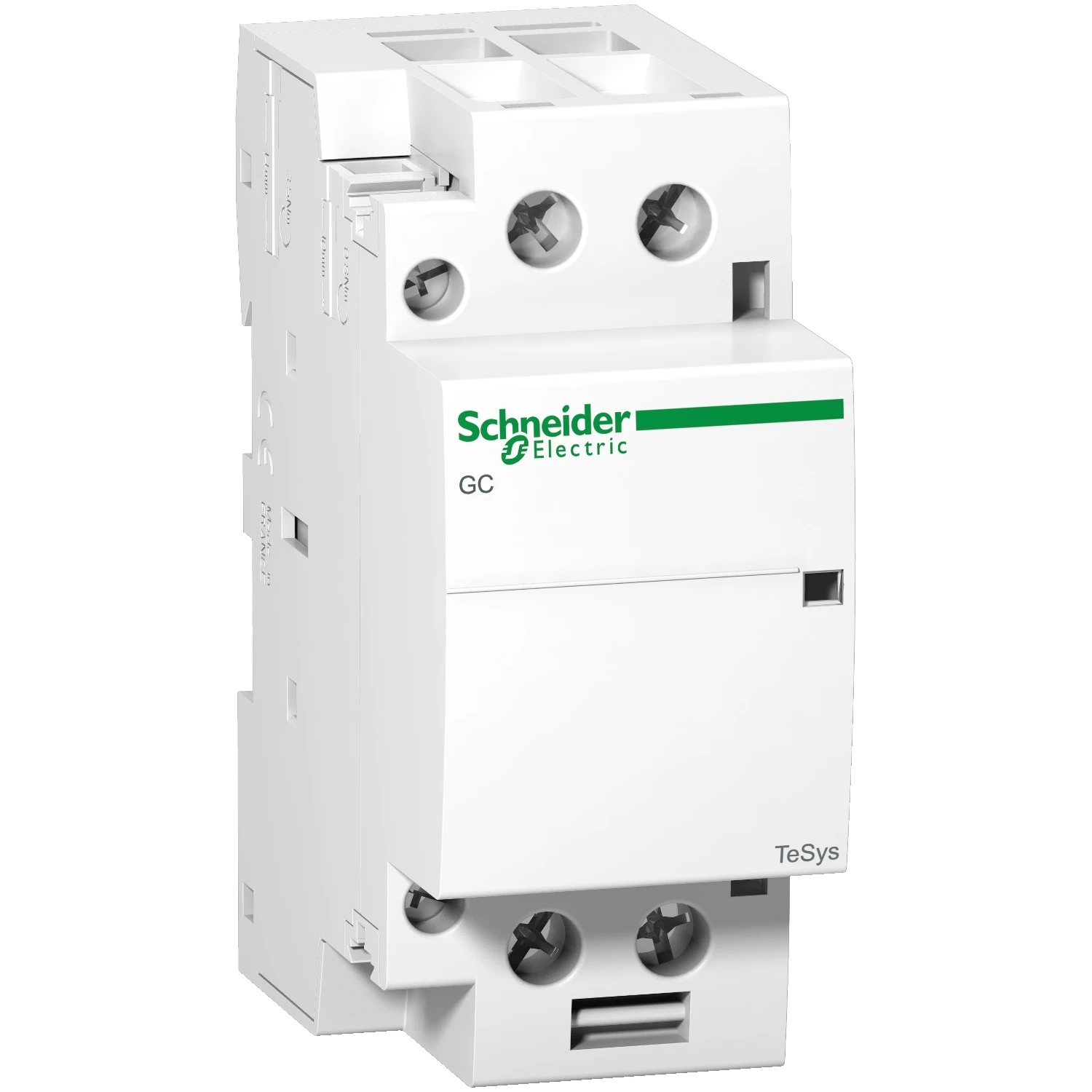

Schneider Electric Tesys GC Modular Contactor 40A 2 NO Coil 220-240V AC
£89.70 Incl. VAT
TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 6 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Depth: 62mm · · Normal State Configuration: 2 No
Out of Stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Max. load fluorescent lamp (parallel compensated) 1600 VA Recess depth 62.5 mm Number of contacts as normally open contact 2 Number of contacts as normally closed contact 0 Max. load fluorescent lamp 2200 VA Max. load fluorescent lamp (Duo circuit) 1800 VA Max. incandescent lamp load 5100 W Rated operation current 40 A Rated operating voltage 0 – 250 V Rated excitation voltage 220 – 240 V Slider for hand switch No Additional equipment possible Yes · Technical Data Sheet – Click to Download
