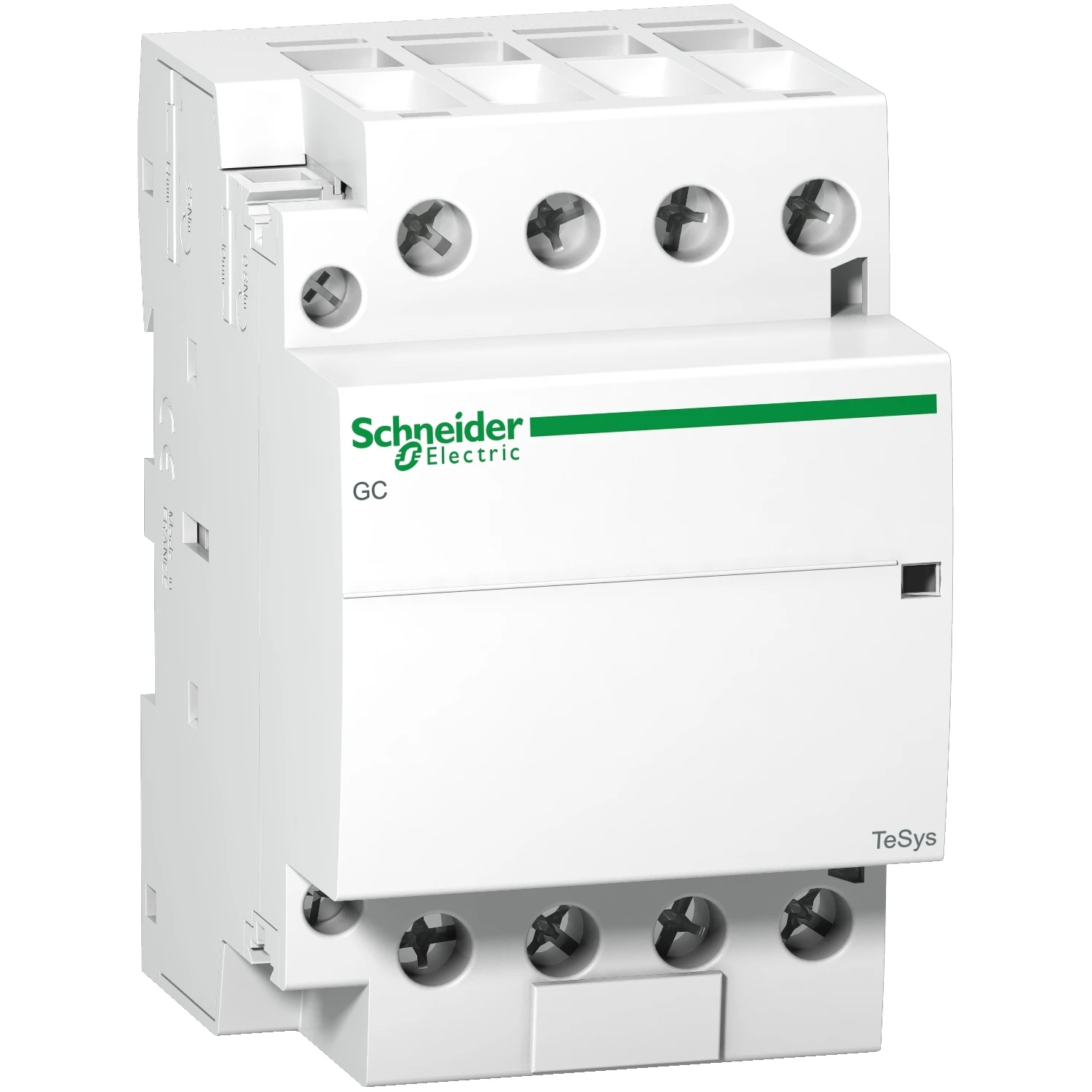

Schneider Electric Tesys GC Modular Contactor 40A 4 NO Coil 220-240V AC
£126.96 Incl. VAT
TeSys GC modular contactor, 4 poles (4NO), 40A/415V AC-7a (heating) and 15A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 4 poles (4NO), 40A/415V AC-7a (heating) and 15A/415V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 4 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Depth: 62mm · · Normal State Configuration: 4 No
Out of Stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Number of contacts as normally open contact 4 Number of contacts as normally closed contact 0 Rated operation current 40 A Max. load fluorescent lamp (Duo circuit) 1800 VA Max. load fluorescent lamp 2200 VA Max. load fluorescent lamp (parallel compensated) 1600 VA Max. incandescent lamp load 5100 W Recess depth 62.5 mm Rated operating voltage 0 – 415 V Rated excitation voltage 220 – 240 V Additional equipment possible Yes Slider for hand switch No · Technical Data Sheet – Click to Download
