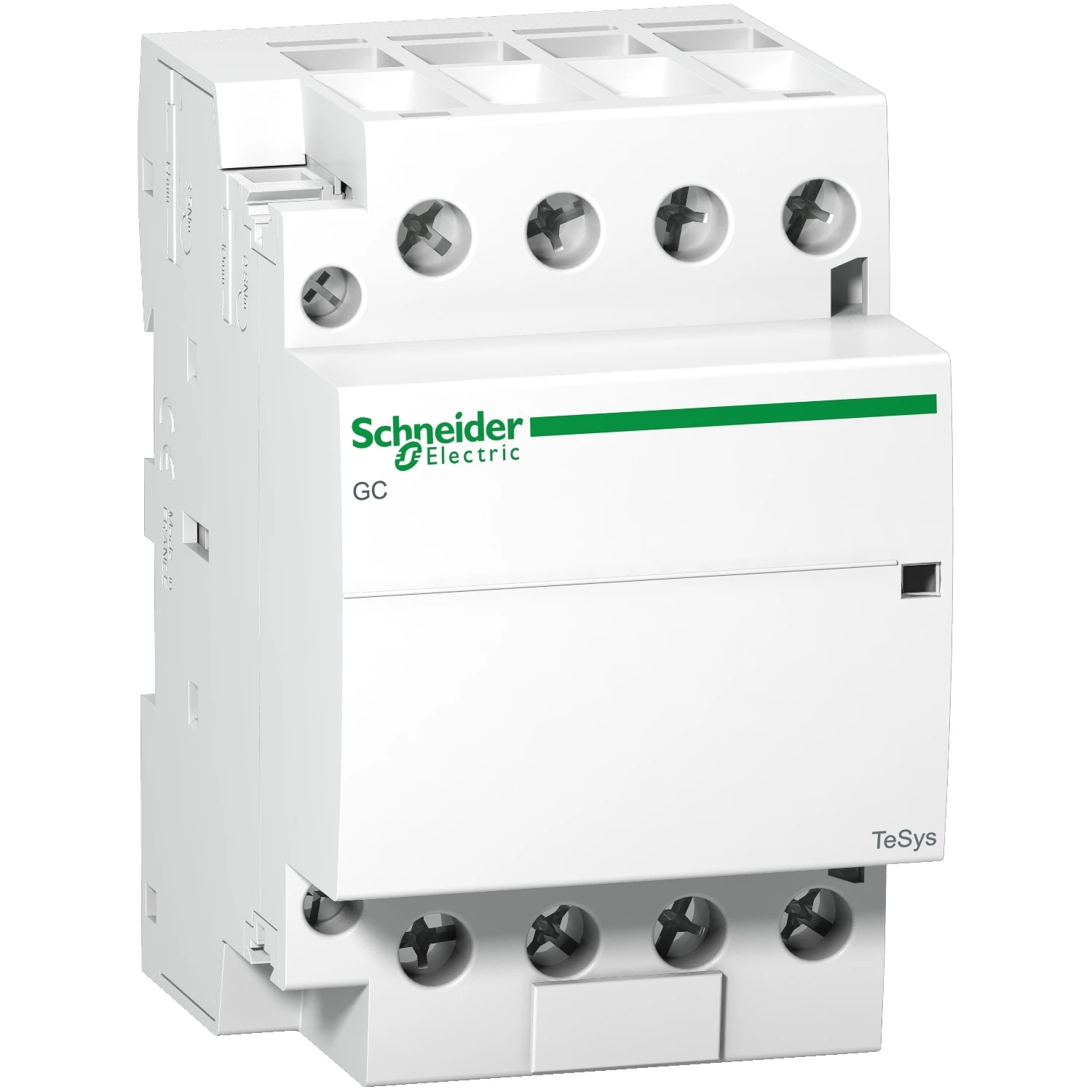

Schneider Electric Tesys GC Modular Contactor 63A 4 NO Coil 220-240V AC
£183.54 Incl. VAT
TeSys GC modular contactor, 4 poles (4NO), 63A/415V AC-7a (heating) and 25A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · · TeSys GC modular contactor, 4 poles (4NO), 63A/415V AC-7a (heating) and 25A/415V AC-7b (motor control), for household applications. · · Control voltage 220-240V AC 50Hz, state indicator on front. · · For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. · · Sold in lots of 4 units. · · Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh). · · Depth: 62mm · · Normal State Configuration: 4 No
Out of Stock
Description
Technical Specifications Technical Specifications Contactor for distribution board installation Recess depth 62.5 mm Number of contacts as normally closed contact 0 Max. load fluorescent lamp (parallel compensated) 2200 VA Number of contacts as normally open contact 4 Max. load fluorescent lamp 3500 VA Max. incandescent lamp load 7500 W Rated operation current 63 A Max. load fluorescent lamp (Duo circuit) 3300 VA Rated excitation voltage 220 – 240 V Rated operating voltage 0 – 415 V Additional equipment possible Yes Slider for hand switch No · Technical Data Sheet – Click to Download
