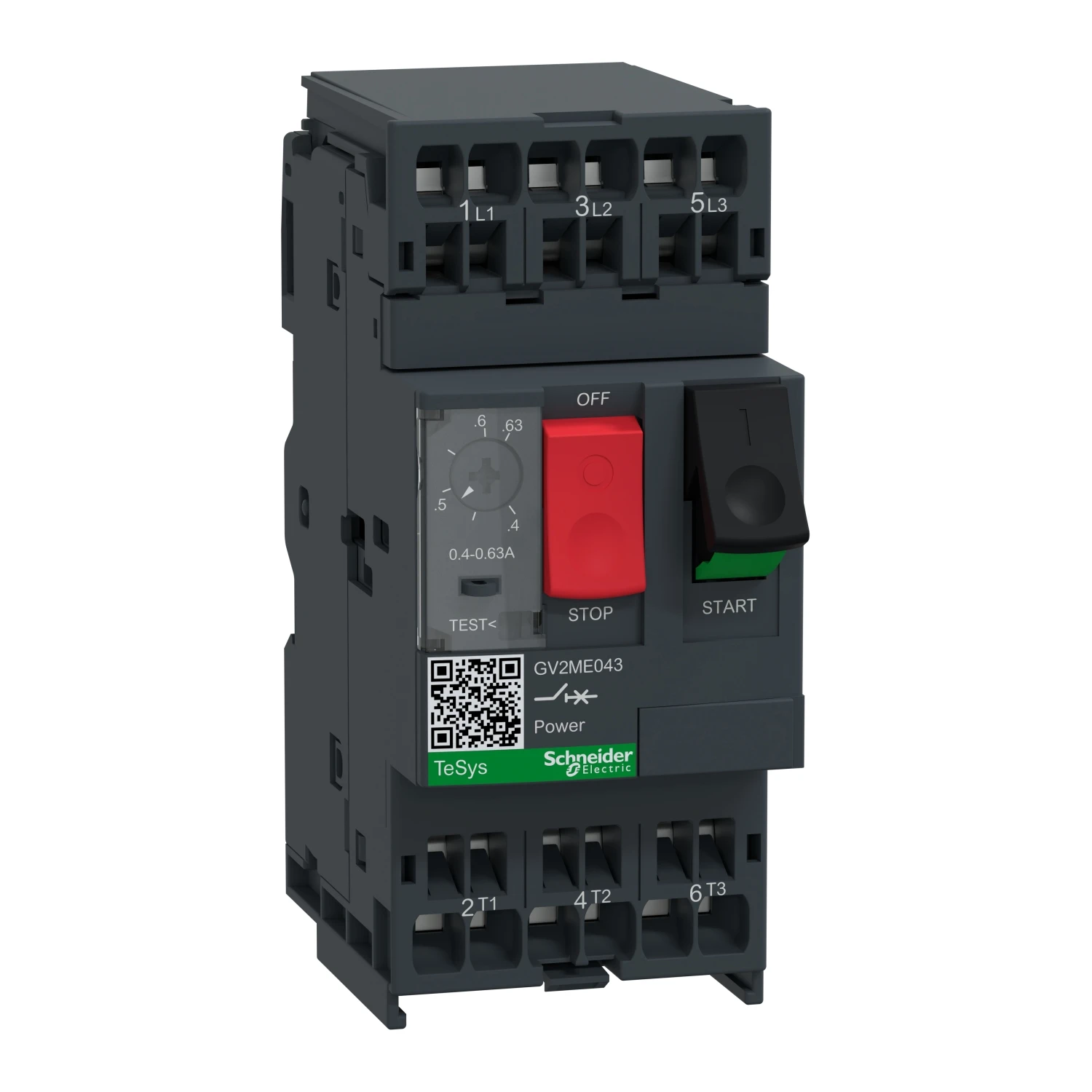

Schneider Electric TeSys GV2, Circuit breaker, thermal-magnetic, 0,4…0,63A, spring term
£74.62 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. · · Connection by spring terminals. · · Start-stop control by push-button guaranteed for 100 000 cycles AC-3.
Out of Stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Height 101.00 mm Width 45.00 mm Rated operation power at AC-3, 400 V 0.18 kW Rated permanent current Iu 0.63 A Rated operation power at AC-3, 230 V 0.09 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100.00 kA Depth 78.20 mm Number of poles 3.00 Overload release current setting 0.40 – 0.63 A Rated operating voltage 0.00 – 690.00 V With thermal overload protection Yes Adjustment range undelayed short-circuit release 8.00 – 8.00 A With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194
