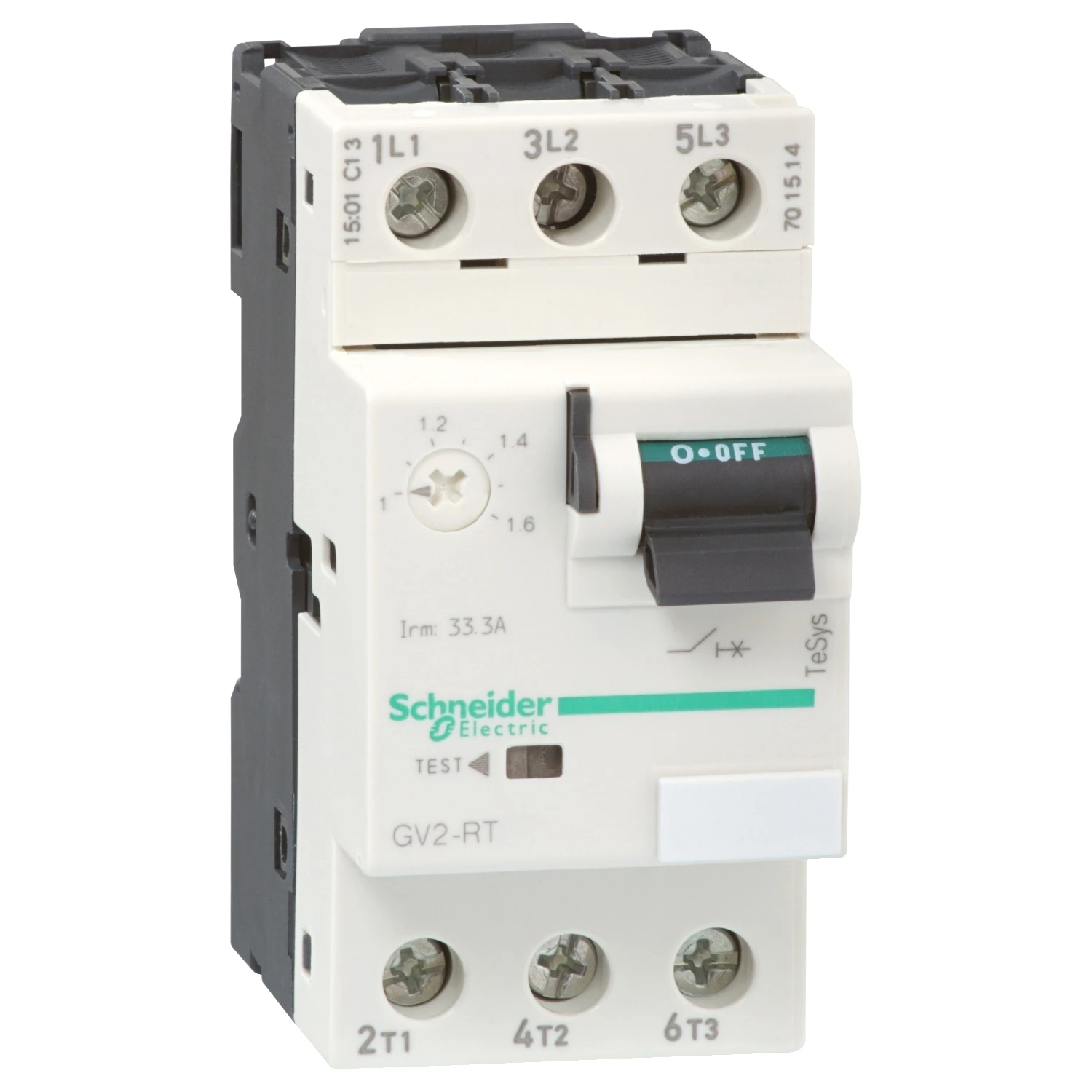

Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic-1.6-2.5A Screw Clamp Terminals
Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic-1.6-2.5A Screw Clamp Terminals
Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic-1.6-2.5A Screw Clamp Terminals - Image 2
Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic-1.6-2.5A Screw Clamp Terminals - Image 3

Schneider Electric Tesys GV2-Circuit Breaker-Thermal-Magnetic-1.6-2.5A Screw Clamp Terminals

£126.48 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for high starting current peak motor applications 0.75kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1.6-2.5A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for high starting current peak motor applications 0.75kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 1.6-2.5A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by toggle guaranteed for 100 000 cycles AC-3. · · It can be used for protection of 3-phase transformer applications.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV2RT07 Categories: , Brand: Product Code: 2500152747

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45.00 mm Depth 78.50 mm Height 89.00 mm Rated operation power at AC-3, 230 V 0.37 kW Rated permanent current Iu 2.50 A Rated operation power at AC-3, 400 V 0.75 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100.00 kA Adjustment range undelayed short-circuit release 51.00 – 51.00 A Number of poles 3.00 Overload release current setting 1.60 – 2.50 A Rated operating voltage 0.00 – 690.00 V With integrated auxiliary switch No With integrated under voltage release No With thermal overload protection Yes Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224938
