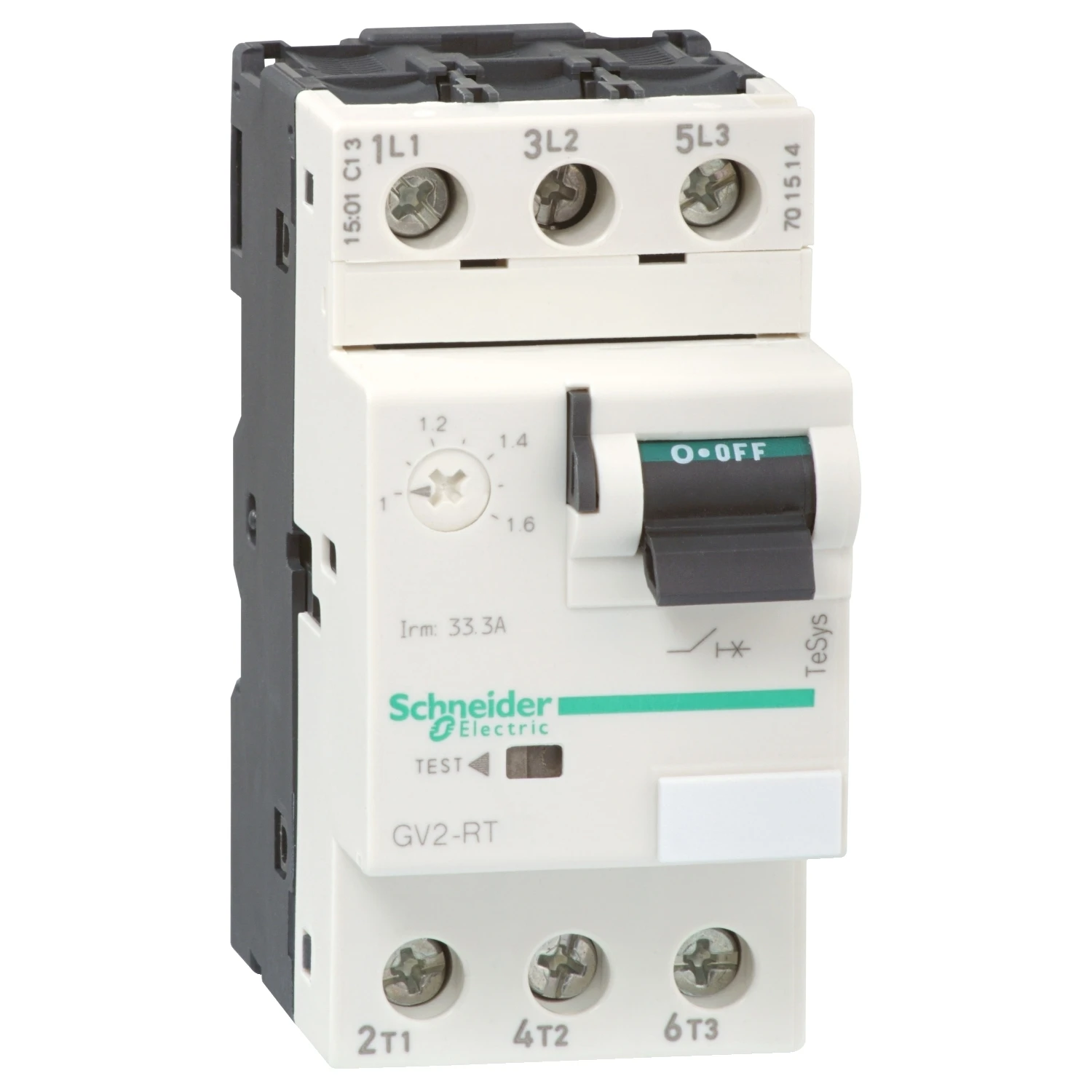

Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 4-6.3A Screw Clamp Terminals
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 4-6.3A Screw Clamp Terminals
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 4-6.3A Screw Clamp Terminals - Image 2
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 4-6.3A Screw Clamp Terminals - Image 3

Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 4-6.3A Screw Clamp Terminals

£126.48 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for high starting current peak motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for high starting current peak motor applications 2.2kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by toggle guaranteed for 100 000 cycles AC-3. · · It can be used for protection of 3-phase transformer applications. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV2RT10 Categories: , Brand: Product Code: 2500152753

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45 mm Depth 78.5 mm Number of poles 3 Rated operation power at AC-3, 400 V 2.2 kW Rated permanent current Iu 6.3 A Rated operation power at AC-3, 230 V 1.5 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Height 89 mm Overload release current setting 4 – 6.3 A Adjustment range undelayed short-circuit release 138 – 138 A With integrated auxiliary switch No Rated operating voltage 0 – 690 V With thermal overload protection Yes With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224938
