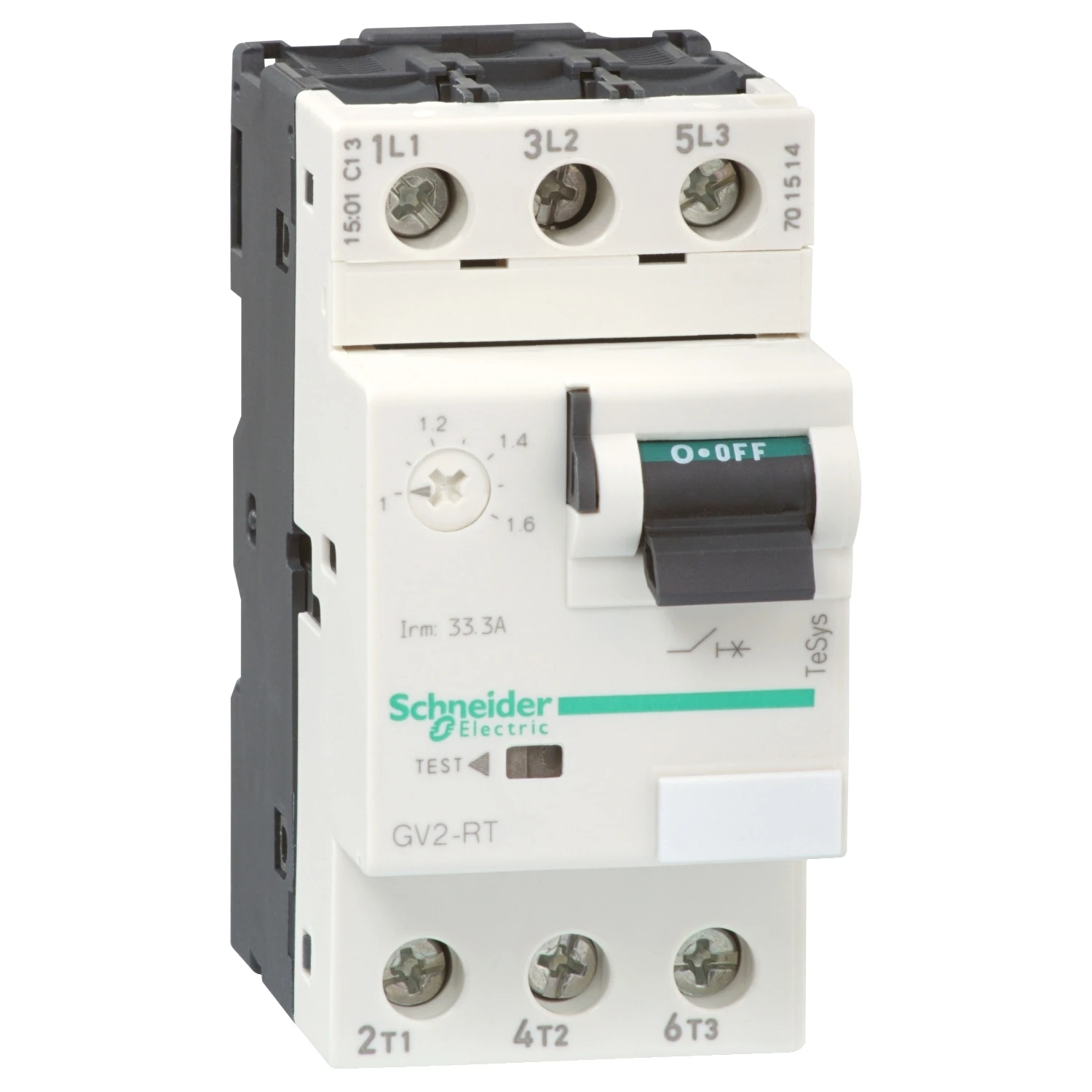

Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 9-14A Screw Clamp Terminals
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 9-14A Screw Clamp Terminals
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 9-14A Screw Clamp Terminals - Image 2
Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 9-14A Screw Clamp Terminals - Image 3

Schneider Electric Tesys GV2 Circuit Breaker Thermal-Magnetic 9-14A Screw Clamp Terminals

£149.23 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for high starting current peak motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-14A, a magnetic tripping level at 20xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for high starting current peak motor applications 5.5kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 9-14A, a magnetic tripping level at 20xIn, high breaking capacity Icu 15kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by toggle guaranteed for 100 000 cycles AC-3. · · It can be used for protection of 3-phase transformer applications.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV2RT16 Categories: , Brand: Product Code: 2500152755

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45.00 mm Rated short-circuit breaking capacity Icu at 400 V, AC 15.00 kA Rated permanent current Iu 14.00 A Rated operation power at AC-3, 230 V 3.00 kW Rated operation power at AC-3, 400 V 5.50 kW Number of poles 3.00 Depth 78.50 mm Adjustment range undelayed short-circuit release 280.00 – 280.00 A Height 89.00 mm Overload release current setting 9.00 – 14.00 A Rated operating voltage 0.00 – 690.00 V With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224938
