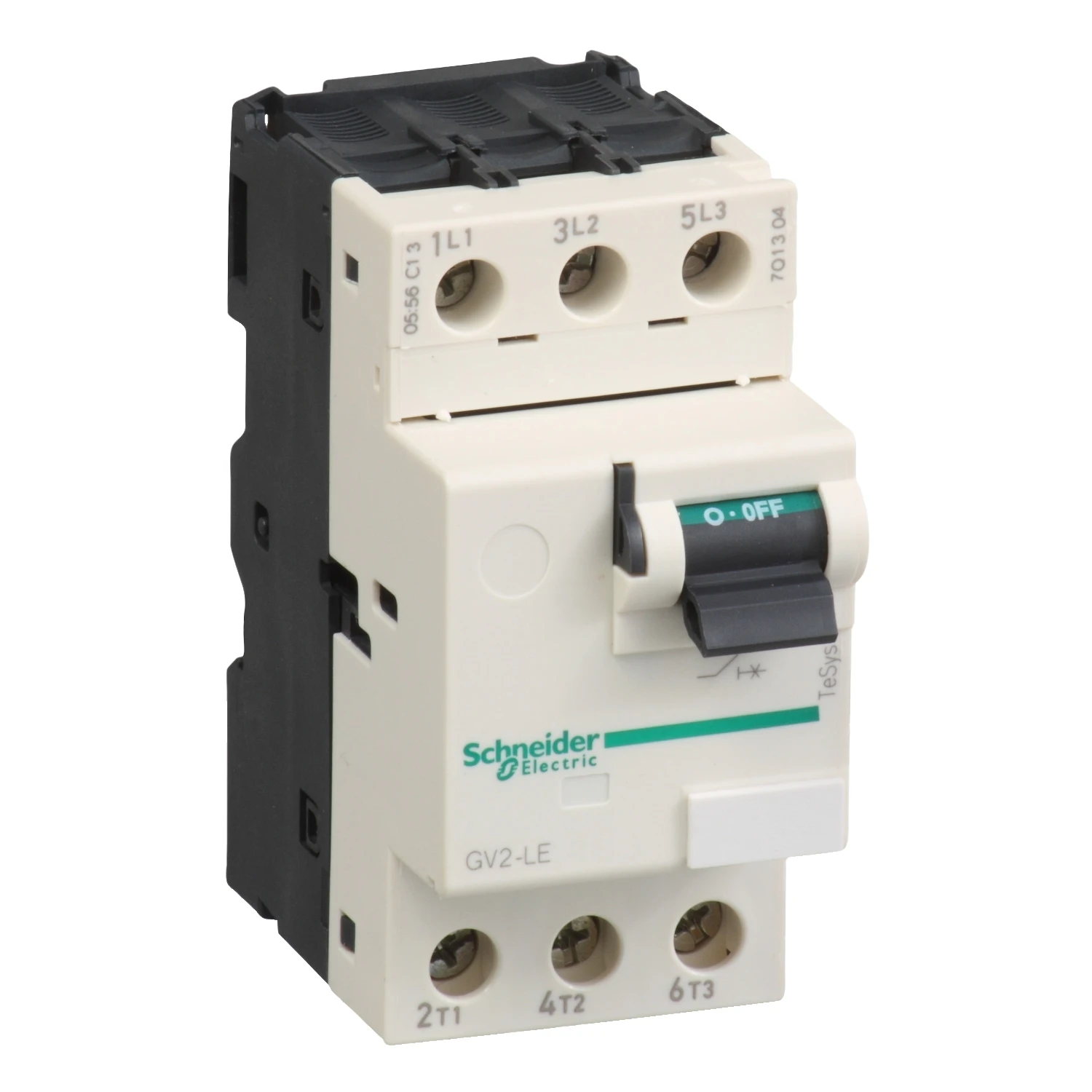

Schneider Electric Tesys GV2 Circuit Breakermagnetic 4A Screw Clamp Terminals
£74.62 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. · · It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by toggle guaranteed for 100 000 cycles AC-3. · · To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Height 89 mm Width 45 mm Depth 78.5 mm Rated operation power at AC-3, 400 V 1.5 kW Rated operation power at AC-3, 230 V 0.75 kW Rated permanent current Iu 4 A Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Overload release current setting – – – A Rated operating voltage 0 – 690 V With thermal overload protection No Adjustment range undelayed short-circuit release 51 – 51 A With integrated auxiliary switch No Phase failure sensitive Yes With integrated under voltage release No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224938
