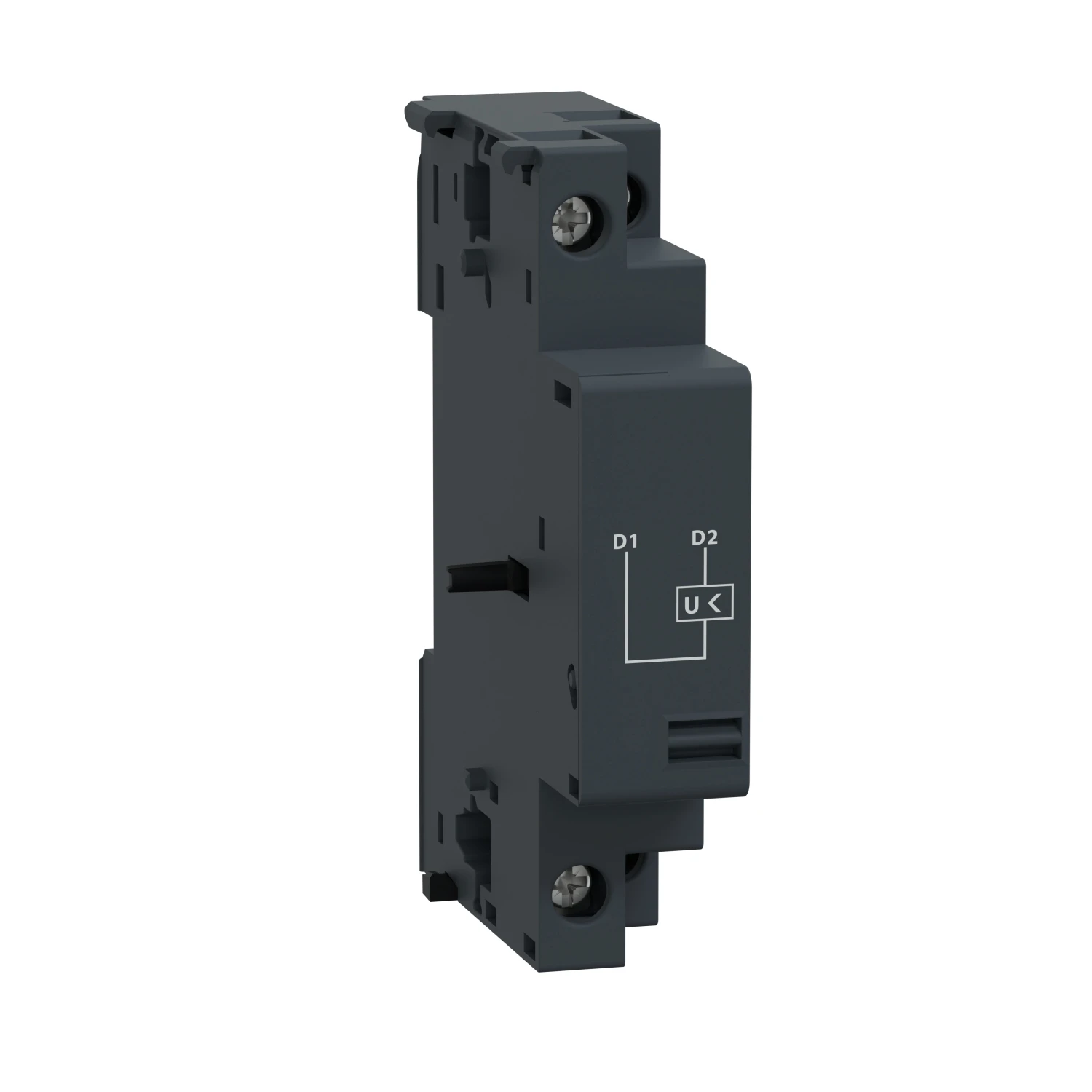

Schneider Electric Tesys GV2 & GV3 Undervoltage Trip 415-440V AC 50 Hz
£34.15 Incl. VAT
TeSys GV electrical trip, MN undervoltage release, 415-440V AC 50Hz / 480V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys GV electrical trip, MN undervoltage release, 415-440V AC 50Hz / 480V AC 60Hz, for motor circuit breakers GV2, GV3. · · It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. · · Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. · · To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Under voltage coil Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Rated control supply voltage at DC – – – V Number of contacts as change-over contact 0 Rated control supply voltage at AC 60 Hz 480 – 480 V Rated control supply voltage at AC 50 Hz 415 – 440 V Delayed No Suitable for off-load switch No Suitable for motor safety switch No Suitable for overload relay No Suitable for power circuit breaker Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188186
