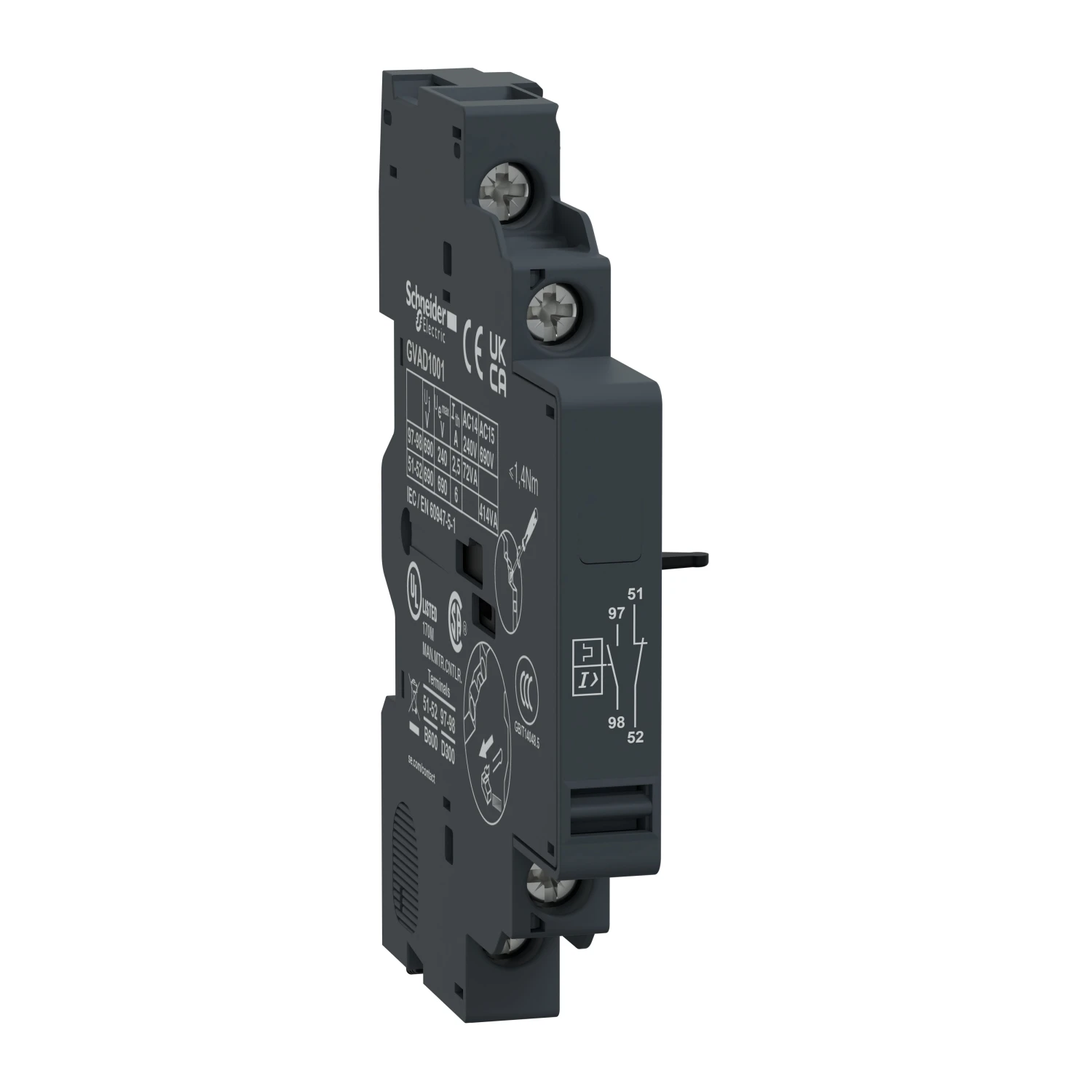

Schneider Electric Tesys GV2 & GV3Auxiliary Contact 1 NC + 1 NO (Fault)

TeSys GV2 & GV3, auxiliary contact, 1 NC+1 NO (fault). range: TeSys – device short name: GVAD – product or component type: auxiliary contact block – product compatibility: GV2L, GV2LE, GV2ME, GV2P, GV2RT, GV3L, GV3P – pole contact composition: 1 NO + 1 NC – connections – terminals: screw clamp terminals 1 cable 0.75…1.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 1 cable 0.75…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid, screw clamp terminals 2 cable 0.75…1.5 mm² – cable stiffness: flexible – with cable end, screw clamp terminals 2 cable 0.75…2.5 mm² – cable stiffness: flexible – without cable end, screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid. · · · TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. · · 1NO fault signaling contact + 1NC instantaneous auxiliary contact. · · Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. · · Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. · · To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. · · Normal State Configuration: 1 No + 1 Nc
