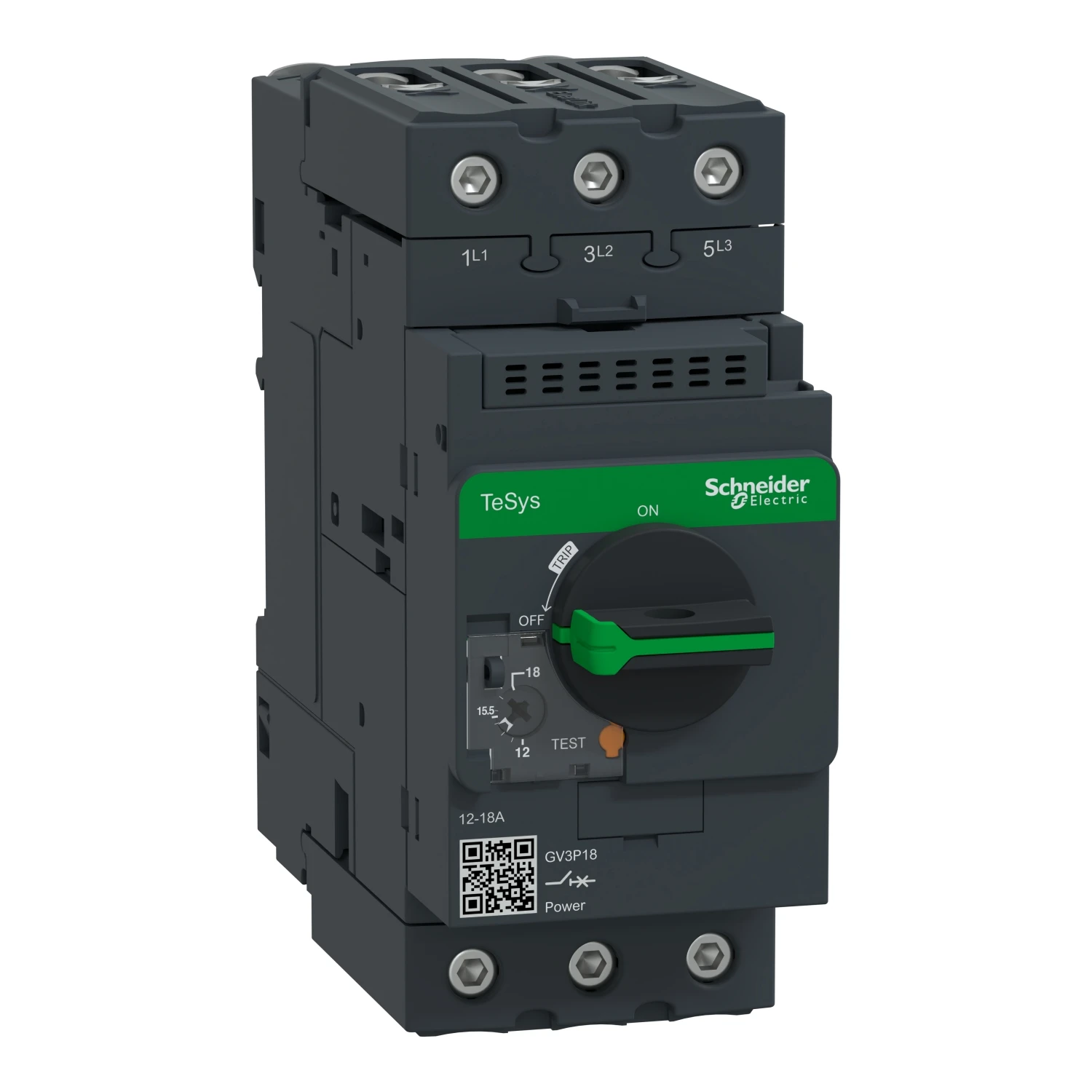

Schneider Electric Tesys GV3-Circuit Breaker-Thermal-Magnetic 12-18A Everlink Btr Connectors
£164.41 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 12-18A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 12-18A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. · · Connection by Everlink BTR screw terminals. · · Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. · · Weight: 0.96kg · · Depth: 136mm
Out of Stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Rated operation power at AC-3, 400 V 7.50 kW Width 55.00 mm Rated permanent current Iu 18.00 A Rated operation power at AC-3, 230 V 4.00 kW Number of poles 3.00 Depth 136.00 mm Rated short-circuit breaking capacity Icu at 400 V, AC 100.00 kA Adjustment range undelayed short-circuit release 252.00 – 252.00 A Height 132.00 mm Rated operating voltage 0.00 – 690.00 V Overload release current setting 12.00 – 18.00 A With integrated auxiliary switch No With integrated under voltage release No With thermal overload protection Yes Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188195 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224882
