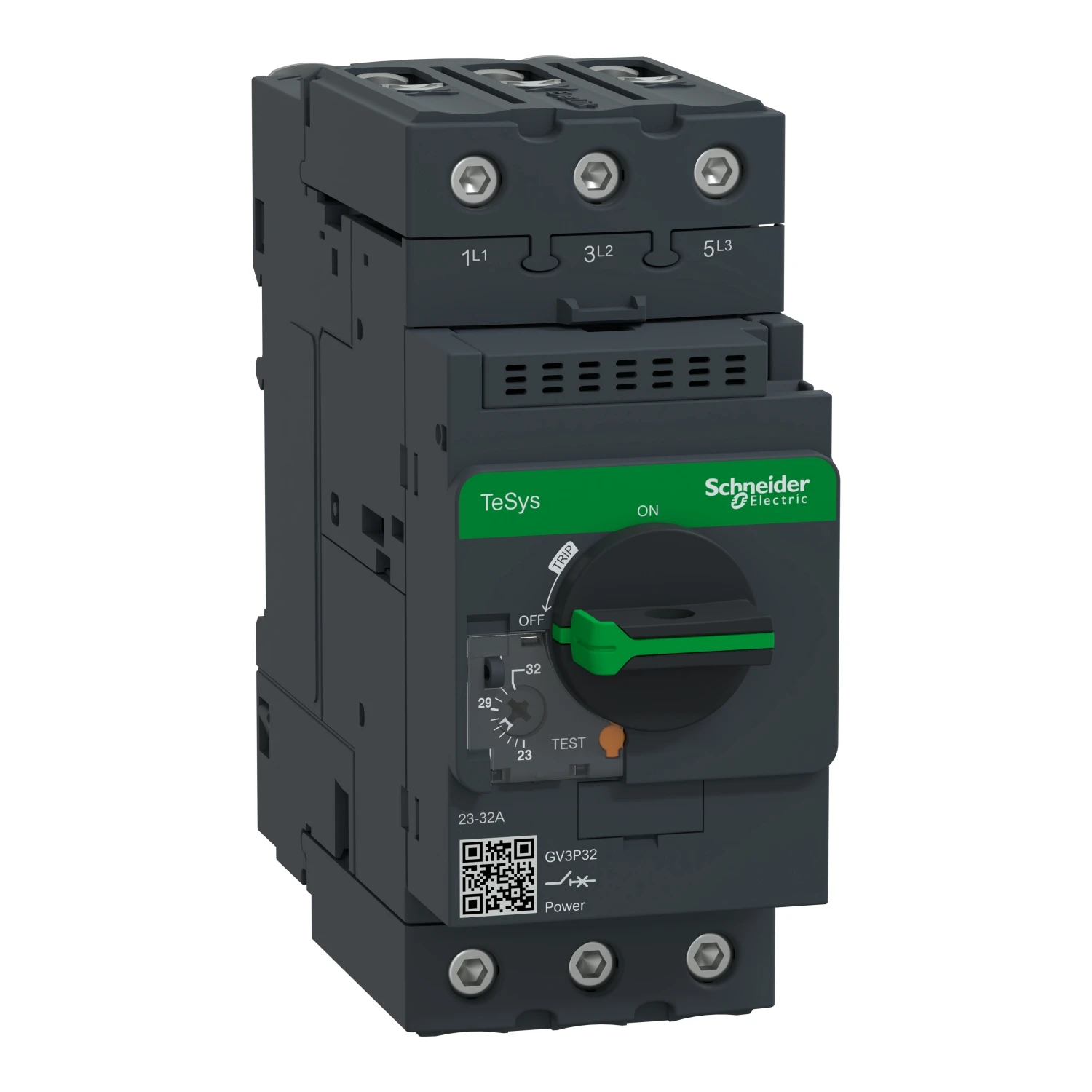

Schneider Electric Tesys GV3-Circuit Breaker-Thermal-Magnetic 23-32A Everlink Btr Connectors
£204.88 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. · · Connection by Everlink BTR screw terminals. · · Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. · · Weight: 0.96kg · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Rated operation power at AC-3, 400 V 15 kW Width 55 mm Rated permanent current Iu 32 A Rated operation power at AC-3, 230 V 7.5 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Number of poles 3 Depth 136 mm Height 132 mm Adjustment range undelayed short-circuit release 448 – 448 A Rated operating voltage 0 – 690 V Overload release current setting 23 – 32 A With integrated under voltage release No With integrated auxiliary switch No Phase failure sensitive Yes With thermal overload protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188195 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224882
