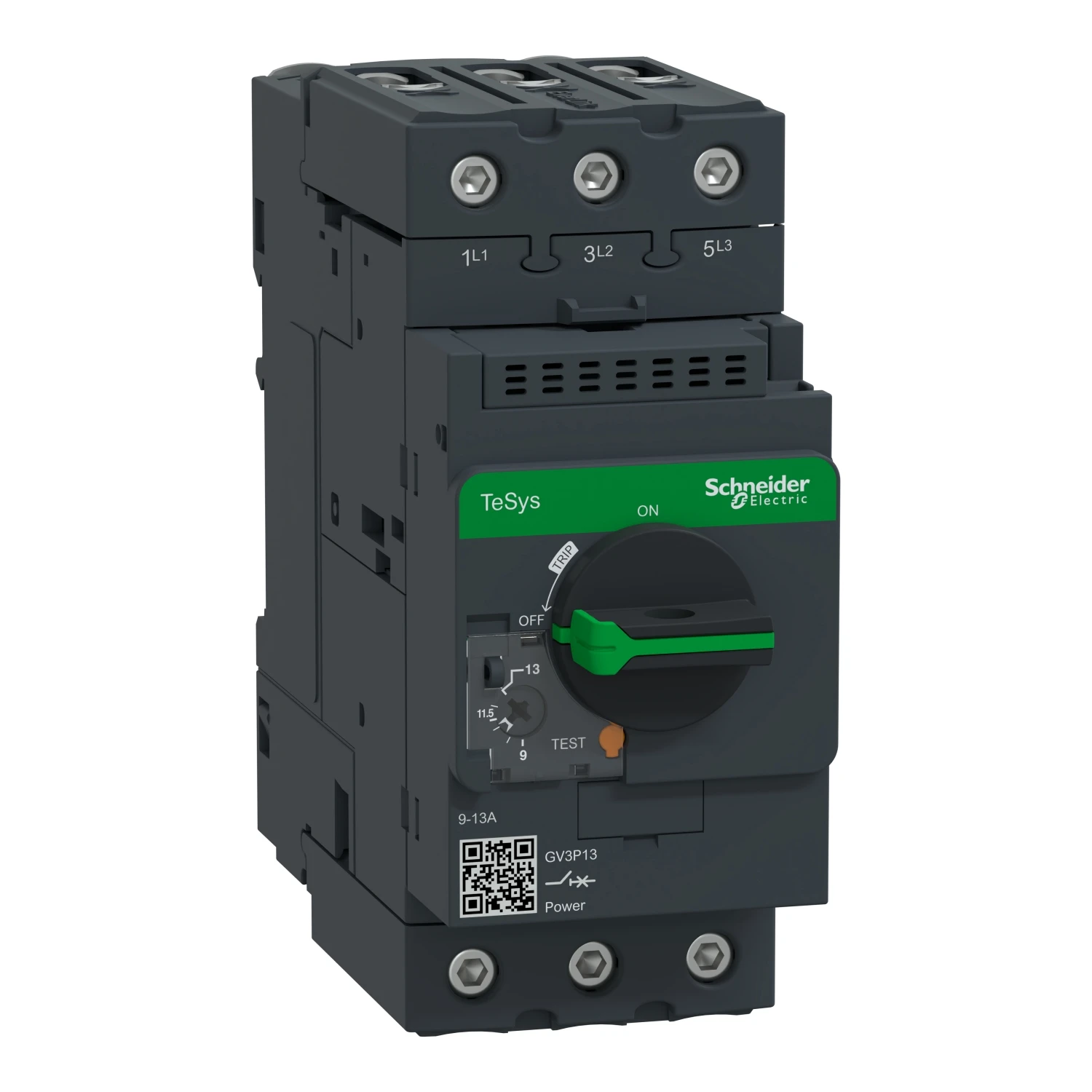

Schneider Electric Tesys GV3 Circuit Breaker Thermal-Magnetic 9-13A Everlink Btr Connectors
Schneider Electric Tesys GV3 Circuit Breaker Thermal-Magnetic 9-13A Everlink Btr Connectors
Schneider Electric Tesys GV3 Circuit Breaker Thermal-Magnetic 9-13A Everlink Btr Connectors - Image 2

Schneider Electric Tesys GV3 Circuit Breaker Thermal-Magnetic 9-13A Everlink Btr Connectors

£149.23 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 13A/690V, for 3-phase motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-13A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · Covers Motor protection up to 45kW @ 415V, breaking capacity 100kA @ 415V up to 32A, 50kA @ 415V up to 80A, Manuafactured to IEC/EN 60947 – 1, IEC/EN 60947 – 2, IEC/EN 60947 – 4 – 1 Certified to CSA, CCC, EAC. · · It provides a thermal-magnetic protection with a thermal setting range 9-13A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. · · Connection by Everlink BTR screw terminals. · · Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. · · Weight: 0.96kg · · Depth: 136mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV3P13 Categories: , Brand: Product Code: 2500237262

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 55.00 mm Number of poles 3.00 Rated permanent current Iu 13.00 A Rated operation power at AC-3, 230 V 3.00 kW Rated operation power at AC-3, 400 V 5.50 kW Depth 136.00 mm Height 132.00 mm Rated short-circuit breaking capacity Icu at 400 V, AC 100.00 kA Rated operating voltage 0.00 – 690.00 V Overload release current setting 9.00 – 13.00 A Adjustment range undelayed short-circuit release 182.00 – 182.00 A With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188195 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224882
