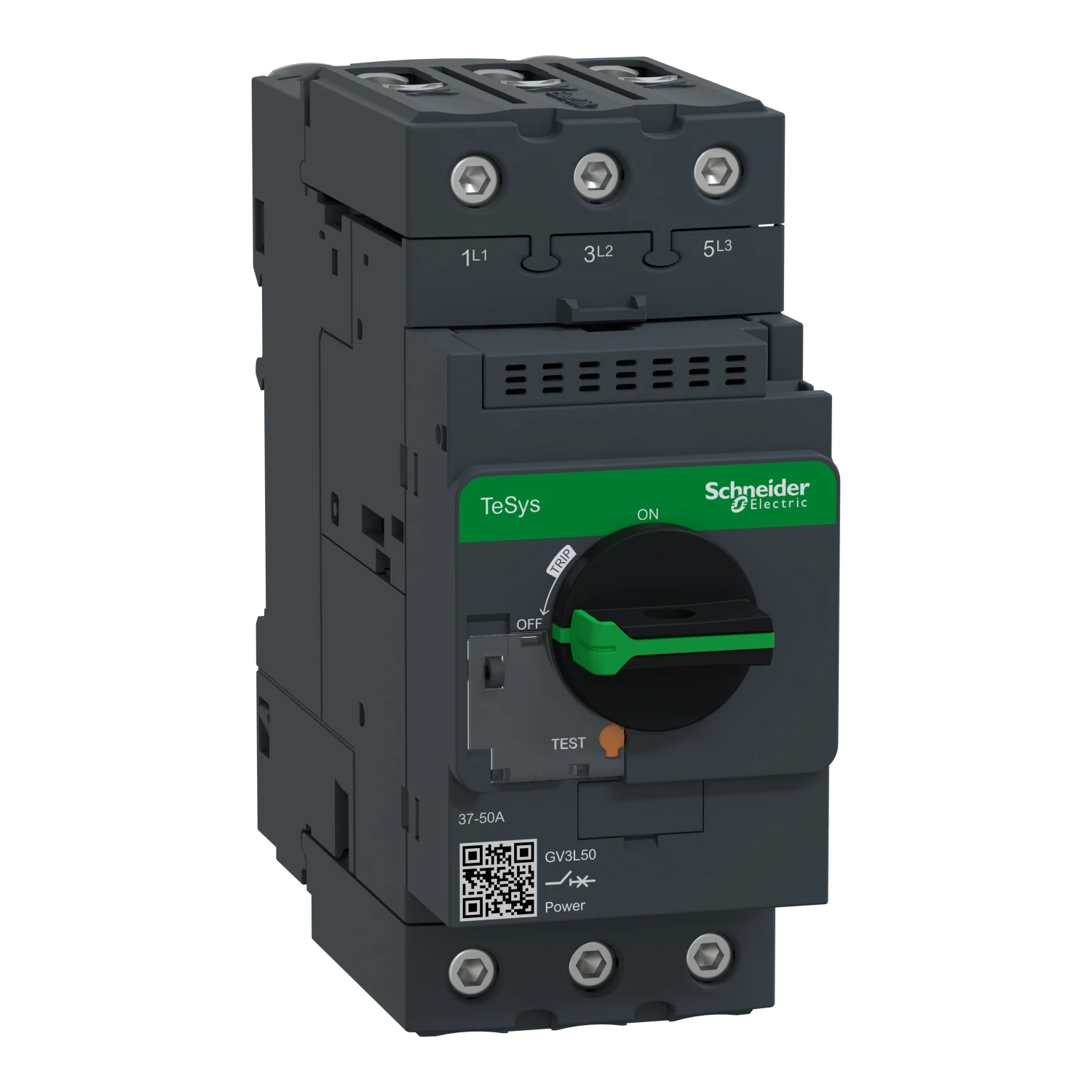

Schneider Electric TeSys GV3 Magnetic Circuit Breaker 50A Everlink BTR Connectors
Schneider Electric TeSys GV3 Magnetic Circuit Breaker 50A Everlink BTR Connectors
Schneider Electric TeSys GV3 Magnetic Circuit Breaker 50A Everlink BTR Connectors - Image 2

Schneider Electric TeSys GV3 Magnetic Circuit Breaker 50A Everlink BTR Connectors

£239.02 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. · · It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. · · Connection by Everlink BTR screw terminals. · · Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. · · To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). · · Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV3L50 Category: Brand: Product Code: 2500246759

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 55 mm Rated operation power at AC-3, 400 V 22 kW Rated permanent current Iu 50 A Rated short-circuit breaking capacity Icu at 400 V, AC 50 kA Rated operation power at AC-3, 230 V 15 kW Number of poles 3 Depth 136 mm Overload release current setting – – – A Height 132 mm Rated operating voltage 0 – 690 V Adjustment range undelayed short-circuit release 700 – 700 A With integrated auxiliary switch No With thermal overload protection No Phase failure sensitive Yes With integrated under voltage release No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188195
