Schneider Electric Tesys Le Enclosed Dol Starter 12A 230V AC Coil
Schneider Electric Tesys Le Enclosed Dol Starter 12A 230V AC Coil

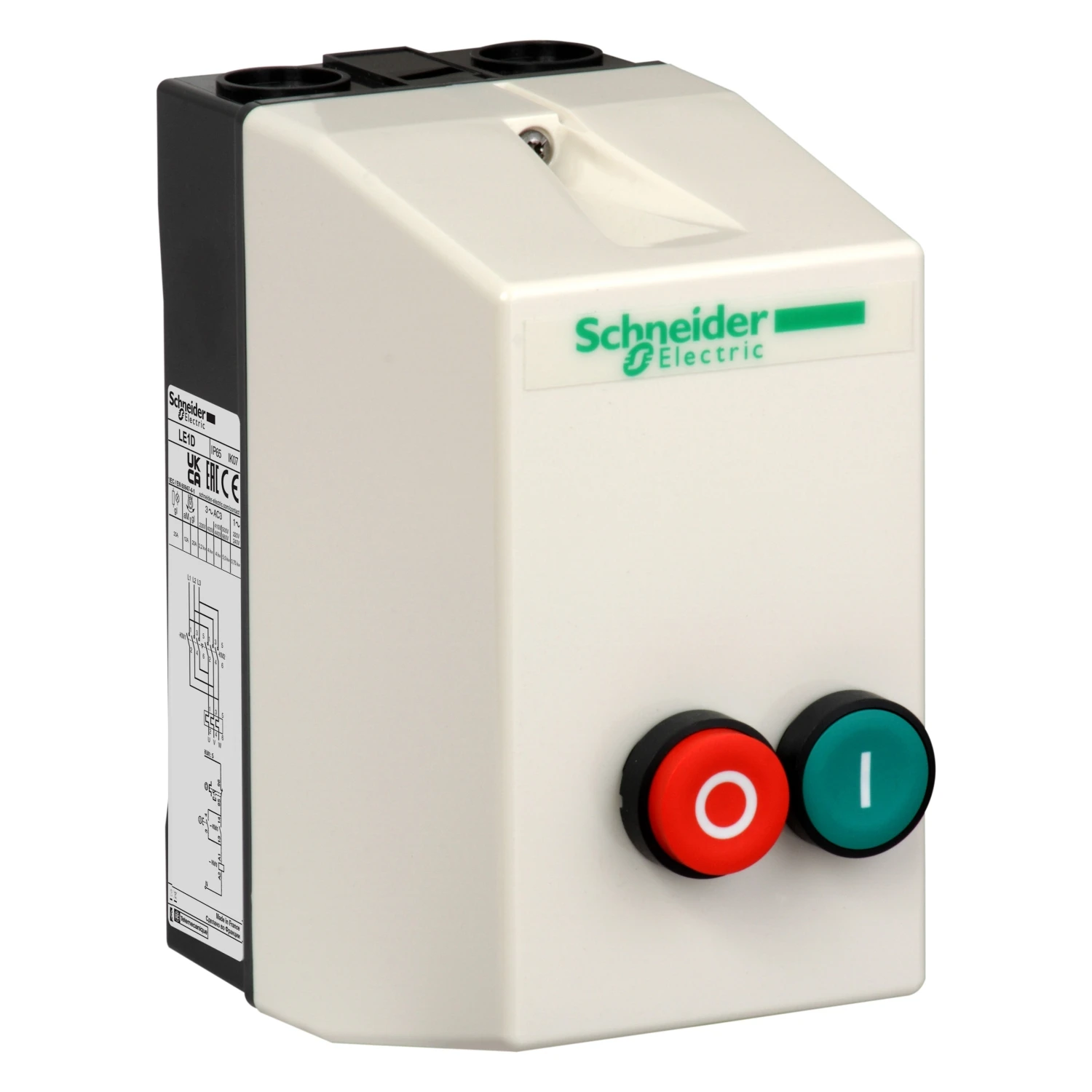

Schneider Electric Tesys Le Enclosed Dol Starter 12A 230V AC Coil - Image 2

Schneider Electric Tesys Le Enclosed Dol Starter 12A 230V AC Coil

£98.29 Incl. VAT

TeSys enclosed starter with contactor, 3 poles, Ithe 12A 690V, for non-reversing motor applications 5.5kW@400V AC-3. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). It includes a contactor LC1D with a control circuit 230V 50/60Hz. To operate, it must be fitted with a thermal overload relay LRD16 (to be ordered separately). Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with contactor, 3 poles, Ithe 12A 690V, for non-reversing motor applications 5.5kW@400V AC-3. · · Width: 88mm · · Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). · · It includes a contactor LC1D with a control circuit 230V 50/60Hz. · · To operate, it must be fitted with a thermal overload relay LRD16 (to be ordered separately).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LE1D12P7 Categories: , , , , , Brand: Product Code: 2500092613

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Depth 128.50 mm Width 88.00 mm Height 166.00 mm Number of command positions 2.00 Number of auxiliary contacts as normally open contact 0.00 Rated operation power at AC-3, 400 V 5.50 kW Number of auxiliary contacts as normally closed contact 0.00 Number of indicator lights 0.00 Rated operation power at AC-3, 230 V, 3-phase 3.00 kW Rated operation current at AC-3, 400 V 12.00 A Ambient temperature, upper operating limit 40.00 °C Rated power, 460 V, 60 Hz, 3-phase 5.50 kW Rated power, 575 V, 60 Hz, 3-phase 7.50 kW Rated conditional short-circuit current, type 1, 480 Y/277 V – A Rated conditional short-circuit current, type 1, 600 Y/347 V – A Rated conditional short-circuit current, type 2, 230 V – A Rated conditional short-circuit current, type 2, 400 V – A Rated operation current Ie 12.00 A Rated control supply voltage at DC – – – V Overload release current setting – – – A Rated control supply voltage at AC 50 Hz 230.00 – 230.00 V Rated control supply voltage at AC 60 Hz 230.00 – 230.00 V Suitable for emergency stop No Supporting protocol for other bus systems No Supporting protocol for PROFINET CBA No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No With fuse No External reset possible Yes Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No With transformer No Rail mounting possible No Supporting protocol for PROFIBUS No Supporting protocol for TCP/IP No Supporting protocol for CAN No Supporting protocol for ASI No Supporting protocol for Data-Highway No Supporting protocol for INTERBUS No Supporting protocol for MODBUS No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for LON No Supporting protocol for INTERBUS-Safety No Supporting protocol for SERCOS No With short-circuit release No Temperature compensated overload protection No Supporting protocol for PROFINET IO No · Technical Data Sheet – Click to Download
