Schneider Electric TeSys LE, enclosed DOL starter, 1,8...2,6A, 415 V AC coil
Schneider Electric TeSys LE, enclosed DOL starter, 1,8...2,6A, 415 V AC coil

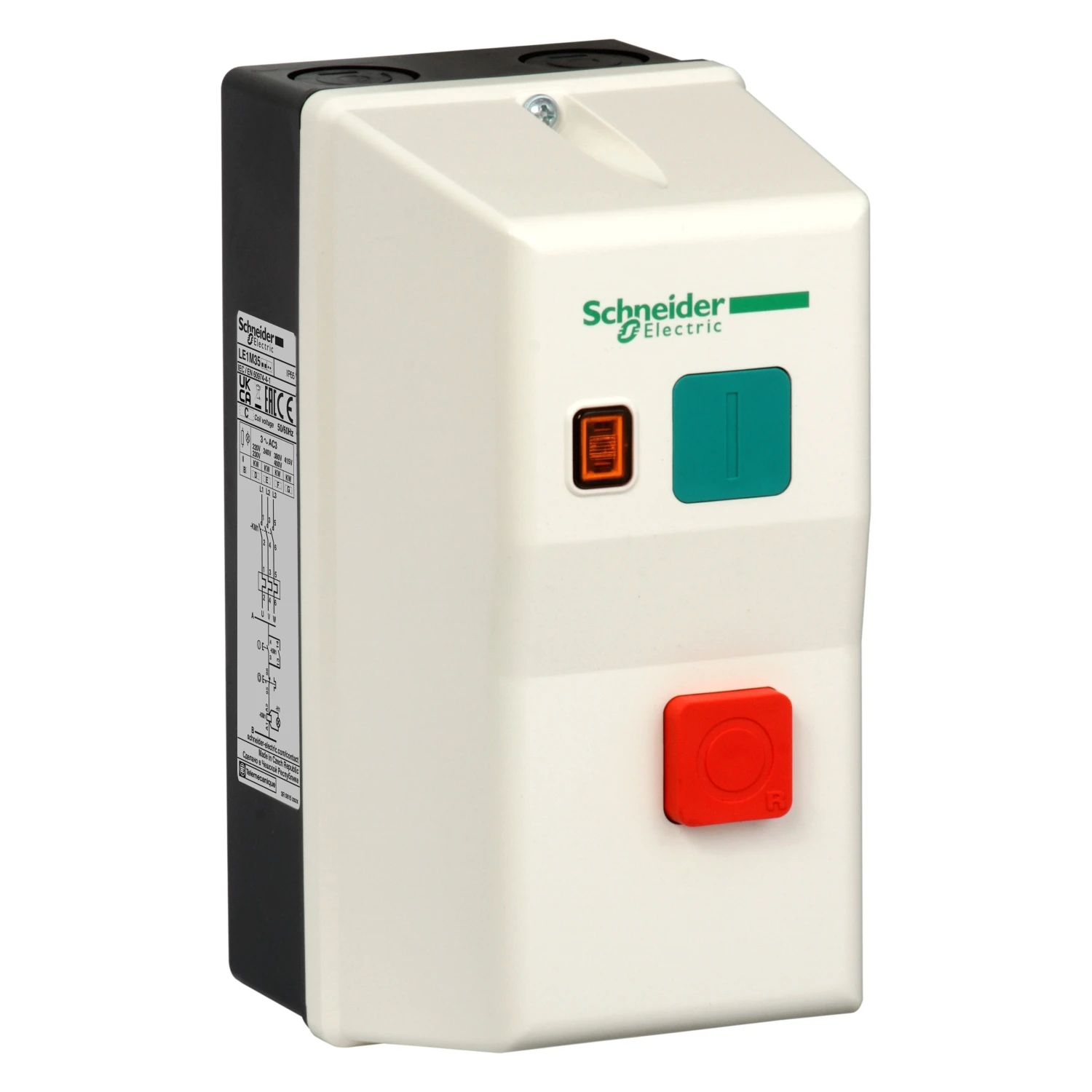

Schneider Electric TeSys LE, enclosed DOL starter, 1,8...2,6A, 415 V AC coil - Image 2

Schneider Electric TeSys LE, enclosed DOL starter, 1,8…2,6A, 415 V AC coil

£144.79 Incl. VAT

TeSys LE, enclosed DOL starter, 1,8…2,6A, 415 V AC coil. range: TeSys – product name: TeSys LE – device short name: LE1M – device application: standard – utilisation category: AC-3 – device composition: contactor, earth terminal, neutral terminal, thermal overload relay – motor power kW: 0.37 kW at 220/230 V AC 50/60 Hz, 0.37 kW at 240 V AC 50/60 Hz, 0.75 kW at 415 V AC 50/60 Hz, 1.1 kW at 380/400 V AC 50/60 Hz – control type: push-button start green I, push-button stop/reset red O. · · · Polycarbonate enclosure provides high level protection against water, dust and mechanical compact · · Environmentally friendly product · · Good performance on motor protection against overload, work with overload relay · · Easy to use with pushbuttons at the front · · Multiple resetting methods: manual & remotely

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LE1M35N708 Categories: , , , , , Brand: Product Code: 2500691558

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Depth 108.00 mm Width 78.00 mm Height 160.00 mm Number of command positions 2.00 Rated operation power at AC-3, 400 V 1.10 kW Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Number of indicator lights 1.00 Rated operation power at AC-3, 230 V, 3-phase 0.37 kW Ambient temperature, upper operating limit 40.00 °C Rated operation current at AC-3, 400 V 2.60 A Rated power, 460 V, 60 Hz, 3-phase 0.75 kW Rated power, 575 V, 60 Hz, 3-phase 1.10 kW Rated conditional short-circuit current, type 1, 480 Y/277 V – A Rated conditional short-circuit current, type 1, 600 Y/347 V – A Rated conditional short-circuit current, type 2, 230 V – A Rated conditional short-circuit current, type 2, 400 V – A Rated operation current Ie 2.60 A Rated control supply voltage at DC – – – V Overload release current setting 1.80 – 2.60 A Rated control supply voltage at AC 50 Hz 415.00 – 415.00 V Rated control supply voltage at AC 60 Hz 415.00 – 415.00 V With transformer No Rail mounting possible No Supporting protocol for PROFIBUS No Suitable for emergency stop No Supporting protocol for MODBUS No Supporting protocol for TCP/IP No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for ASI No External reset possible Yes Temperature compensated overload protection Yes With fuse No Supporting protocol for SafetyBUS p No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for LON No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No With short-circuit release No Supporting protocol for PROFINET IO No Supporting protocol for other bus systems No Supporting protocol for PROFINET CBA No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for PROFIsafe No · Technical Data Sheet – Click to Download
