Schneider Electric TeSys LE Enclosed DOL Starter 3.7-5.5A 230V
Schneider Electric TeSys LE Enclosed DOL Starter 3.7-5.5A 230V

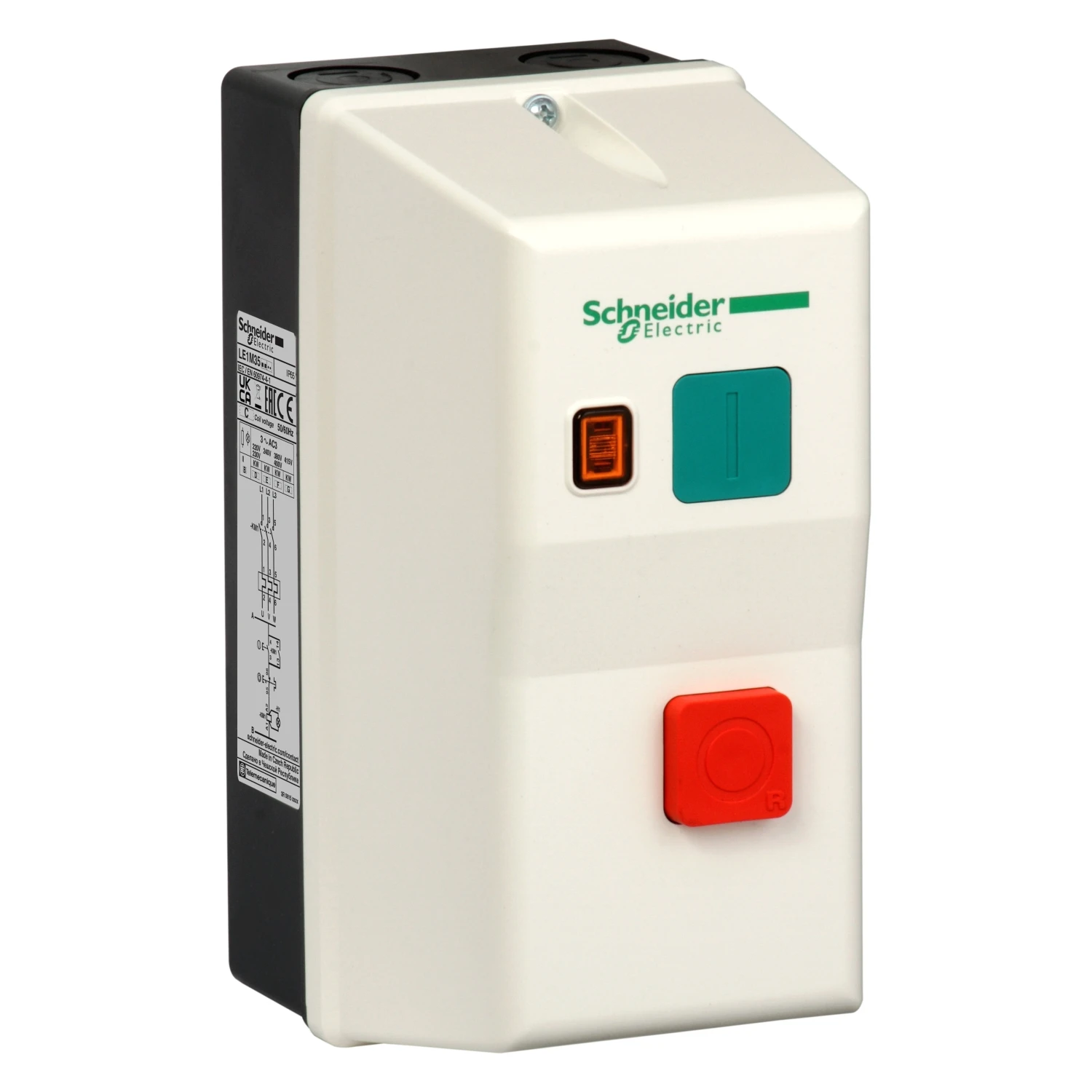

Schneider Electric TeSys LE Enclosed DOL Starter 3.7-5.5A 230V - Image 2

Schneider Electric TeSys LE Enclosed DOL Starter 3.7-5.5A 230V

£126.19 Incl. VAT

TeSys enclosed starter with contactor and thermal overload relay, 3 poles, for non-reversing motor control applications up to 2.2kW@400V AC-3. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. Self-extinguishing ABS material enclosure, IP65 protection. It includes a thermal overload relay LR2K and contactor LC1K with a control circuit 230V 50/60Hz, to be wired by the customer. Equipped with a green pushbutton Start (I), a red pushbutton Stop/Reset (O), and a yellow operating indicator. To be combined with an external short circuit protection component, to reach a type 1 or type 2 coordination. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with contactor and thermal overload relay, 3 poles, for non-reversing motor control applications up to 2.2kW@400V AC-3. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. · · Self-extinguishing ABS material enclosure, IP65 protection. · · It includes a thermal overload relay LR2K and contactor LC1K with a control circuit 230V 50/60Hz, to be wired by the customer. · · Equipped with a green pushbutton Start (I), a red pushbutton Stop/Reset (O), and a yellow operating indicator.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LE1M35P712 Categories: , , Brand: Product Code: 2500658553

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Width 78 mm Height 160 mm Number of command positions 2 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 2.2 kW Number of auxiliary contacts as normally closed contact 0 Number of indicator lights 1 Rated operation power at AC-3, 230 V, 3-phase 1.1 kW Rated power, 460 V, 60 Hz, 3-phase 2.2 kW Rated power, 575 V, 60 Hz, 3-phase 3 kW Rated operation current at AC-3, 400 V 5.5 A Ambient temperature, upper operating limit 40 °C Rated conditional short-circuit current, type 2, 400 V – A Rated conditional short-circuit current, type 2, 230 V – A Rated conditional short-circuit current, type 1, 480 Y/277 V – A Rated conditional short-circuit current, type 1, 600 Y/347 V – A Rated operation current Ie 5.5 A Depth 108 mm Overload release current setting 3.7 – 5.5 A Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V Rated control supply voltage at DC – – – V Temperature compensated overload protection Yes Supporting protocol for SafetyBUS p No With fuse No External reset possible Yes With short-circuit release No Supporting protocol for EtherNet/IP No Supporting protocol for DeviceNet Safety No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Supporting protocol for PROFIsafe No Suitable for emergency stop No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Supporting protocol for AS-Interface Safety at Work No Rail mounting possible No Supporting protocol for other bus systems No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for PROFIBUS No Supporting protocol for ASI No Supporting protocol for CAN No Supporting protocol for MODBUS No Supporting protocol for INTERBUS No Supporting protocol for Data-Highway No With transformer No Supporting protocol for LON No Supporting protocol for TCP/IP No · Technical Data Sheet – Click to Download
