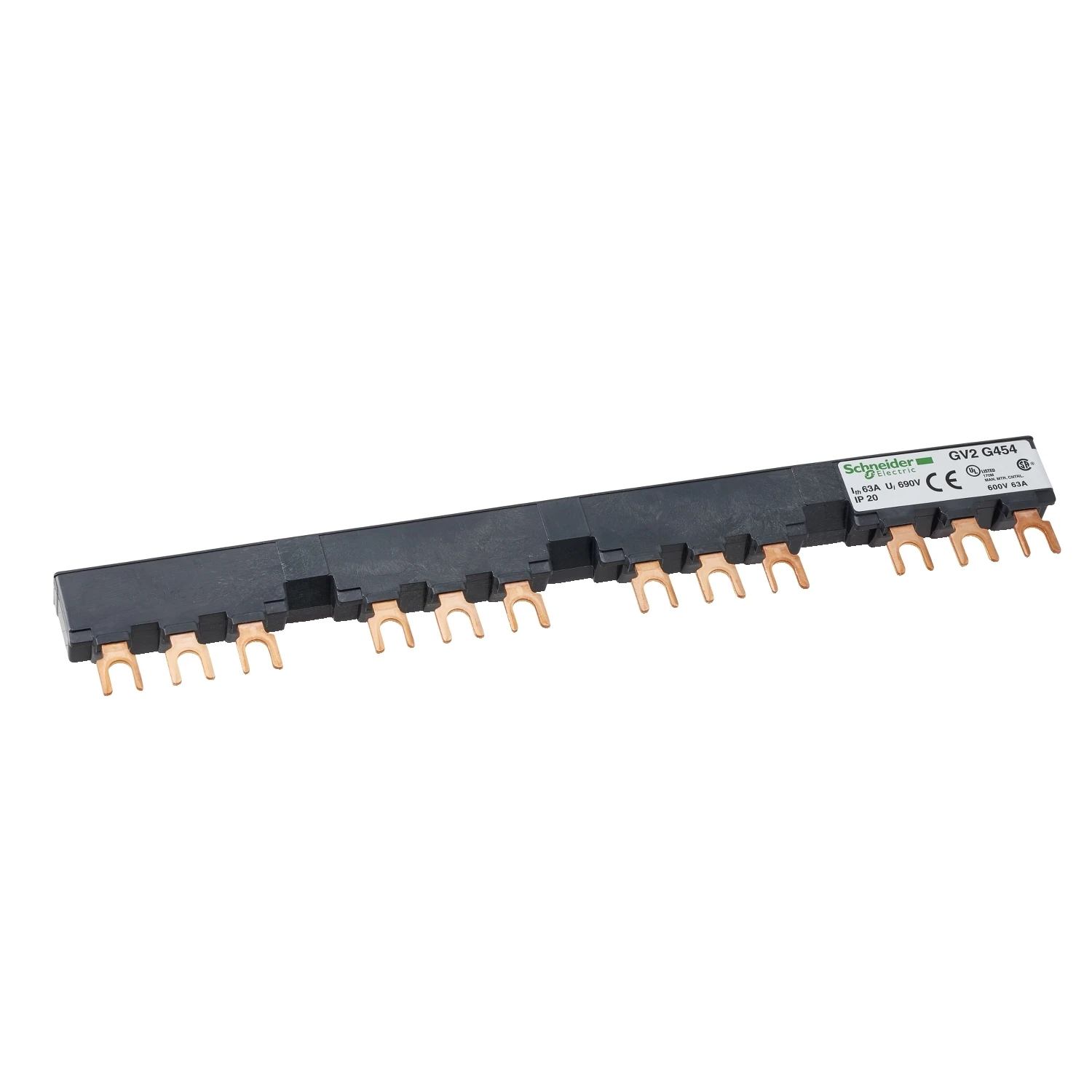

Schneider Electric TeSys Linergy 4 Tap-offs Comb Busbar 63A 54mm Pitch
£21.50 Incl. VAT
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh). · · · TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. · · For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. · · The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). · · Green Premium compliant (RoHS/REACh). · · Compatibility code: GV2G
Out of Stock
Description
Technical Specifications Technical Specifications Phase busbar Rated permanent current Iu 63 A Number of phases 3 Rated surge voltage – kV Conditioned rated short-circuit current Iq 11 kA Suitable for number of devices 4 Number of poles 3 Cross section – mm² Length 216 mm Max. rated operation voltage Ue 690 V Rated short-time withstand current lcw – kA Module width 54 mm Suitable for devices with N-busbar No Suitable for devices with auxiliary switch No Insulated Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188186
