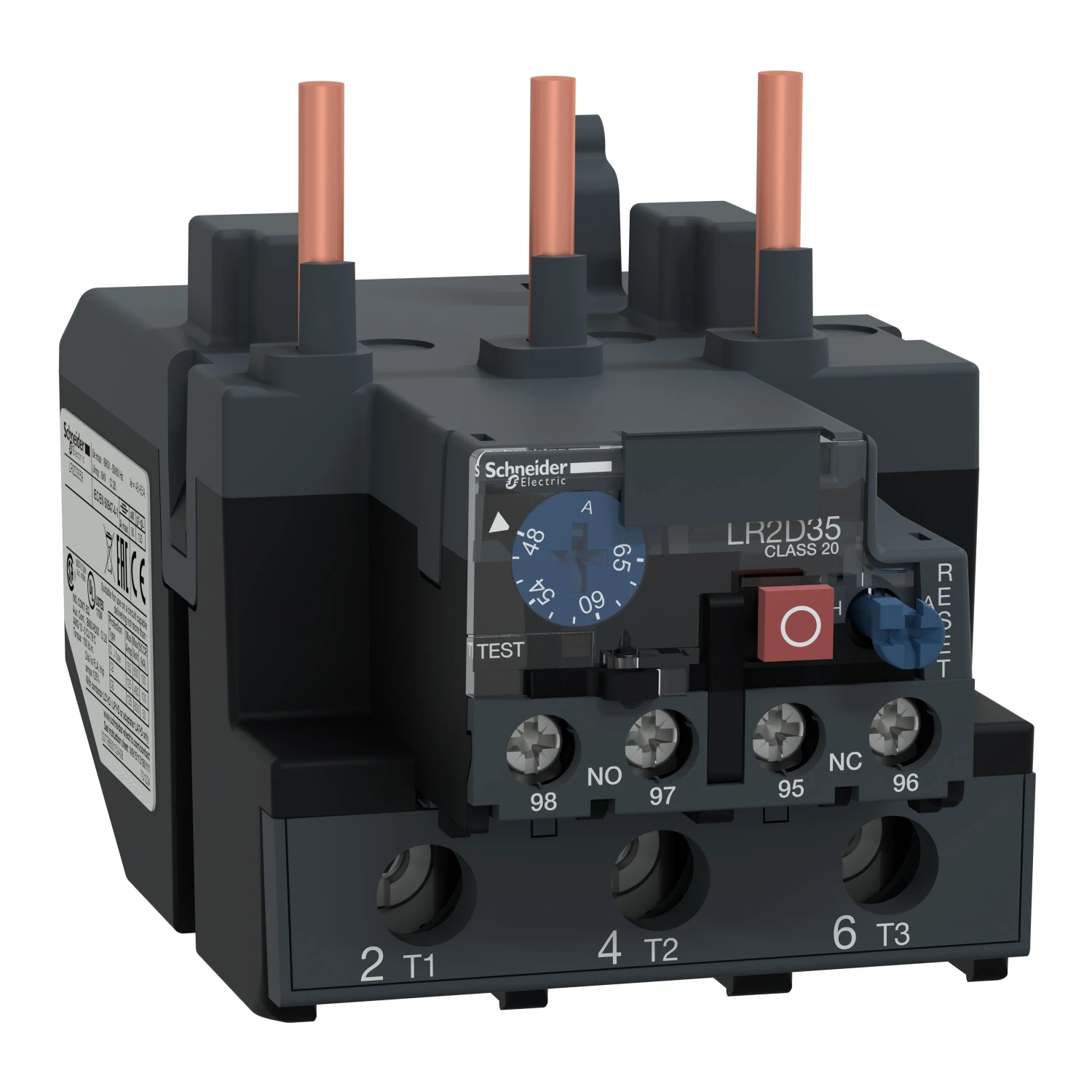

Schneider Electric TeSys LRD thermal overload relays, 48…65A, class 20

TeSys LRD thermal overload relay, 65A/1000V, thermal setting range 48-65A, tripping class 20, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). · · · TeSys LRD thermal overload relay, 65A/1000V, thermal setting range 48-65A, tripping class 20, for protection of 3-phase motors 30kW@400V. · · Differential device with phase failure and load unbalance detection. · · It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. · · Settings are protected by a transparent cover lockable by sealing. · · Connection by screw clamp terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95.
