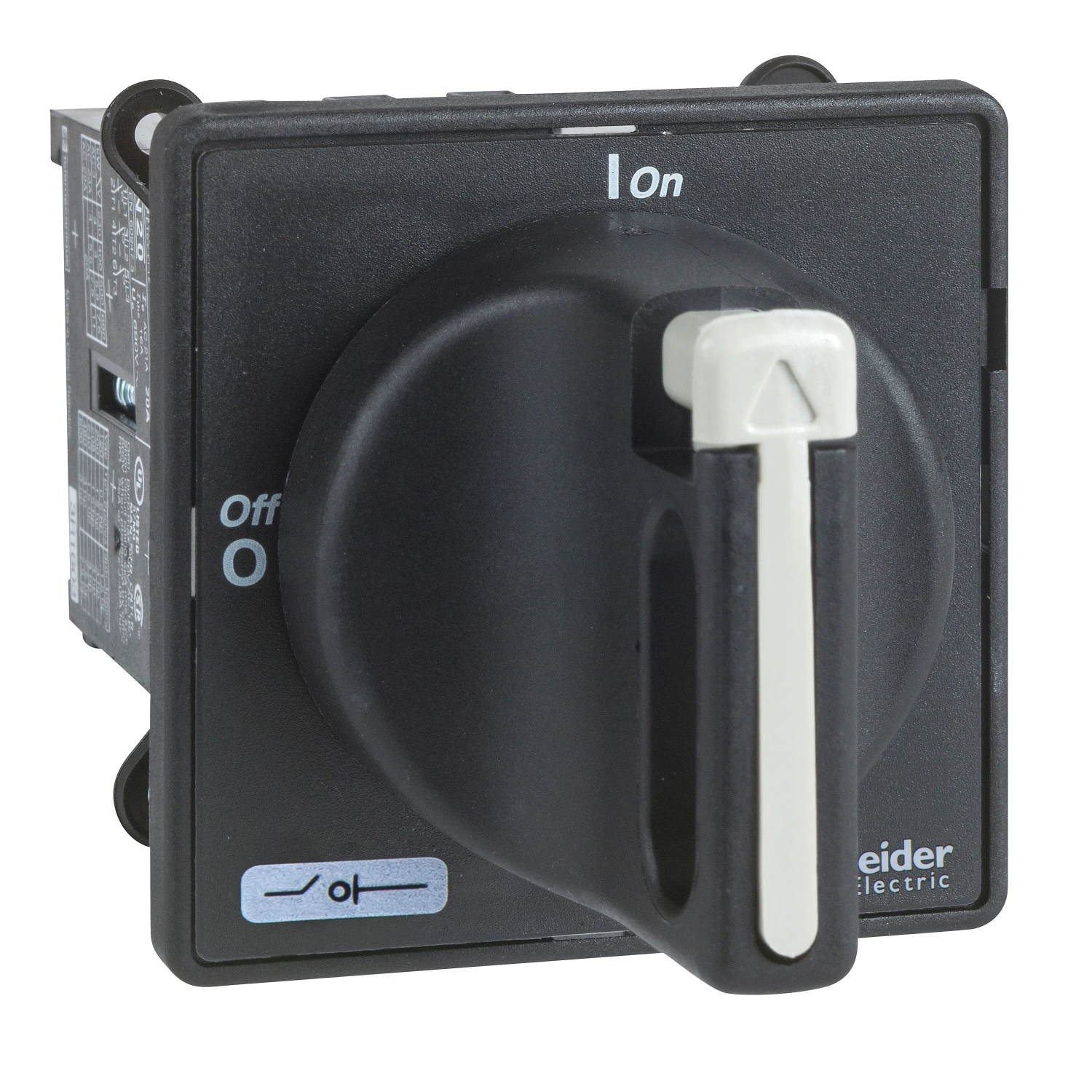

Schneider Electric Tesys Mini-Vario Switch Disconnector 12A On Door
Awaiting product image

Schneider Electric Tesys Mini-Vario Switch Disconnector 12A On Door

£34.54 Incl. VAT

TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. · · Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. · · Intended for main switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with central fixing on door, ensuring IP65 to the mounting.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VBDN12 Categories: , Brand: Product Code: 2500238191

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated short-time withstand current lcw 0.14 kA Rated operation power at AC-23, 400 V 4.00 kW Conditioned rated short-circuit current Iq 6.00 kA Number of auxiliary contacts as change-over contact 0.00 Rated permanent current at AC-23, 400 V 8.10 A Rated operation power at AC-3, 400 V 3.00 kW Number of switches 1.00 Switching power at 400 V – kW Max. rated operation voltage Ue AC 690.00 V Rated permanent current at AC-21, 400 V 12.00 A Rated permanent current Iu 12.00 A Number of poles 3.00 Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated operating voltage 0.00 – 690.00 V Interlockable Yes Suitable for front mounting centre Yes Motor drive optional No Version as reversing switch No Voltage release optional No Version as main switch Yes Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No Suitable for distribution board installation No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
