Schneider Electric TeSys Mini-Vario Switch Disconnector 32A On Door
Schneider Electric TeSys Mini-Vario Switch Disconnector 32A On Door
Schneider Electric TeSys Mini-Vario Switch Disconnector 32A On Door - Image 2

Schneider Electric TeSys Mini-Vario Switch Disconnector 32A On Door

£59.77 Incl. VAT

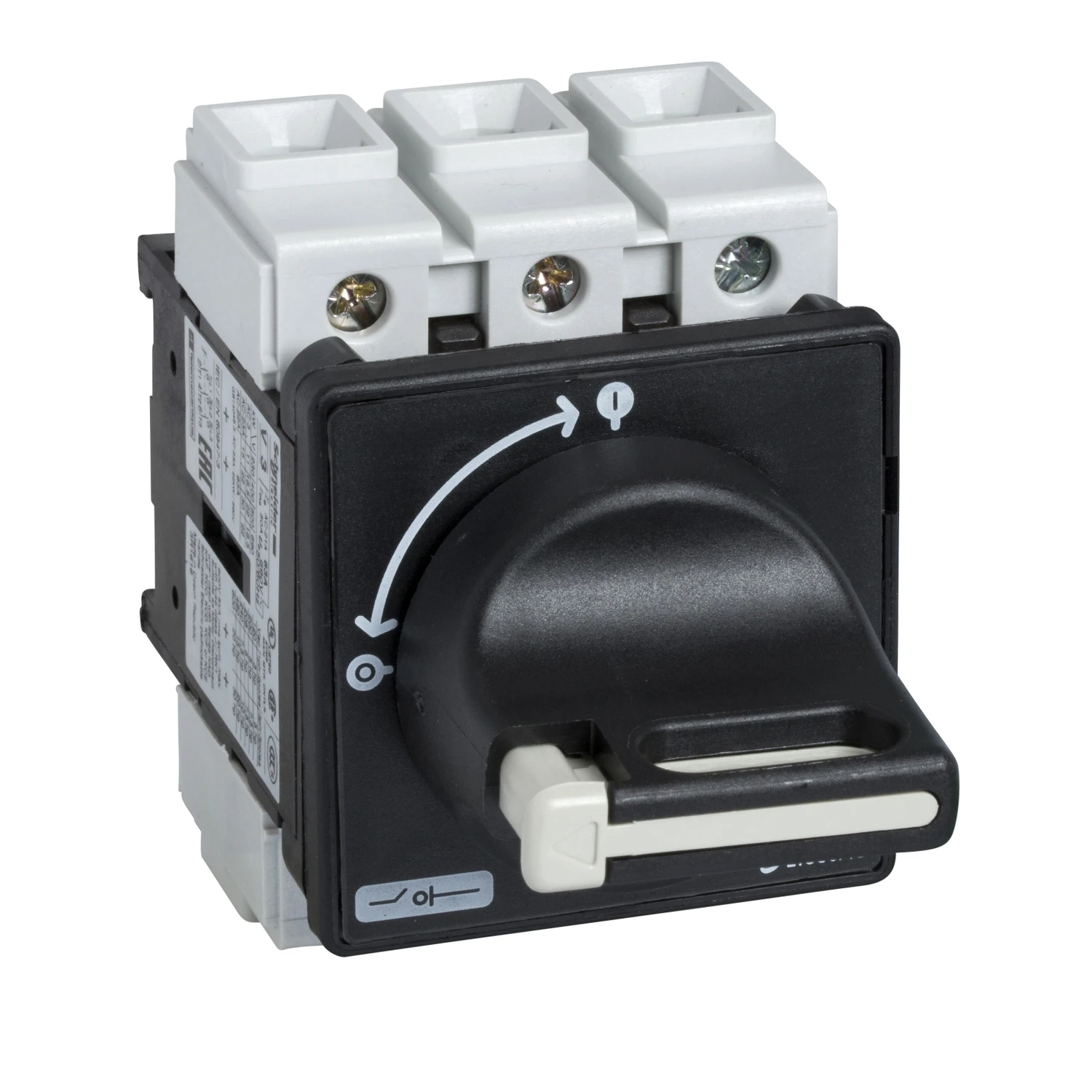

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a black handle with black 60x60mm front plate KAF1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. · · Complete unit composed of a switch body V1, a black handle with black 60x60mm front plate KAF1PZ. · · Intended for main switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VBF1 Category: Brand: Product Code: 2500249893

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 3.00 Rated operation power at AC-23, 400 V 11.00 kW Rated permanent current at AC-23, 400 V 21.80 A Conditioned rated short-circuit current Iq 10.00 kA Rated operation power at AC-3, 400 V 7.50 kW Rated short-time withstand current lcw 0.38 kA Rated permanent current Iu 32.00 A Number of switches 1.00 Number of auxiliary contacts as change-over contact 0.00 Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 32.00 A Max. rated operation voltage Ue AC 690.00 V Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated operating voltage 0.00 – 690.00 V Voltage release optional No Suitable for front mounting 4-hole Yes Suitable for front mounting centre No Version as reversing switch No Motor drive optional No Interlockable Yes Suitable for distribution board installation No Suitable for intermediate mounting No Version as main switch Yes Motor drive integrated No Version as maintenance-/service switch Yes Version as safety switch No Version as emergency stop installation No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
