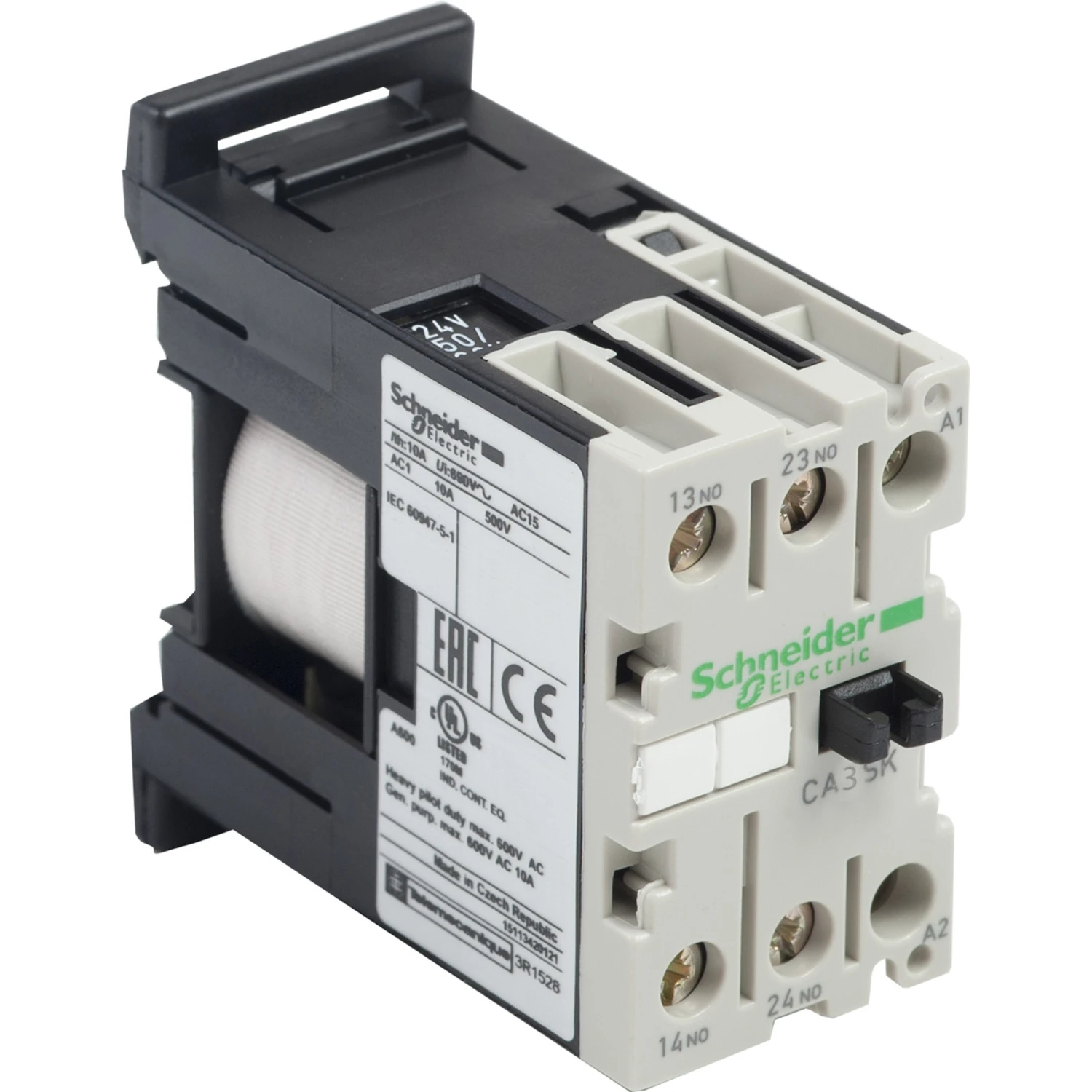

Schneider Electric Tesys Sk Control Relay 1 NO + 1 NC <= 690V 24V DC Standard Coil
£62.89 Incl. VAT
TeSys SK mini-control relay, 2 contacts (1NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). · · · TeSys SK mini-control relay, 2 contacts (1NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Width: 27mm · · It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. · · For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. · · Compact (27mm width), for clipping on a 35mm DIN rail.
Out of Stock
Description
Technical Specifications Technical Specifications Contactor relay Number of auxiliary contacts as normally closed contact 1.00 Number of auxiliary contacts as normally open contact 1.00 Rated operation current Ie, 400 V 10.00 A Number of auxiliary contacts as normally closed contact, delayed switching 0.00 Number of auxiliary contacts as normally open contact, leading 0.00 Number of auxiliary contacts as change-over contact 0.00 Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 24.00 – 24.00 V Interface No With LED indication No · Technical Data Sheet – Click to Download
