Schneider Electric Tesys Sk Control Relay 2 NO <= 690V 230V AC Coil
Schneider Electric Tesys Sk Control Relay 2 NO <= 690V 230V AC Coil

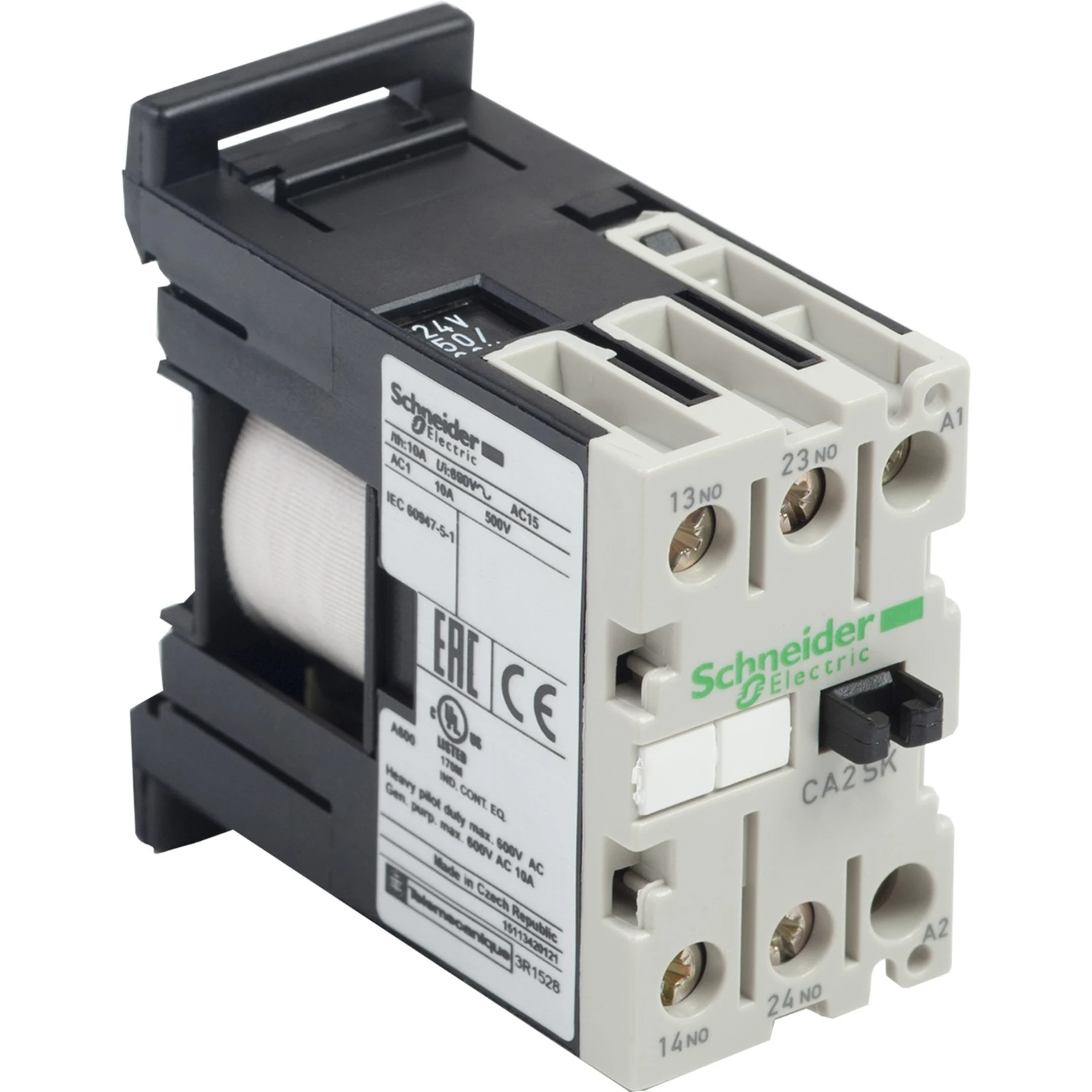

Schneider Electric Tesys Sk Control Relay 2 NO <= 690V 230V AC Coil - Image 2

Schneider Electric Tesys Sk Control Relay 2 NO <= 690V 230V AC Coil

£38.12 Incl. VAT

TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). · · · TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Width: 27mm · · It provides a 230V 50/60Hz AC control circuit, connection by screw terminals. · · For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. · · Compact (27mm width), for clipping on a 35mm DIN rail.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CA2SK20P7 Categories: , Brand: Product Code: 2500213599

Description

Technical Specifications  Technical Specifications Contactor relay Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 2.00 Rated operation current Ie, 400 V 10.00 A Number of auxiliary contacts as normally closed contact, delayed switching 0.00 Number of auxiliary contacts as change-over contact 0.00 Number of auxiliary contacts as normally open contact, leading 0.00 Rated control supply voltage at AC 50 Hz 230.00 – 230.00 V Rated control supply voltage at DC – – – V Interface No Rated control supply voltage at AC 60 Hz 230.00 – 230.00 V With LED indication No · Technical Data Sheet – Click to Download
