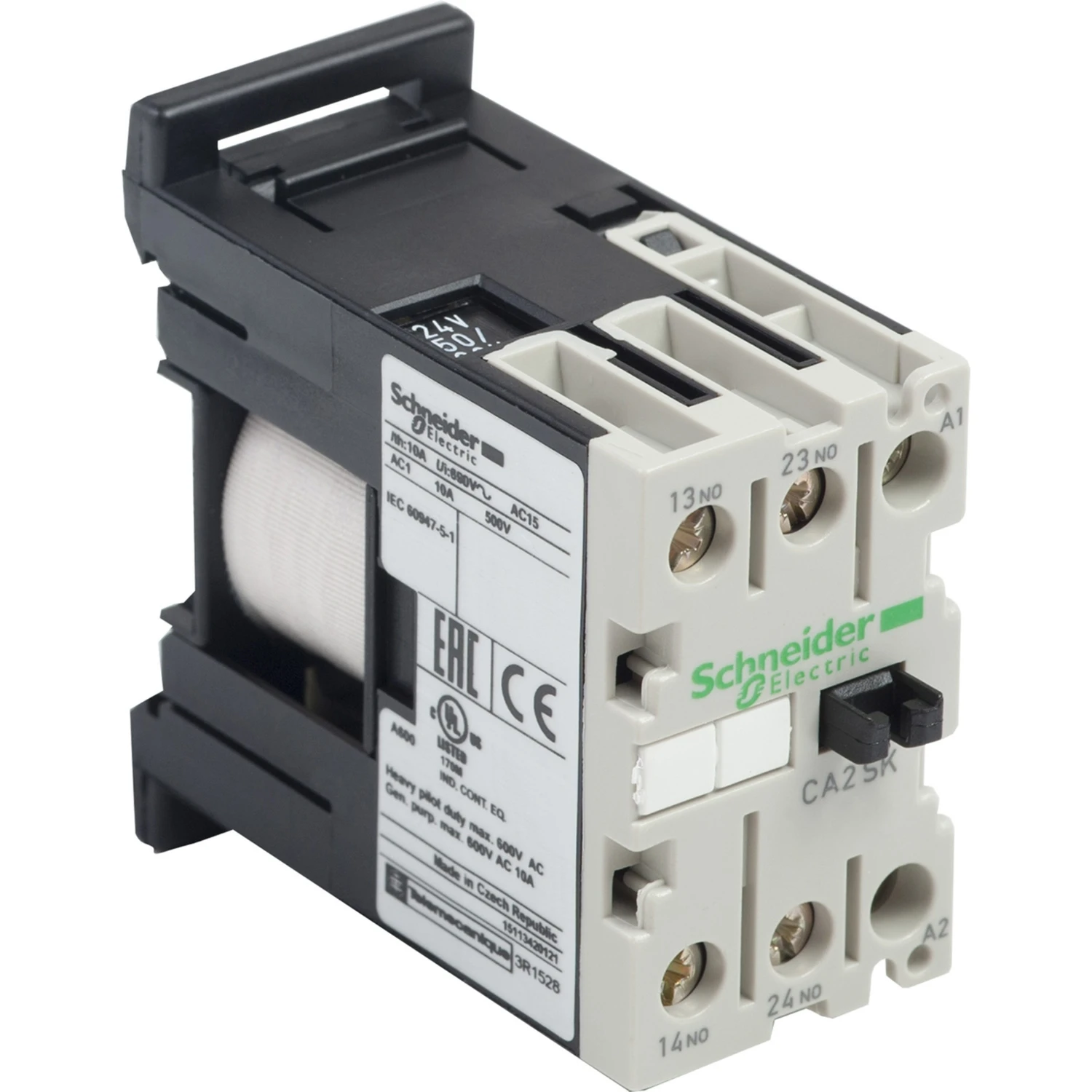

Schneider Electric Tesys Sk Control Relay 2 NO <= 690V 110V AC Coil
£38.12 Incl. VAT
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). · · · TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Width: 27mm · · It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. · · For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. · · Compact (27mm width), for clipping on a 35mm DIN rail.
Out of Stock
Description
Technical Specifications Technical Specifications Contactor relay Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 2.00 Number of auxiliary contacts as change-over contact 0.00 Rated operation current Ie, 400 V 10.00 A Number of auxiliary contacts as normally open contact, leading 0.00 Number of auxiliary contacts as normally closed contact, delayed switching 0.00 Rated control supply voltage at AC 50 Hz 110.00 – 110.00 V Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 110.00 – 110.00 V With LED indication No Interface No · Technical Data Sheet – Click to Download
