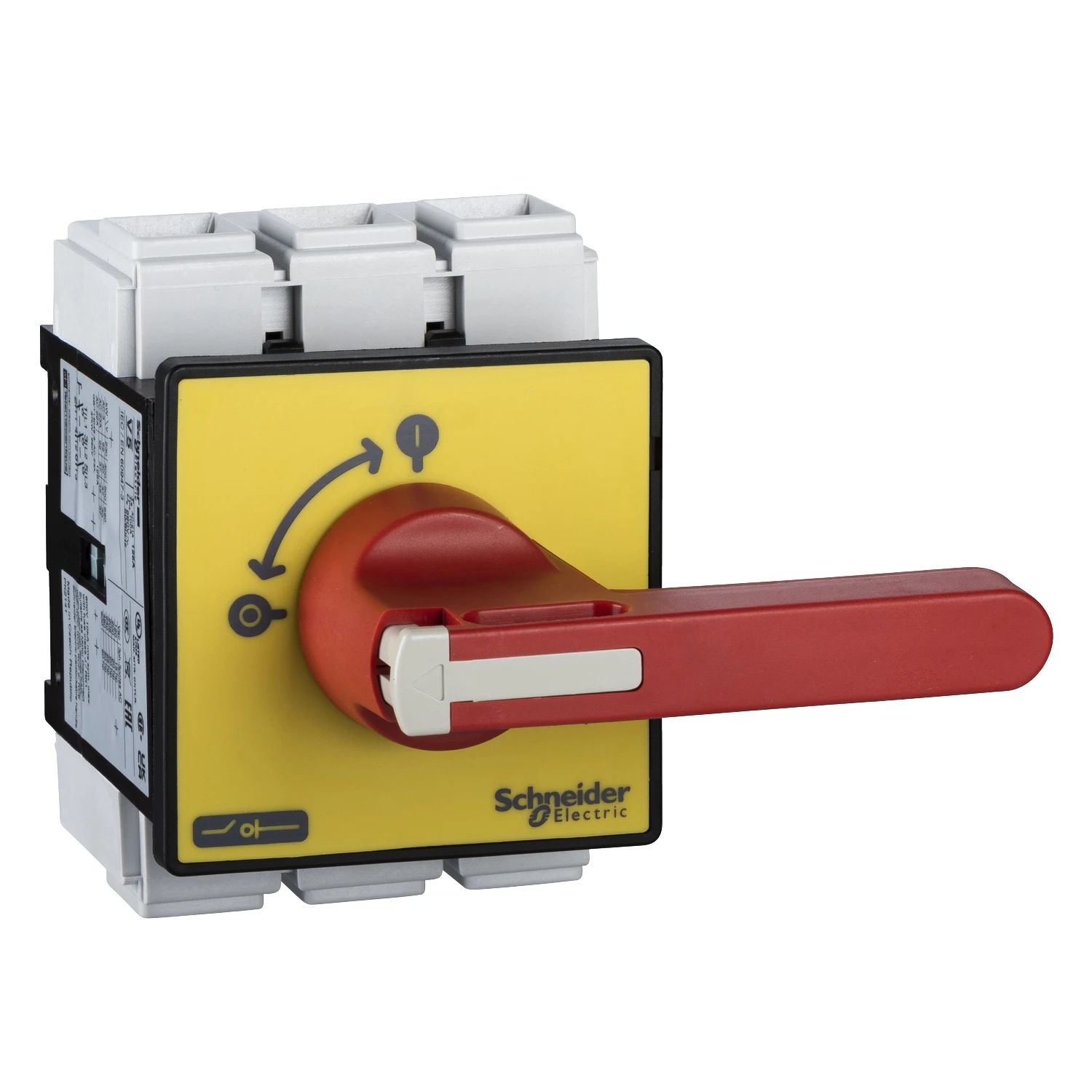

Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 125A On Door
£219.14 Incl. VAT
TeSys Vario switch disconnector for door mounting, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. · · Complete unit composed of a switch body V5, a red handle with yellow 90x90mm front plate KCF3PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 30 kW Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Conditioned rated short-circuit current Iq 10 kA Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 125 A Rated short-time withstand current lcw 1.5 kA Number of switches 1 Rated permanent current at AC-23, 400 V 68.5 A Rated operation power at AC-23, 400 V 37 kW Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 125 A Max. rated operation voltage Ue AC 690 V Rated operating voltage 0 – 690 V Interlockable Yes Suitable for intermediate mounting No Suitable for distribution board installation Yes Suitable for front mounting centre No Motor drive integrated No Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes Version as emergency stop installation Yes Suitable for front mounting 4-hole Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
