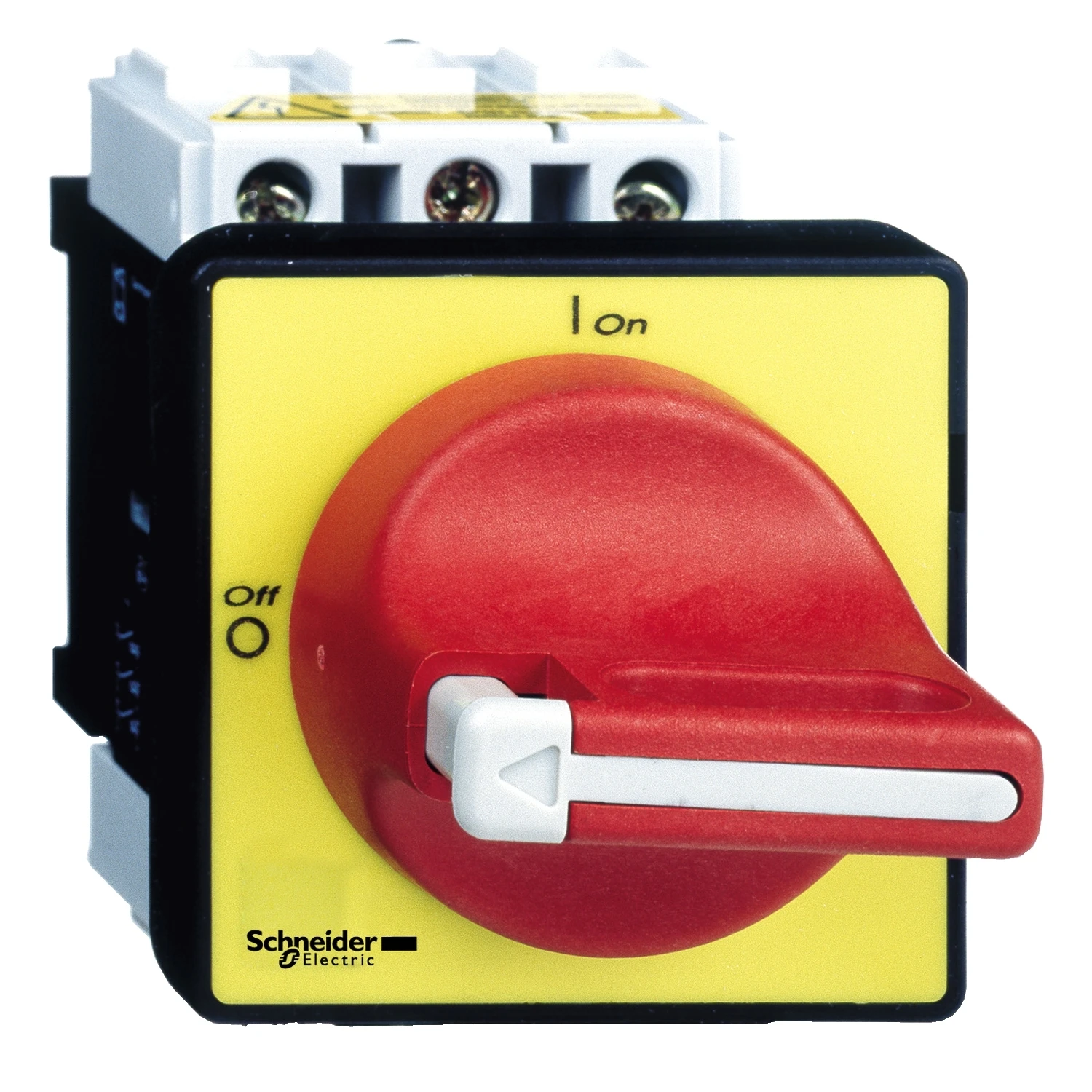

Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 12A On Door
£39.85 Incl. VAT
TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. · · Complete unit composed of a switch body V02, a red handle with yellow 60x60mm front plate KCD1PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with central fixing on door, ensuring IP65 to the mounting.
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Conditioned rated short-circuit current Iq 10.00 kA Number of auxiliary contacts as change-over contact 0.00 Rated permanent current Iu 12.00 A Rated operation power at AC-3, 400 V 3.00 kW Number of switches 1.00 Rated short-time withstand current lcw 0.30 kA Rated permanent current at AC-21, 400 V 12.00 A Switching power at 400 V – kW Rated operation power at AC-23, 400 V 4.00 kW Max. rated operation voltage Ue AC 690.00 V Number of auxiliary contacts as normally open contact 0.00 Rated permanent current at AC-23, 400 V 8.10 A Number of poles 3.00 Number of auxiliary contacts as normally closed contact 0.00 Rated operating voltage 0.00 – 690.00 V Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes Version as emergency stop installation Yes Suitable for front mounting 4-hole No Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Interlockable Yes Suitable for front mounting centre Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
