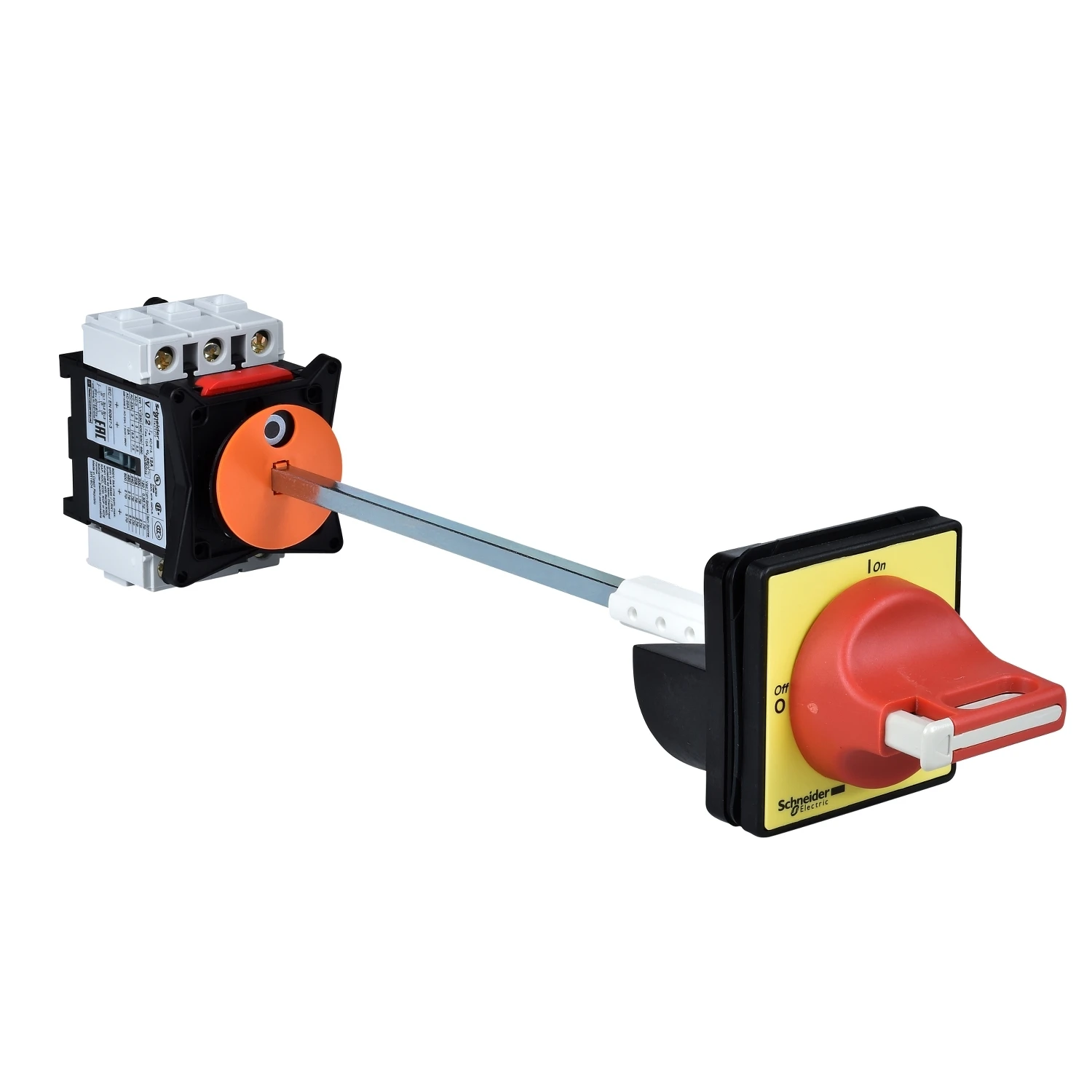

Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 20A Back of Enclosure
Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 20A Back of Enclosure
Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 20A Back of Enclosure - Image 2

Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 20A Back of Enclosure

£59.77 Incl. VAT

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body V01, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. · · Complete unit composed of a switch body V01, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with central fixing on door, ensuring IP65 to the mounting.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCCD01 Categories: , Brand: Product Code: 2500134894

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-23, 400 V 11.00 A Number of switches 1.00 Rated short-time withstand current lcw 0.30 kA Conditioned rated short-circuit current Iq 10.00 kA Rated operation power at AC-23, 400 V 5.50 kW Number of auxiliary contacts as change-over contact 0.00 Switching power at 400 V – kW Max. rated operation voltage Ue AC 690.00 V Rated permanent current at AC-21, 400 V 20.00 A Rated permanent current Iu 20.00 A Number of poles 3.00 Number of auxiliary contacts as normally open contact 0.00 Rated operation power at AC-3, 400 V 4.00 kW Number of auxiliary contacts as normally closed contact 0.00 Rated operating voltage 0.00 – 690.00 V Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Version as maintenance-/service switch No Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting 4-hole No Suitable for front mounting centre Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
