Schneider Electric Tesys Vario Emergency Stop Switch Disconnector 80A On Door
£108.91 Incl. VAT

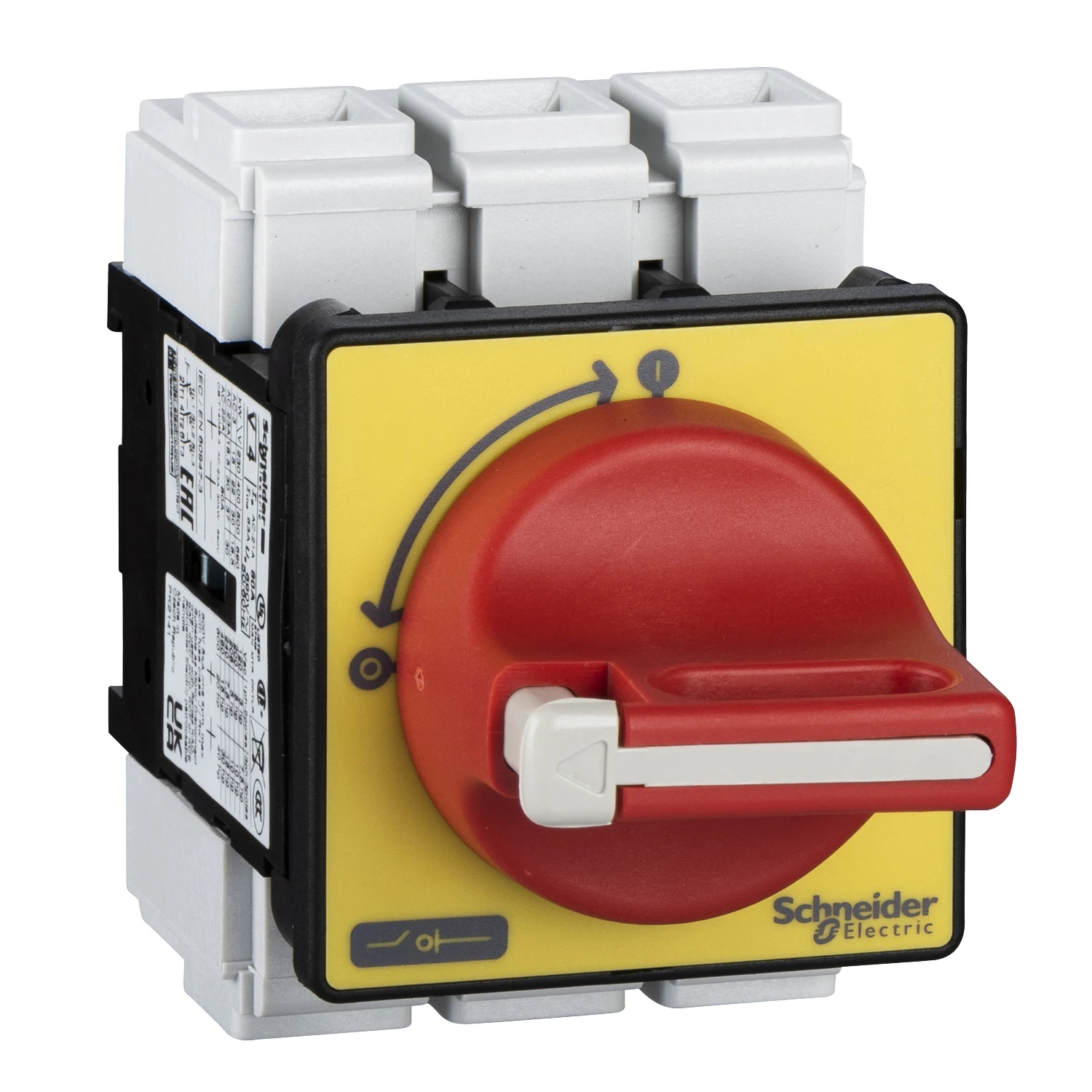

TeSys Vario switch disconnector for door mounting, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. · · Complete unit composed of a switch body V4, a red handle with yellow 60x60mm front plate KCF2PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Rating: 80A · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Conditioned rated short-circuit current Iq 10 kA Rated operation power at AC-3, 400 V 22 kW Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Rated permanent current Iu 80 A Rated short-time withstand current lcw 0.96 kA Number of auxiliary contacts as change-over contact 0 Number of switches 1 Switching power at 400 V – kW Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V 30 kW Rated permanent current at AC-21, 400 V 80 A Rated permanent current at AC-23, 400 V 57 A Rated operating voltage 0 – 690 V Version as maintenance-/service switch No Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for intermediate mounting No Interlockable Yes Suitable for front mounting centre No Suitable for front mounting 4-hole Yes Suitable for distribution board installation Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
