Schneider Electric TeSys Vario enclosed
£53.12 Incl. VAT

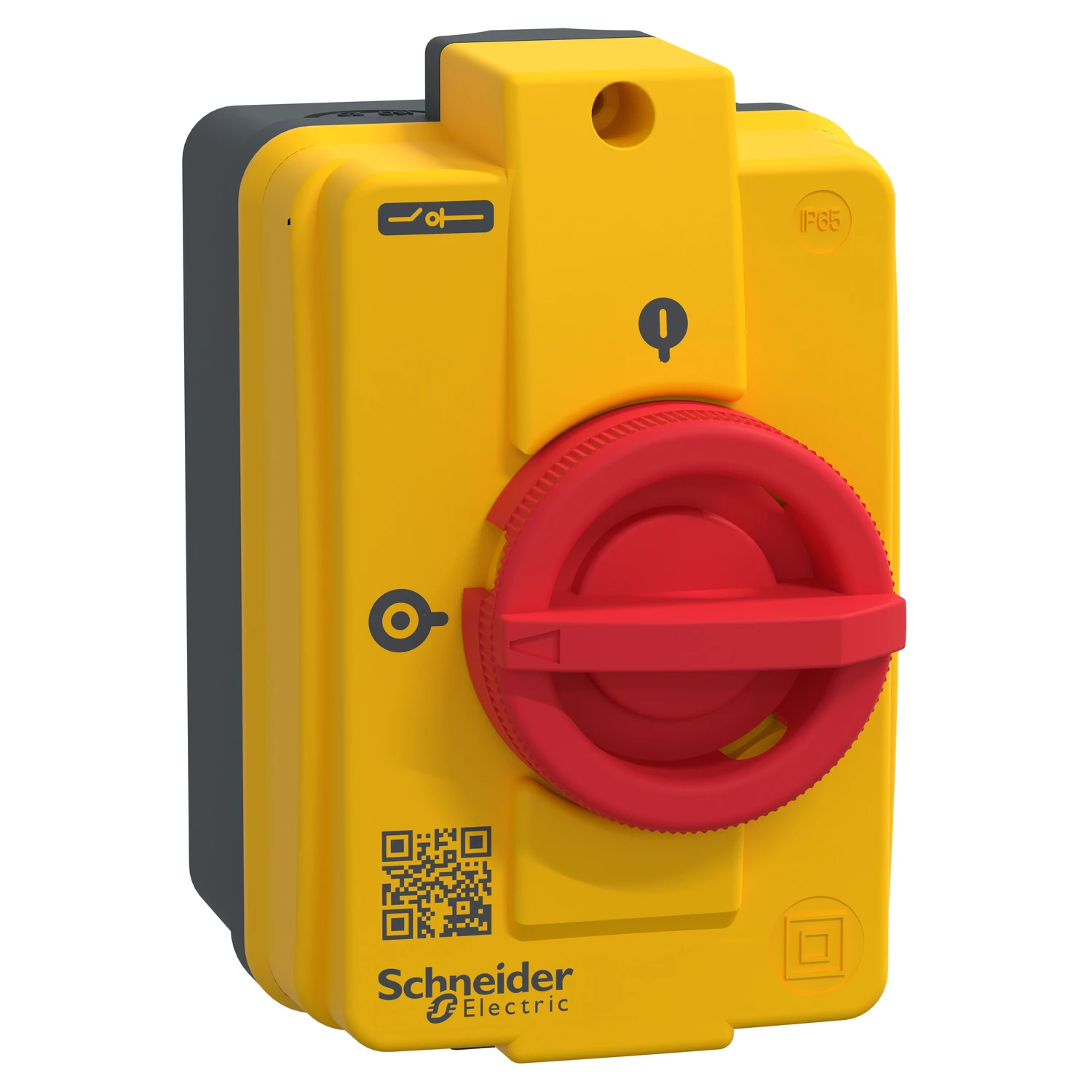

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole mini-Vario switch body VN20 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. · · Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). · · It includes a 3-pole mini-Vario switch body VN20 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of poles 3.00 Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated short-time withstand current lcw 0.14 kA Number of switches 1.00 Rated permanent current at AC-21, 400 V 16.00 A Rated operation power at AC-23, 400 V 5.50 kW Max. rated operation voltage Ue AC 690.00 V Rated permanent current at AC-23, 400 V 11.00 A Switching power at 400 V 9.00 kW Rated operation power at AC-3, 400 V 4.00 kW Rated permanent current Iu 16.00 A Number of auxiliary contacts as change-over contact 0.00 Conditioned rated short-circuit current Iq 6.00 kA Rated operating voltage 0.00 – 690.00 V Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for front mounting 4-hole Yes Suitable for front mounting centre No Version as maintenance-/service switch No Version as reversing switch No Motor drive optional No Voltage release optional No Interlockable Yes Suitable for distribution board installation No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download
