Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed - Image 2

Schneider Electric TeSys Vario enclosed

£162.02 Incl. VAT

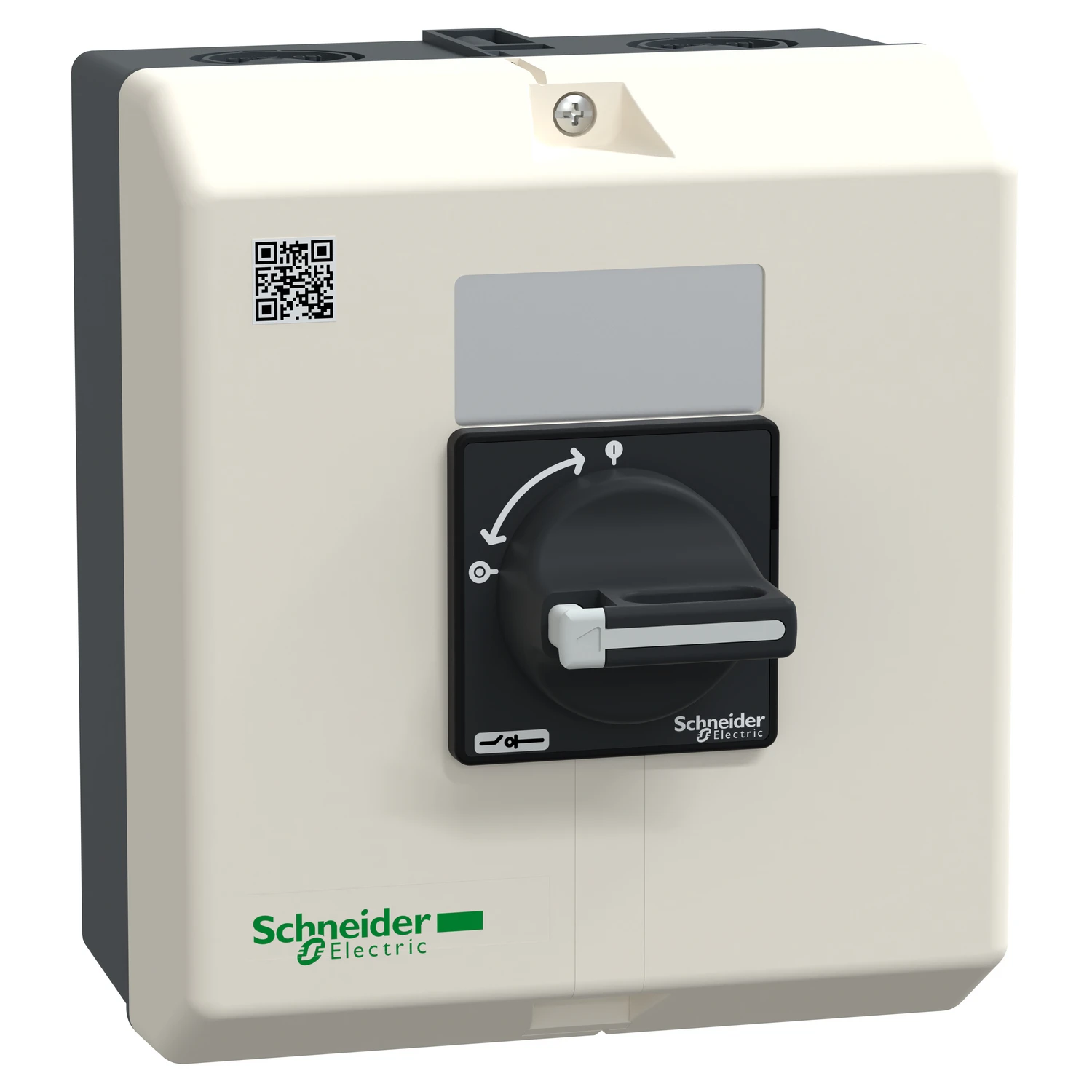

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main switching in motor applications up to 30kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VBF4GE Category: Brand: Product Code: 2500155845

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Black Device construction Complete device in housing Type of control element Short thumb-grip Degree of protection (IP), front side IP65 Type of electrical connection of main circuit Screw connection Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 22 kW Conditioned rated short-circuit current Iq 10 kA Rated permanent current Iu 63 A Rated short-time withstand current lcw 0.96 kA Number of auxiliary contacts as change-over contact 0 Switching power at 400 V – kW Rated permanent current at AC-23, 400 V 57 A Rated operation power at AC-23, 400 V 30 kW Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 80 A Rated operating voltage 690 – 690 V Version as safety switch No Version as emergency stop installation No Interlockable Yes Suitable for distribution board installation No Suitable for intermediate mounting No Version as main switch Yes Motor drive integrated No Version as maintenance-/service switch Yes Version as reversing switch No Motor drive optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Voltage release optional No · Technical Data Sheet – Click to Download
