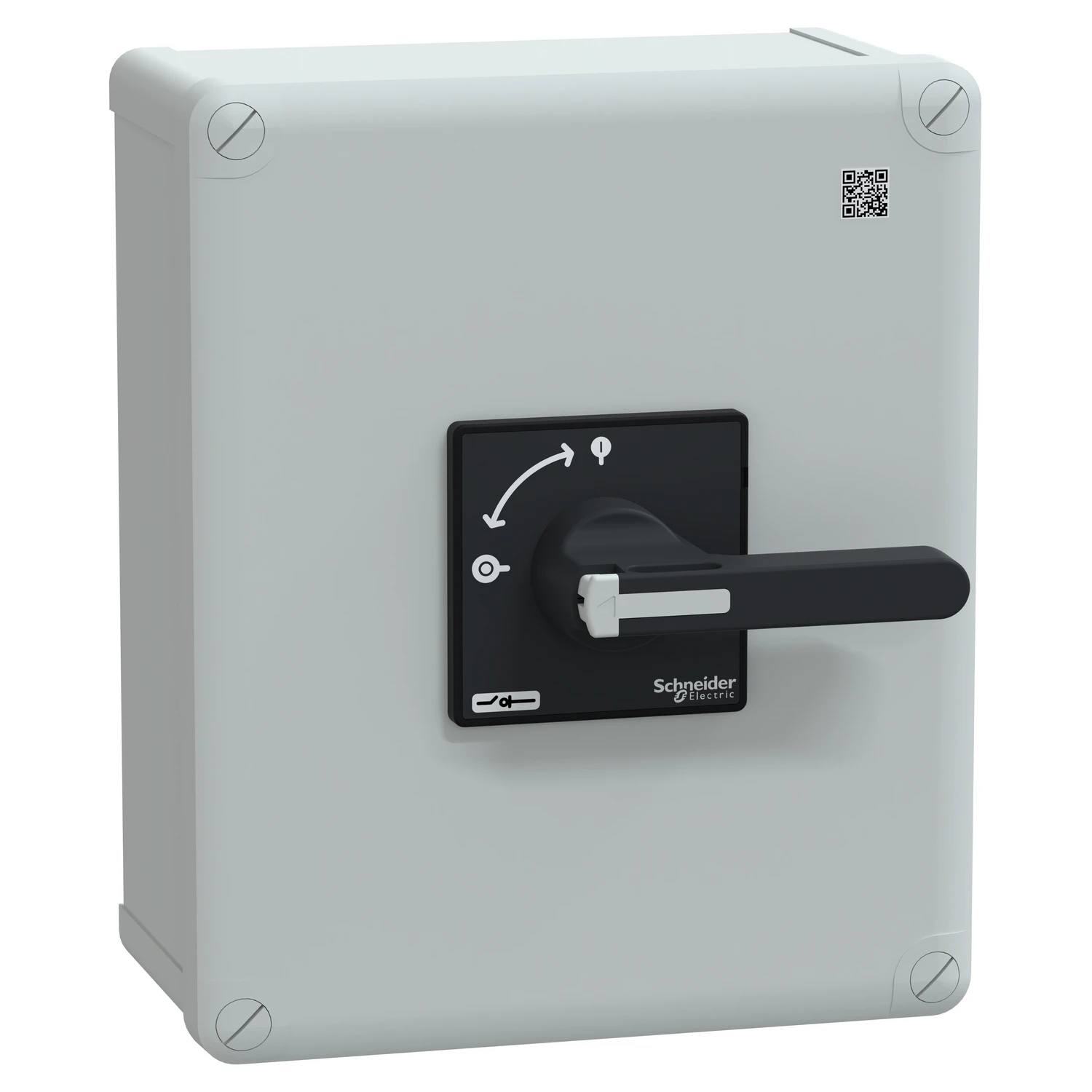

Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed - Image 2

Schneider Electric TeSys Vario enclosed

£269.50 Incl. VAT

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 100A 690V, for main switching in motor applications up to 37kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black long rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V5 with 1 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 100A 690V, for main switching in motor applications up to 37kW@400V AC-23. · · Enclosure providing IP65 protection, fitted with a black long rotary handle and black front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V5 with 1 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VBF5GEN Category: Brand: Product Code: 2500384149

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Conditioned rated short-circuit current Iq 10 kA Rated permanent current Iu 100 A Rated short-time withstand current lcw 1.5 kA Number of auxiliary contacts as change-over contact 0 Number of switches 1 Rated operation power at AC-23, 400 V 37 kW Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 125 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 68.5 A Number of poles 3 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 30 kW Number of auxiliary contacts as normally closed contact 0 Rated operating voltage 0 – 690 V Version as emergency stop installation No Version as safety switch No Version as main switch Yes Version as maintenance-/service switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
