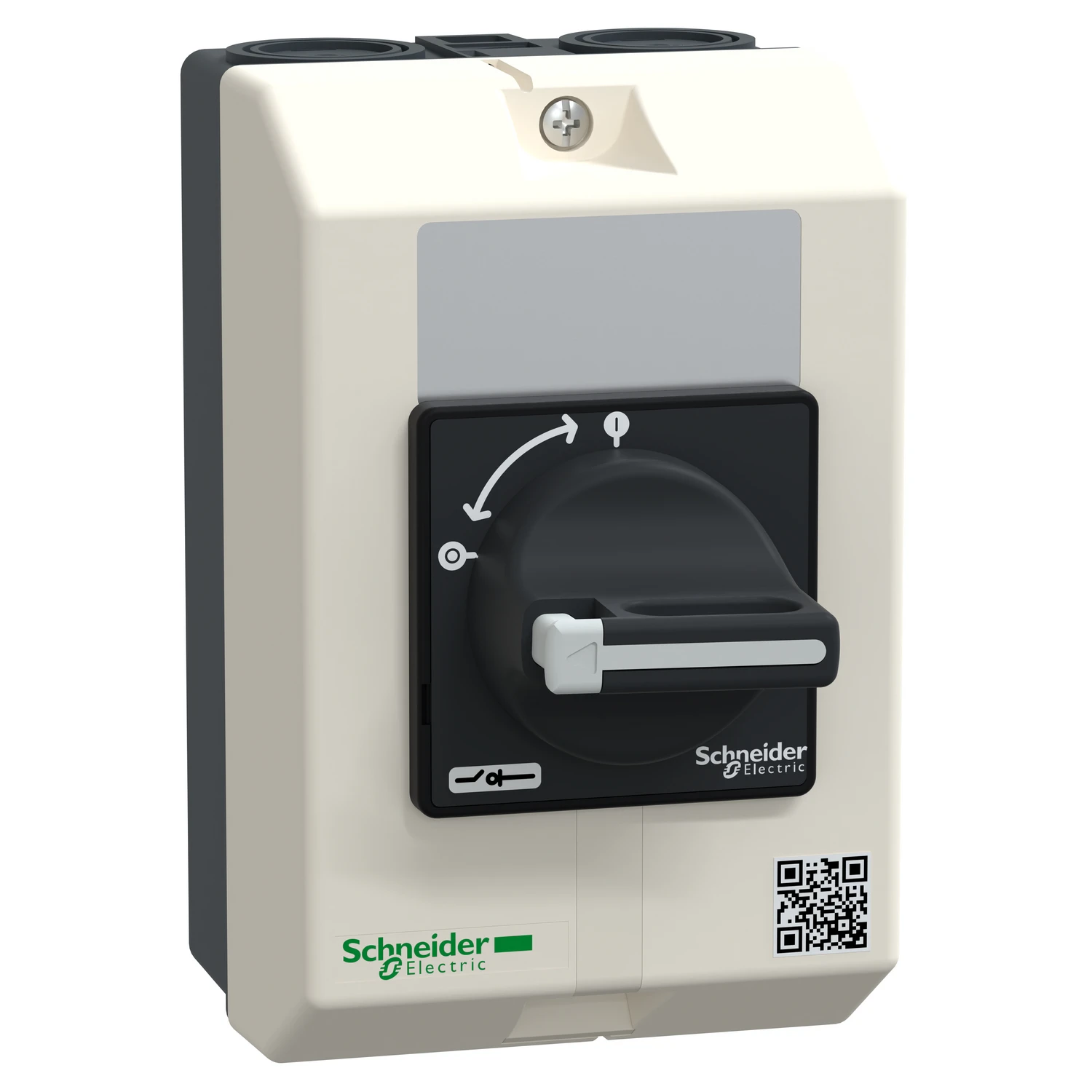

Schneider Electric TeSys Vario enclosed
£63.76 Incl. VAT
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25A 690V, for main switching in motor applications AC-23 up to 11kW@400V. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 25A 690V, for main switching in motor applications AC-23 up to 11kW@400V. · · Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Rated short-time withstand current lcw 0.384 kA Number of auxiliary contacts as change-over contact 0 Number of switches 1 Conditioned rated short-circuit current Iq 10 kA Rated permanent current Iu 25 A Rated operation power at AC-3, 400 V 7.5 kW Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-23, 400 V 11 kW Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 32 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 21.8 A Rated operating voltage 0 – 690 V Suitable for front mounting centre No Version as reversing switch No Motor drive optional No Voltage release optional No Interlockable Yes Suitable for distribution board installation No Suitable for intermediate mounting No Version as main switch Yes Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No · Technical Data Sheet – Click to Download
