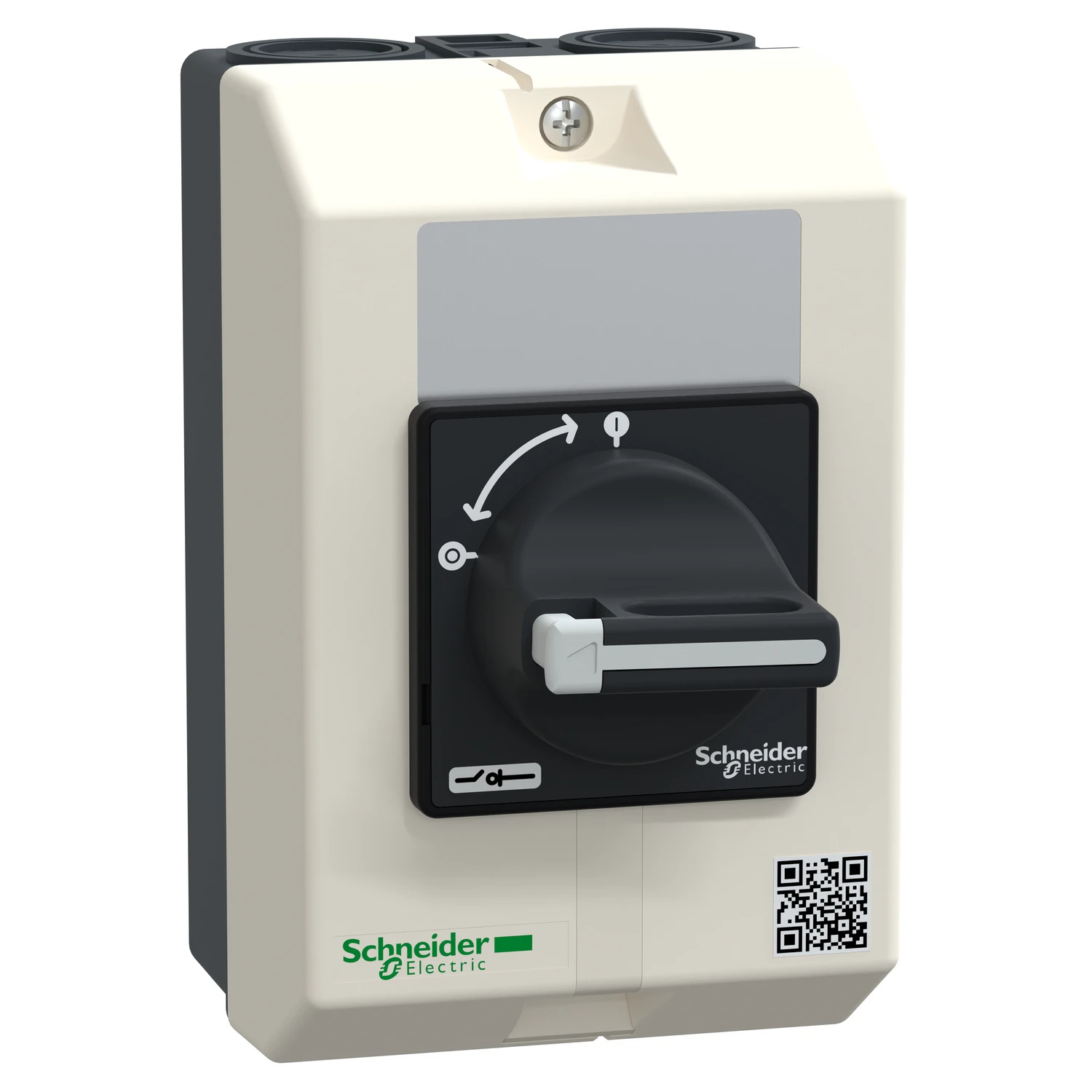

Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed
Schneider Electric TeSys Vario enclosed - Image 2

Schneider Electric TeSys Vario enclosed

£83.66 Incl. VAT

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main switching in motor applications AC-23 up to 15kW@400V. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V2 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main switching in motor applications AC-23 up to 15kW@400V. · · Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V2 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VBF2GE Category: Brand: Product Code: 2500249904

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 10 kA Rated permanent current Iu 32 A Number of poles 3 Rated operation power at AC-3, 400 V 11 kW Rated operation power at AC-23, 400 V 15 kW Switching power at 400 V – kW Rated permanent current at AC-23, 400 V 29 A Rated permanent current at AC-21, 400 V 40 A Number of switches 1 Rated short-time withstand current lcw 0.48 kA Max. rated operation voltage Ue AC 690 V Number of auxiliary contacts as change-over contact 0 Rated operating voltage 0 – 690 V Version as safety switch No Version as emergency stop installation No Version as reversing switch No Motor drive optional No Suitable for intermediate mounting No Interlockable Yes Version as main switch Yes Version as maintenance-/service switch Yes Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Voltage release optional No · Technical Data Sheet – Click to Download
