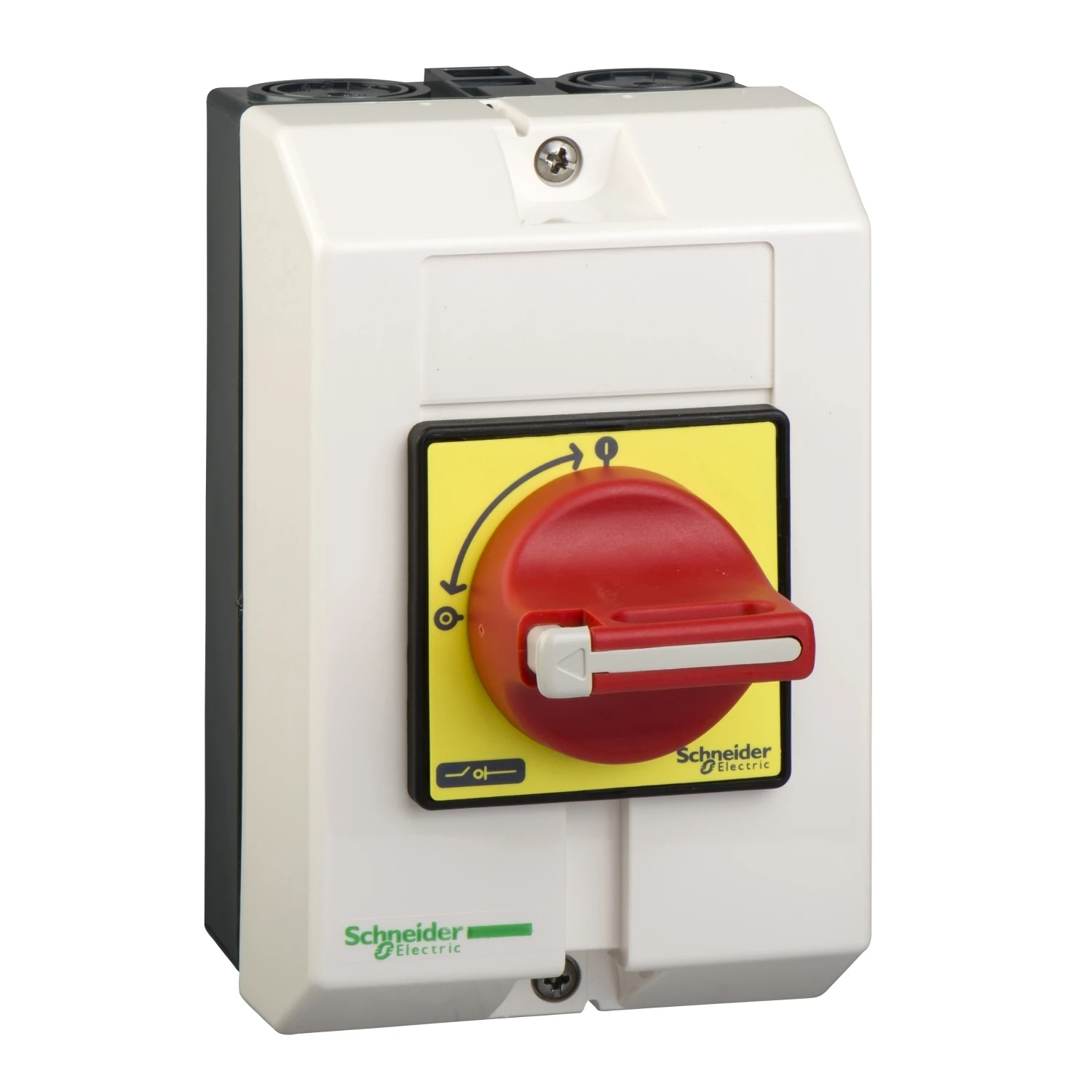

Schneider Electric Tesys Vario Enclosed Emergency Stop Switch Disconnector 10A
£55.78 Incl. VAT
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications AC-23 up to 4kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V02 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications AC-23 up to 4kW@400V. · · Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V02 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · Depth: 131mm
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of poles 3 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 3 kW Number of auxiliary contacts as normally closed contact 0 Rated permanent current Iu 10 A Conditioned rated short-circuit current Iq 10 kA Number of auxiliary contacts as change-over contact 0 Rated short-time withstand current lcw 0.3 kA Number of switches 1 Switching power at 400 V – kW Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 10 A Rated operation power at AC-23, 400 V 4 kW Rated permanent current at AC-23, 400 V 8.1 A Rated operating voltage 0 – 690 V Interlockable Yes Suitable for intermediate mounting No Suitable for front mounting centre No Suitable for front mounting 4-hole Yes Version as reversing switch No Motor drive optional No Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for distribution board installation No Version as maintenance-/service switch No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188406
