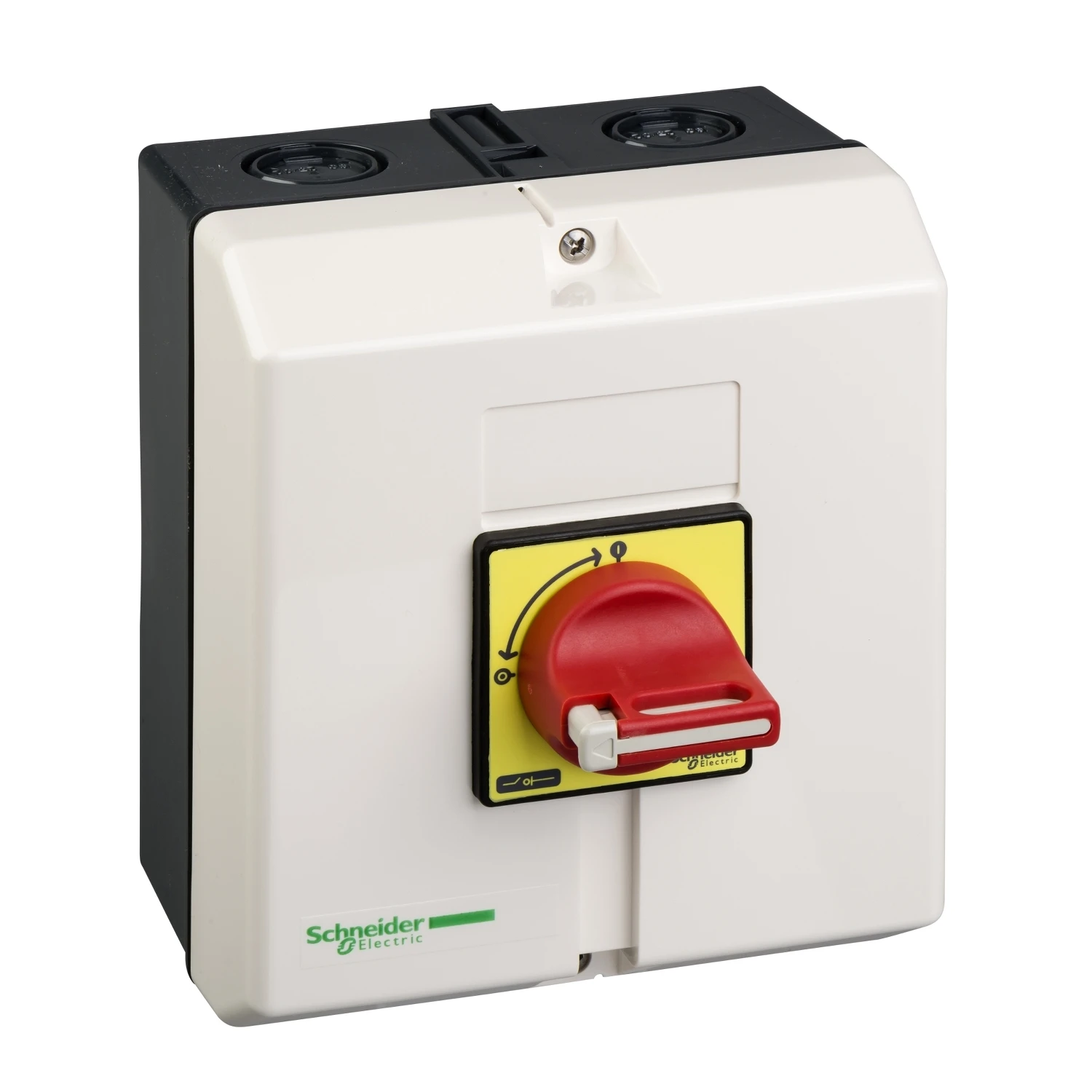

Schneider Electric Tesys Vario Enclosed Emergency Stop Switch Disconnector 50A
Schneider Electric Tesys Vario Enclosed Emergency Stop Switch Disconnector 50A
Schneider Electric Tesys Vario Enclosed Emergency Stop Switch Disconnector 50A - Image 2

Schneider Electric Tesys Vario Enclosed Emergency Stop Switch Disconnector 50A

£130.16 Incl. VAT

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 50A 690V, for main and emergency stop switching in motor applications AC-23 up to 22kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V3 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 50A 690V, for main and emergency stop switching in motor applications AC-23 up to 22kW@400V. · · Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V3 with 3 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · Depth: 152mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCF3GE Category: Brand: Product Code: 2500134838

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated short-time withstand current lcw 0.76 kA Number of switches 1.00 Rated operation power at AC-23, 400 V 22.00 kW Switching power at 400 V 30.00 kW Rated permanent current at AC-21, 400 V 50.00 A Max. rated operation voltage Ue AC 690.00 V Number of poles 3.00 Conditioned rated short-circuit current Iq 10.00 kA Rated operation power at AC-3, 400 V 18.50 kW Rated permanent current Iu 50.00 A Number of auxiliary contacts as change-over contact 0.00 Rated permanent current at AC-23, 400 V 41.50 A Rated operating voltage 0.00 – 690.00 V Version as emergency stop installation Yes Motor drive integrated No Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting centre No Suitable for front mounting 4-hole Yes Interlockable Yes · Technical Data Sheet – Click to Download
