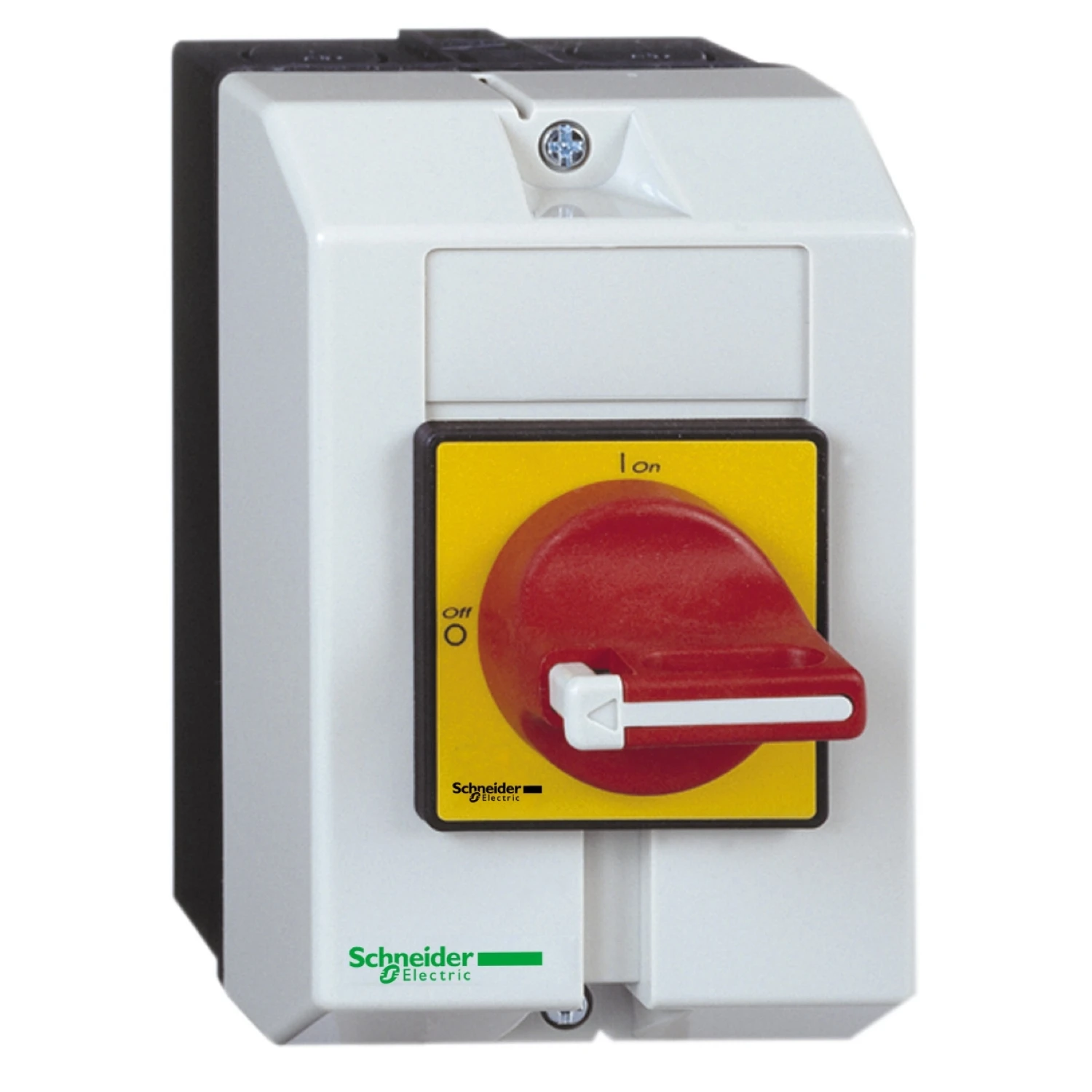

Schneider Electric Tesys Vario Enclosed Switch Disconnector 16A
Schneider Electric Tesys Vario Enclosed Switch Disconnector 16A
Schneider Electric Tesys Vario Enclosed Switch Disconnector 16A - Image 2

Schneider Electric Tesys Vario Enclosed Switch Disconnector 16A

£58.44 Incl. VAT

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main and emergency stop switching in motor applications AC-23 up to 5.5kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main and emergency stop switching in motor applications AC-23 up to 5.5kW@400V. · · Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · Depth: 131mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCF01GE Category: Brand: Product Code: 2500061508

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 3 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 4 kW Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 10 kA Rated short-time withstand current lcw 0.3 kA Rated permanent current Iu 16 A Number of switches 1 Number of auxiliary contacts as change-over contact 0 Switching power at 400 V – kW Rated operation power at AC-23, 400 V 5.5 kW Rated permanent current at AC-21, 400 V 16 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 11 A Rated operating voltage 0 – 690 V Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for distribution board installation No Version as maintenance-/service switch No Interlockable Yes Suitable for intermediate mounting No Suitable for front mounting centre No Suitable for front mounting 4-hole Yes Voltage release optional No Version as reversing switch No Motor drive optional No · Technical Data Sheet – Click to Download
